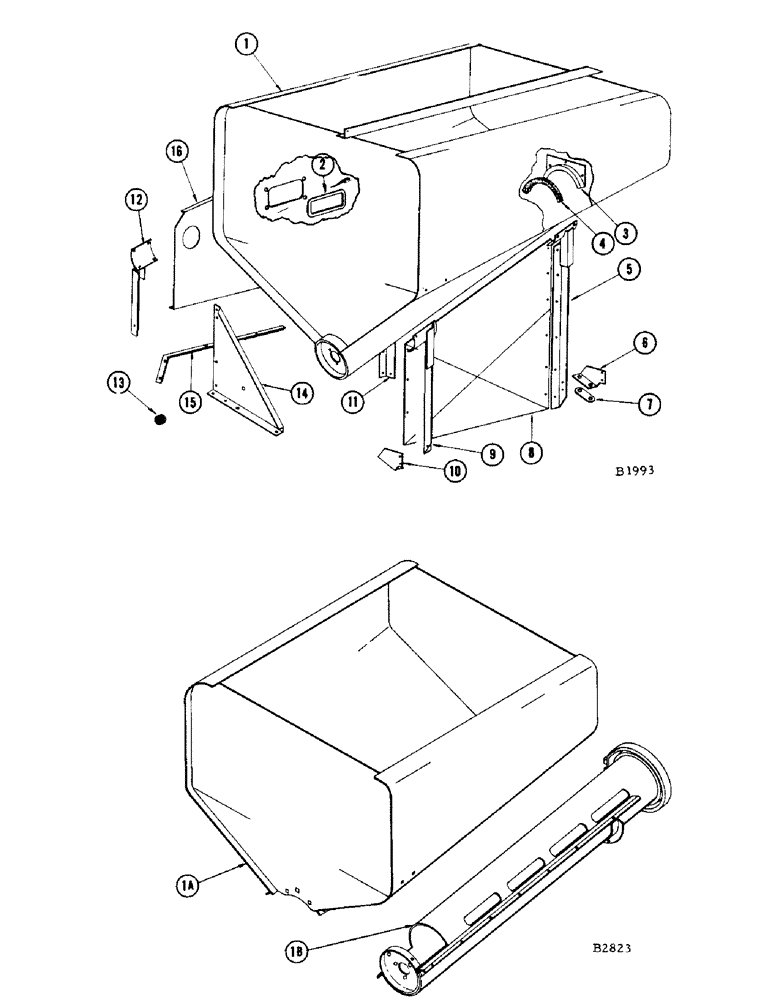

Запчасти Case IH 960 (140) - GRAIN BIN, 960 SPECIAL COMBINE (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
F84491
GRAIN BIN - with auger (Replaced by F94425 when stocks are exhausted)
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) and lockwasher (92-4)
4шт.
BOLT - 1/4" x 5/8" N.C. rhd. sq. nk. (11-410) Nut (25-104) and lockwasher (92-4)
6шт.
BOLT - 5/16" x 5/8" N.C. rhd. sq. nk. (11-510) and nut (25-105) lockwasher (92-5)
2шт.
WASHER - 1/4" flat (195-18)
4шт.
1a
F94425
GRAIN BIN - (Replaces F84491 when stocks are exh.)
1шт.
1b
F94428
GRAIN BIN - auger tube (For ref. 1A) 18.44" L
1шт.
2
F8077
DOOR - access
1шт.
3
F9176
RETAINER - seal
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) and L.W. (92-4) Fl. wshr. (95-4)
3шт.
4
F6650
SEAL - felt, for grain bin L.H. head
1шт.
5
F83353
POST - L.H. front
1шт.
BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) Nut (25-106) and lockwasher (92-6)
4шт.
BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Dbl. nut (25-116)
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Dbl. nut (25-118)
1шт.
6
F19505
GUSSET - lower (Chain cylinder drive only)
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) and lockwasher (92-6)
2шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)
2шт.
7
F19506
SPACER - gusset (Chain cylinder drive)
1шт.
8
F20307
SHEET - front, grain bin posts
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) and lockwasher (92-5)
8шт.
BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116 L.W. (92-6)
2шт.
9
F83352
POST - R.H. front
1шт.
BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) and Lockwasher (92-6)
4шт.
BOLT - 3/8" x 1-1/2" N.F. hex. (14-620) Dbl. nut (25-116)
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Dbl. nut (25-118)
1шт.
10
F19504
GUSSET - lower (Chain cylinder drive)
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) and Lockwasher (92-6)
4шт.
11
F82304
POST - L.H. rear
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) and Lockwasher (92-6)
5шт.
12
F82302
POST - R.H. rear
1шт.
BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) and Nut (25-106) Lockwasher (92-6)
7шт.
13
F9629
GROMMET - for electrical wire harness
1шт.
14
F18218
GUSSET - ref. 12 post
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) and Lockwasher (92-6)
4шт.
15
F20077
BRACE - rear sheet
1шт.
BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) and Nut (25-105) Lockwasher (92-5)
2шт.
16
F20076
SHEET - rear, grain bin posts
1шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115) and Lockwasher (92-5)
4шт.
Выбрано товаров: 40
