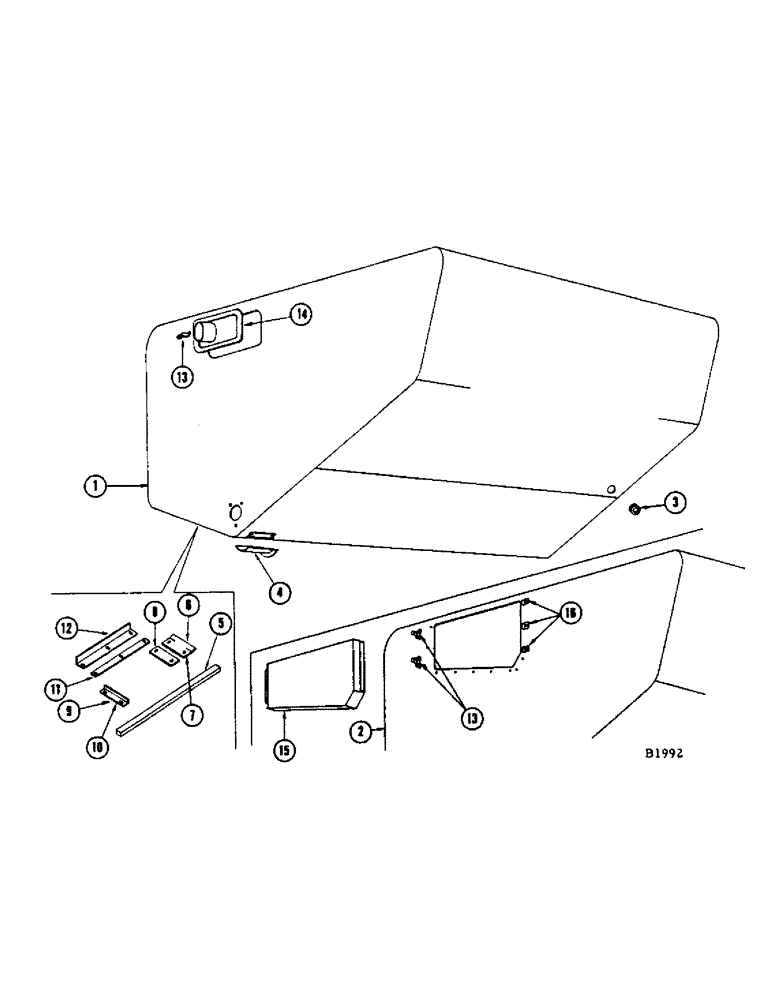

Запчасти Case IH 960 (138) - GRAIN BIN - GRAIN COMBINES (80) - CROP STORAGE/UNLOADING

1

F84484

GRAIN BIN - before #8358001

1шт.

2

F94257

GRAIN BIN - #8358001 and after

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114)

2шт.

LOCKWASHER - 1/4" (92-4)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

3шт.

LOCKWASHER - 3/8" (92-6)

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116)

6шт.

LOCKWASHER - 3/8" (92-6)

6шт.

3

F9629

GROMMET - for electric wire harness

2шт.

4

F9188

DOOR

- clean out, grain bin auger

1шт.

5

F17563

SEAL - elevator to grain bin

2шт.

6

F20162

RETAINER - frontseal, grain elevator (Before #8358001)

1шт.

7

F22787

PLOW BOLT

RETAINER - frontseal, grain elevator (#8358001 and after)

1шт.

BOLT - 1/4" x 1" NC rhd. sq. nk. (11-416) Nut (25-104)

2шт.

LOCKWASHER - 1/4" (92-4)

2шт.

8

F22788

PLOW BOLT

CLOSURE - front, grain bin to elevator (Replaces F20163 when stock is exh.)

1шт.

F20163

CLOSURE - front, grain bin to elevator (Replaced by F22788 when stock is exh.)

1шт.

9

F20165

RETAINER - upper seal (Before #8358001)

1шт.

10

F22789

PLOW BOLT

RETAINER - upper seal (#8358001 and after)

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Nut (25-104)

2шт.

LOCKWASHER - 1/4" (92-4)

2шт.

11

F20189

CLOSURE - side, grain, Serial Range: bin-elevator

2шт.

12

F20164

RETAINER - side seals

2шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Nut (25-104)

6шт.

LOCKWASHER - 1/4" (92-4)

6шт.

13

F7738

CLIP - door (Replaced by F86525 when exh.)

1шт.

RIVET - 3/16" x 8/16" split steel (Use with F7738)

1шт.

F86525

CLIP

- door (Replaces F7738 when exhausted)

1шт.

14

F84540

DOOR - inspection (Before #8358001)

1шт.

15

F94262

DOOR - inspection (#8358001 and after)

1шт.

16

F20976

CLIP

HINGE - clip (#8358001 and after)

3шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) Nut (25-114)

3шт.

LOCKWASHER - 1/4" SAE std.

3шт.
