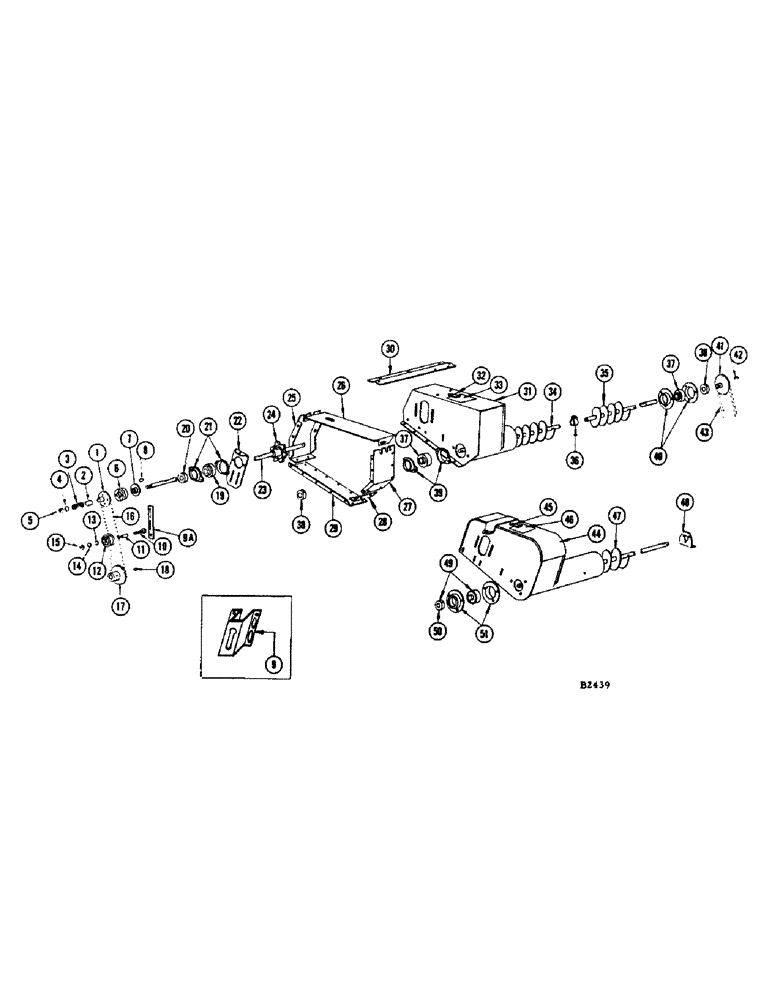

Запчасти Case IH 960 (134) - GRAIN BIN DISTRIBUTION AUGER (80) - CROP STORAGE/UNLOADING

1

F79464

SPROCKET ASSY.

SPROCKET - (30T) drive

1шт.

2

F11042

BEARING

1шт.

3

O1090CH

SPRING

- (Before #8358001)

1шт.

F22727

SPRING

- (#8358001 and after)

1шт.

4

A26376

WASHER

- (Before #8358001)

1шт.

F22997

SPRING RETAINER - (#8358001 and after)

1шт.

5

131-37

LOCK NUT,3/4"-16

NUT - 3/4-16 elastic stop

1шт.

6

T16665

RING - jump clutch

2шт.

7

143CS

PLATE

HUB - jump clutch (Exh. then use F89322)

1шт.

F89322

SCRAPER

HUB - jump clutch (Replaces 143CS when exh.)

1шт.

8

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

9

F22736

PLOW BOLT

BRACKET - idler (#8358001 and after)

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut, flat washer and L.W.

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

11-836

BOLT

- 1/2" x 2-1/4" rhd. sq. nk.

1шт.

195-33

WASHER,1/2"

- flat 1/2"

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2"

1шт.

9a

F21903

CARRIAGE BOLT

BRACKET - idler (Before #8358001)

1шт.

11-614

BOLT

- 3/8" x 7/8" rhd. sq. nk., nut and L.W.

2шт.

O2287CS

WASHER

2шт.

10

18-660

BOLT - 3/8" x 3-3/4" #3 N.C. plow

1шт.

11

O201HT

SPACER - (Before #8358001)

1шт.

12

O3511CS

PULLEY

IDLER

1шт.

13

195-25

WASHER,3/8"

- flat 3/8"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

16

N4034

X

CHAIN - leveling auger drive (Grain combine) (See chain page)

1шт.

N4843P

CHAIN - leveling auger drive (960 special) (See chain page)

1шт.

17

F79467

SPROCKET ASSY.

SPROCKET - (30T) drive, driven

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

18

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

19

F94134

HOUSING ASSY.

BEARING

2шт.

20

F52076

COLLAR

1шт.

21

F9417

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

4шт.

22

F17592

HOLDER - bearing (Before #8258001)

2шт.

F22820

HOLDER - bearing (#8358001 and after)

2шт.

23

F21610

SHAFT - upper elevator (Before #8358001)

1шт.

F22726

PLOW BOLT

SHAFT - upper elevator (#8358001 and after)

1шт.

24

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

25

F20156

SHIELD - back (Grain combine) (Before #8358001)

1шт.

F22774

PLOW BOLT

BRACKET - rear support (#8358001 and after)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk., nut and L.W.

3шт.

26

F20159

SHIELD - top (Grain combine) (Before #8358001)

1шт.

14-46

BOLT - 1/4" x 3/8" N.F. hex., nut and L.W.

1шт.

27

F20155

SHIELD - front (Grain combine) (Before #8358001)

1шт.

F22773

PLOW BOLT

BRACKET - front support (#8358001 and after)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

8шт.

28

F20158

CLOSURE - bottom (Grain combine) (Replaced by F22776 when stocks are exhausted)

1шт.

F22776

PLOW BOLT

CLOSURE - bottom (Grain combine) (Replaces F20158 when stocks are exhausted)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.

29

F20157

SHIELD - bottom (Grain combine) (Before #8358001)

1шт.

F22775

PLOW BOLT

BRACKET - lower support (#8358001 and after)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

12шт.

30

F20153

BAR - adjusting (Grain combine) (Before #8358001)

1шт.

F22802

BAR - adjusting (Grain combine) (#8358001 and after)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

114-124

BOLT - 5/16" x 3-1/2" N.F. hex., dbl. nut

2шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

31

F84488

HEAD - upper (Grain combine) (Before #8358001)

1шт.

F94246

HEAD - upper (Grain combine) (#8358001 and after)

1шт.

32

F7738

CLIP - door (Replaced by F86525 when stock exh.)

1шт.

151-196

RIVET - 3/16" x 8/16" steel split (Use with F7738)

1шт.

F86525

CLIP

- door (Replaces F7738 when exhausted)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

5шт.

195-18

WASHER,1/4"

- flat 1/4"

3шт.

33

F20546

DOOR - upper head

1шт.

34

F84489

AUGER - distribution (Grain combine) (Before #8358001)

1шт.

F94244

AUGER - distribution (Grain combine) (#8358001 and after)

1шт.

35

F82889

AUGER - adjustable section (Grain combine) Before #8311400

1шт.

F85790

AUGER - adjustable section (Grain combine) #8311400 and after (Replaces F84936 when stocks are exh.)

1шт.

F84936

AUGER - adjustable section (Grain combine) #8311400 and after (Replaced by F85790 when stocks are exh.)

1шт.

36

F11437

CLAMP - adjustable auger section (Grain combine)

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

37

F94134

HOUSING ASSY.

BEARING

2шт.

38

F52076

COLLAR

1шт.

39

F9417

FLANGE

- bearing, R.H. end

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

2шт.

40

B18282

FLANGE

- bearing, L.H. end

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

F84909

SPROCKET ASSY.

SPROCKET - 36T (#8311400 and after)

1шт.

41

F84862

SPROCKET - 18T (Before #8311400)

1шт.

42

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

43

F21755

X

CHAIN - grain elevator drive (Grain comb - before #8311400)

1шт.

F84937

CHAIN - grain elevator drive (Grain comb. - #8311400 & after)

1шт.

F21849

X

CHAIN - grain elevator drive (960 special - before #8311400)

1шт.

F84943

CHAIN - grain elevator drive (960 special - #8311400 and after)

1шт.

44

F84524

HEAD - upper (960 special) Before #8358001

1шт.

F94245

HEAD - upper (960 special) #8358001 and after

1шт.

45

F86525

CLIP

- door

1шт.

151-123

RIVET - 3/16" x 4/16" semi tubular

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk., nut and L.W.

3шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk., nut and L.W.

4шт.

113-106

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5, Full Thd

Hex, 5/16"-18 x 2-1/2", G5, Full Thd, Dbl. nut

2шт.

195-21

WASHER,5/16"

- flat 5/16"

9шт.

46

F20546

DOOR - upper head

1шт.

47

F84525

AUGER - distribution (960 special) Before #8358001

1шт.

F94243

AUGER - distribution (960 special) #8358001 and after

1шт.

48

F21759

PLATE - bearing, L.H. end (960 special) Before #8311400

1шт.

F22259

PLATE - bearing, L.H. end (960 special) #8311400 thru #8358000

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

49

F94134

HOUSING ASSY.

BEARING

2шт.

51

B18282

FLANGE

- bearing

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

6шт.
