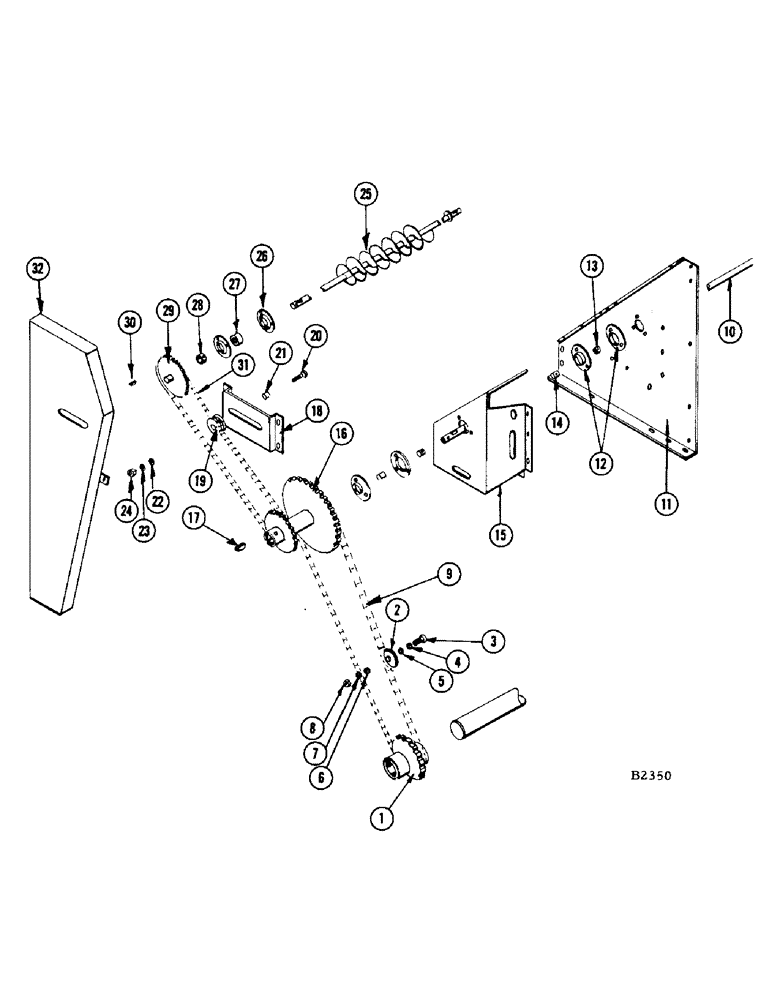

Запчасти Case IH 960 (132) - GRAIN ELEVATOR DRIVE, 960 SPECIAL COMBINE, BEFORE NUMBER 8311400 (80) - CROP STORAGE/UNLOADING

1

F84377

SPROCKET - grain elevator drive

1шт.

2

F7935

SPROCKET ASSY.

IDLER

1шт.

3

12-1040

BOLT - 5/8" x 2-1/2" rhd. sq. nk. short

1шт.

4

O2287CS

WASHER - square hole

1шт.

5

F10566

SPACER - tightener sprocket

1шт.

6

195-41

WASHER,5/8"

- flat 5/8"

1шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

25-1010

NUT,5/8"-11, G5

1шт.

9

N3412P

CHAIN - elevator jackshaft drive (NSS - see chain page)

1шт.

10

F21539

JACKSHAFT - elevator drive

1шт.

11

F21537

GUSSET - L.H. rear

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

7шт.

12

B18282

FLANGE

- bearing

4шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk., nut L.W.

6шт.

13

F94134

HOUSING ASSY.

BEARING - jackshaft

2шт.

14

F52076

COLLAR

1шт.

15

F21536

BRACKET - bearing support

1шт.

16

F84354

SPROCKET - jackshaft drive, driven (10T and 35T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

18

F21529

BRACKET - tightener

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

19

O3511CS

PULLEY

- idler

1шт.

20

11-852

BOLT - 1/2" x 3-1/4" rhd. sq. nk.

1шт.

195-45

WASHER,3/4"

1шт.

21

11799K

SPACER - idler pulley

1шт.

T30946

BUSHING

SPACER

1шт.

22

195-33

WASHER,1/2"

- flat 1/2"

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

25

F84525

AUGER - leveling

1шт.

26

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

27

F90306

BEARING ASSY

BEARING - L.H. end, leveling auger

1шт.

28

O4233CS

COLLAR

1шт.

29

F84862

SPROCKET - (18T)

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

30

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

31

F21849

X

CHAIN - grain bin leveling auger (NSS - see chain page)

1шт.

32

F84536

SHIELD - drive

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

3шт.
