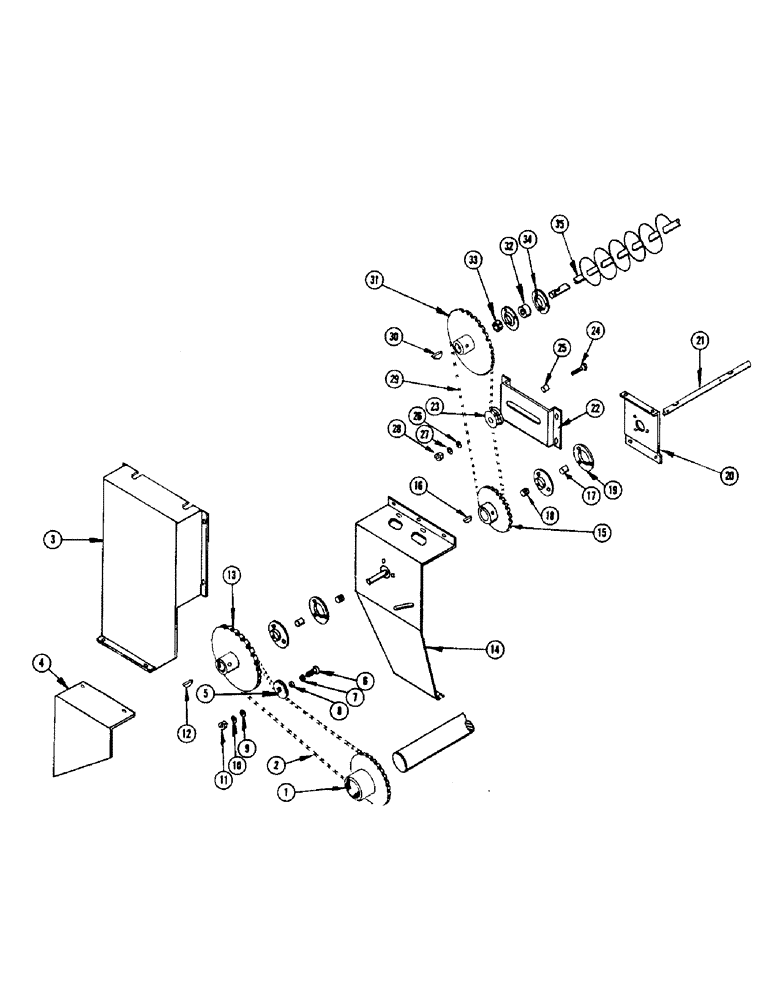

Запчасти Case IH 960 (128) - GRAIN ELEVATOR DRIVE, GRAIN COMBINE, BEFORE NUMBER 8311400 (80) - CROP STORAGE/UNLOADING

1

F84377

SPROCKET - grain elevator drive

1шт.

2

N3412

X

CHAIN - grain elevator drive (NSS - see chain page)

1шт.

3

F84535

SHIELD - grain bin jackshaft chain, upper

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

6шт.

4

F21694

SHIELD - grain bin jackshaft chain, lower

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

2шт.

5

F7935

SPROCKET ASSY.

SPROCKET - tightener

1шт.

6

12-1040

BOLT - 5/8" x 2-1/2" rhd. sq. nk.

1шт.

7

O2287CS

WASHER - square hole

1шт.

8

V13384

SPACER - tightener sprocket

1шт.

9

195-41

WASHER,5/8"

- flat 5/8"

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

25-1010

NUT,5/8"-11, G5

1шт.

12

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

13

F84860

SPROCKET - (35T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

14

F84876

BRACKET - bearing

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex., nut and L.W.

3шт.

15

F84861

SPROCKET - (10T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

16

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

17

F90306

BEARING ASSY

BEARING - jackshaft

2шт.

18

O4233CS

COLLAR

1шт.

19

B18282

FLANGE

- bearing

4шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk., nut and L.W.

6шт.

20

F21524

BRACKET - bearing

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex., nut and L.W.

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

21

F22156

SHAFT

1шт.

22

F21529

BRACKET - tightener

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

23

O3511CS

PULLEY

- idler

1шт.

24

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 1/2" x 3" N.F. hex.

1шт.

195-33

WASHER,1/2"

- flat 1/2"

1шт.

25

O2287CS

WASHER - square hole

1шт.

26

195-33

WASHER,1/2"

- flat 1/2"

1шт.

27

92-8

LOCK WASHER,1/2"

1шт.

28

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

29

F21755

X

CHAIn - grain bin leveling auger (NSS - see chain page)

1шт.

30

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

31

F84862

SPROCKET - (18T)

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

32

F94134

HOUSING ASSY.

BEARING - L.H. end, leveling auger

1шт.

33

F52076

COLLAR

1шт.

34

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

35

F84489

AUGER - leveling

1шт.
