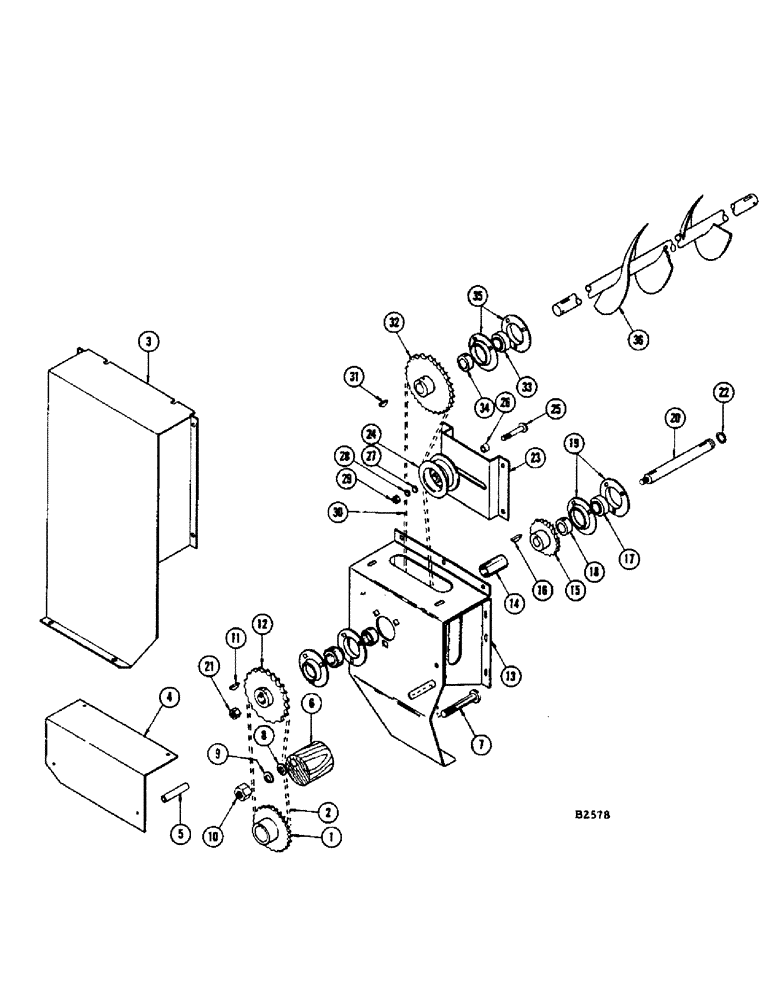

Запчасти Case IH 960 (126) - GRAIN ELEVATOR DRIVE, GRAIN COMBINE, NUMBER 8311400 AND AFTER (80) - CROP STORAGE/UNLOADING

1

F84377

SPROCKET - (26T) drive, grain elevator, on beater shaft

1шт.

2

N3412

X

CHAIN - grain elevator drive (NSS - see chain page)

1шт.

3

F84535

SHIELD - upper grain bin jackshaft chain

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) Nut and L.W.

8шт.

4

F22202

SHIELD - lower, grain bin jackshaft chain

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114)

2шт.

5

F20190

SPACER,1/4" Pipe x 2 1/2"

- lower bracket

2шт.

BOLT - 1/4" x 3" N.F. hex. (14-448) Nut (25-114)

2шт.

6

F4350

BLOCK

IDLER - (Wood)

1шт.

7

11-1056

BOLT - 5/8" x 3-1/2" rhd. sq. nk. Short NK, 5/8"-11 x 3 1/2", G2

1шт.

8

195-41

WASHER,5/8"

- flat 5/8"

1шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

25-1010

NUT,5/8"-11, G5

1шт.

11

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 12 sprocket #A, 1/4" x 7/8"

1шт.

12

F84900

SPROCKET - (35T) jackshaft drive, driven

1шт.

13

F84898

BRACKET - jackshaft bearings

1шт.

BOLT - 5/16" x 1/2" N.F. hex. (14-58) Nut (25-115)

9шт.

LOCKWASHER - 5/16" (92-5) Fl. wshr. (195-21)

9шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) L.W. (92-6) and Fl. wshr. (195-25)

2шт.

14

F22195

SPACER - jackshaft

1шт.

15

F84899

SPROCKET - (20T) jackshaft, leveling auger drive

1шт.

16

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 15 sprocket #A, 1/4" x 7/8"

1шт.

17

F90306

BEARING ASSY

BEARING - jackshaft

2шт.

18

O4233CS

COLLAR

1шт.

19

B18282

FLANGE

- bearing

4шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) Nut (25-105)

6шт.

20

F22194

JACKSHAFT - grain elevator drive

1шт.

21

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

LOCKWASHER - 1/2" (92-8) Fl. washer (95-8)

1шт.

22

F62205

RING, SNAP

SNAP RING - jackshaft

1шт.

23

F21529

BRACKET - tightener

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

4шт.

24

O3511CS

PULLEY

- idler

1шт.

25

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" rhd. sq. nk.

1шт.

26

O2287CS

WASHER - sq. hole

1шт.

27

195-33

WASHER,1/2"

- flat 1/2"

1шт.

28

92-8

LOCK WASHER,1/2"

1шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

30

F84937

CHAIN - grain bin leveling auger (NSS - see chain page)

1шт.

31

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 32 sprocket #A, 1/4" x 7/8"

1шт.

32

F84909

SPROCKET ASSY.

SPROCKET - (36T) driven, leveling auger

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

33

F94134

HOUSING ASSY.

BEARING - L.H. end, leveling auger

1шт.

35

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

3шт.

36

F84489

AUGER - leveling grain bin (Before #8358001)

1шт.

F94244

AUGER - leveling grain bin (#8358001 and after)

1шт.
