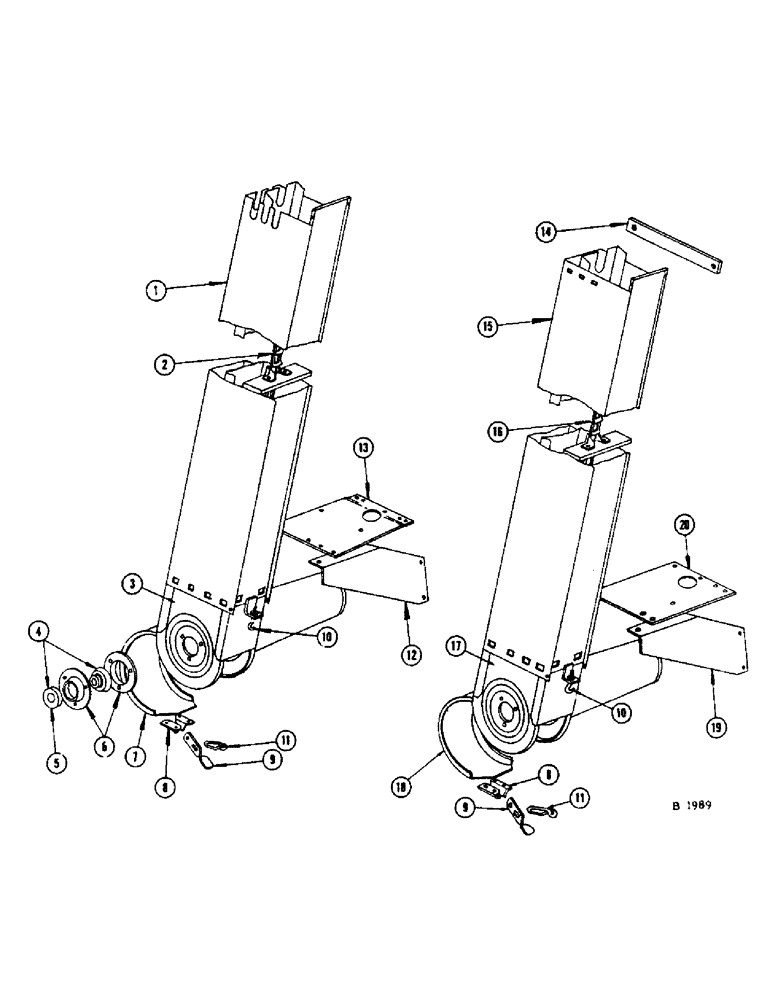

Запчасти Case IH 960 (125A) - GRAIN ELEVATOR NUMBER 835001 AND AFTER (80) - CROP STORAGE/UNLOADING

1

F94263

BODY - elevator (7") (Grain combine w/bin)

1шт.

F94251

BODY - elevator (5") (Bagger combine)

1шт.

2

F94264

CHAIN - conveyor, elevator (Grain combine) (#CA550 - 7 inch flight) See chain page; consists of 30 flights

1шт.

2

F82428

X

CHAIN - conveyor (Bagger) (NSS) #55 w/30 5" flights (See chain page) Use (1) F86423, (1) F86425

1шт.

3

F94221

HEAD - lower (7") (Grain combine)

1шт.

3

F94252

HEAD - lower (5") (Bagger combine)

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk. sh. NC

12шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

25-104

NUT,1/4"-20, G5

12шт.

3

F94252

HEAD - lower (Bagging platform)

1шт.

4

F94134

HOUSING ASSY.

BEARING - R.H. end

1шт.

5

F52076

COLLAR

1шт.

6

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

7

F94226

DOOR - lower head (7") (Grain combine)

1шт.

7

F94283

DOOR - lower head (5") (Bagger combine)

1шт.

8

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

9

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

10

F22742

HOOK

1шт.

11

O316CS

SPRING

1шт.

12

F17695

SUPPORT - lower (Grain combine)

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut and L.W.

3шт.

13

F17696

PLATE - support (Grain combine)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

14

F19347

BRACE - elevator to bin (960 special)

1шт.

15

F94273

BODY - grain elevator (7") (960 special w/bin)

1шт.

16

F94259

CHAIN - conveyor, elevator (960 special) (#CA550-7 inch flight) See chain page; consists of 35 flights

1шт.

17

F94274

HEAD - lower (7") (960 special)

1шт.

1248

SPARE PART

BOLT - 1/4" x 1/2" rhd. sq. nk. sh. NC

12шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

25-104

NUT,1/4"-20, G5

12шт.

18

F94226

DOOR - lower head (7") (960 special)

1шт.

F94227

DOOR - lower head (7") (Perforated)

1шт.

19

F18325

SUPPORT - lower (960 special)

1шт.

20

F20263

PLATE - support (960 special)

1шт.
