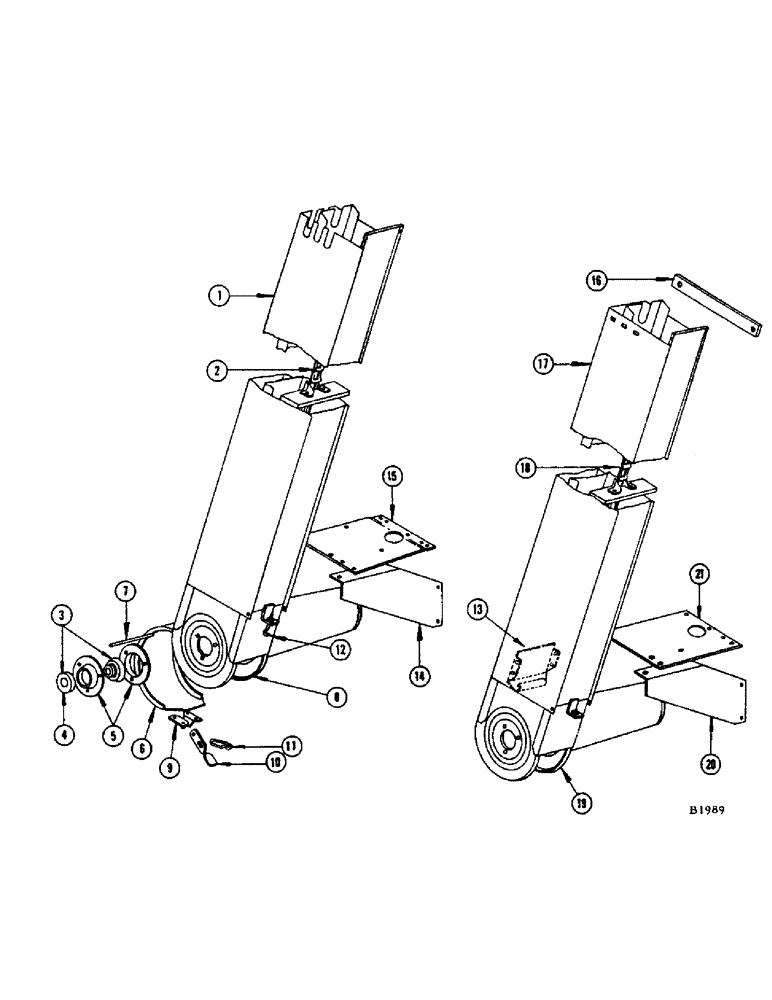

Запчасти Case IH 960 (124) - GRAIN ELEVATOR, BEFORE NUMBER 8358001 (80) - CROP STORAGE/UNLOADING

1

F83228

BODY - elevator (Grain combine w/bin) See F83951

1шт.

F82359

BODY - elevator (Bagging platform)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

2

F83235

CHAIN - conveyor (NSS) #55 (See chain page) Consists of (1) F86423, (1) F86425, (2) F79708 and (3) 235-83

1шт.

F82402

X

CHAIN - conveyor (Baggers) (NSS use (1) F86423, (1) F86425 and (1) 235-83 coupler link)

1шт.

3

F94134

HOUSING ASSY.

BEARING - R.H. end

1шт.

4

F52076

COLLAR

1шт.

5

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

6

F81610

DOOR - (Grain combine w/bin and bagger combine) Hinge pin type (See F85504) (Includes latch handle and bracket)

1шт.

7

O309CS

PIN - hinge, door for F81610 door

1шт.

8

F85504

KIT - repair, lower header (Grain combine w/bin and bagger combines)

13шт.

175-407

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N.F. truss hd., nut and L.W.

13шт.

F83954

DOOR - lower head (See F81610)

1шт.

9

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

10

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

11

O316CS

SPRING - latch handle

1шт.

12

F22742

HOOK - latch

1шт.

13

F40600

EXTENSION - divider

1шт.

175-407

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N.F. truss hd., nut and L.W.

4шт.

14

F17695

SUPPORT - lower (Grain combine)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

15

F17696

PLATE - support (Grain combine)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

16

F19347

BRACE - elevator to bin (960 special)

1шт.

17

F83951

BODY - grain elevator (960 special w/bin) (Before #8334601)

1шт.

F92479

TUBE

BODY - grain elevator (960 special w/bin) #8334601 & after

1шт.

18

F83297

CHAIN - conveyor (960 special w/bin) (NSS) #55 (See chain page) Consists of (1) F96421, (1) F86423 (1) F86425 and (2) F79708

1шт.

19

F85508

KIT - repair, lower head (960 spec. w/bin) Inc. F83954 door and ref. #12, 13, 14, 15 and 16 (Before #8334601)

1шт.

F92480

HEAD - lower (960 special) #8334601 thru #8358000

1шт.

F92483

DOOR

- head (960 special) #8334601 thru #8358000

1шт.

20

F18325

SUPPORT - lower (960 special)

1шт.

21

F20263

PLATE - support (960 special)

1шт.
