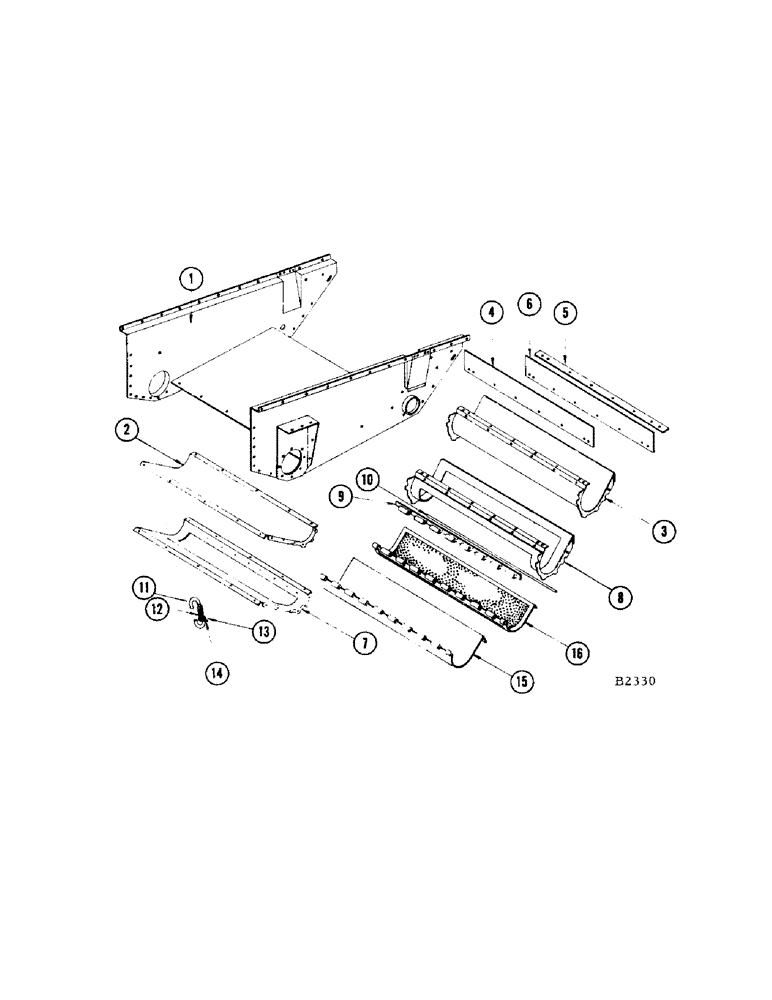

Запчасти Case IH 960 (122) - GRAIN AND TAILINGS AUGER TROUGH (80) - CROP STORAGE/UNLOADING

1

F84478

EXTENSION - side sheet

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

18шт.

2

F16058

TROUGH - grain auger, solid (Grain combine)

1шт.

F92468

TROUGH - grain auger, (960 special)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

10шт.

3

F21455

TROUGH - tailings auger, solid (Grain combine)

1шт.

F92469

TROUGH - tailings auger (960 special)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

10шт.

4

F21446

SEAL - front, tailings auger trough

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., nut and L.W.

7шт.

5

F21447

STRIP - bolting, rear tail trough seal

1шт.

6

F21446

SEAL - rear, tailings auger trough

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., nut and L.W.

9шт.

7

F84309

TROUGH - grain auger, perforated

1шт.

8

F84311

TROUGH - tailings auger, perforated

1шт.

9

F17709

HINGE - bolting, perforated auger troughs

2шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. mach., nut and L.W.

14шт.

10

F17710

ROD - hinge

2шт.

11

F17706

ROD - latch, grain auger trough

3шт.

F22075

ROD - latch, tailings auger trough

3шт.

12

F62245

SPRING

- latch rod

6шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

6шт.

14

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

6шт.

15

F82214

DOOR - grain and tailings auger trough, solid

2шт.

16

F82213

DOOR - grain and tailings auger trough, perforated

2шт.
