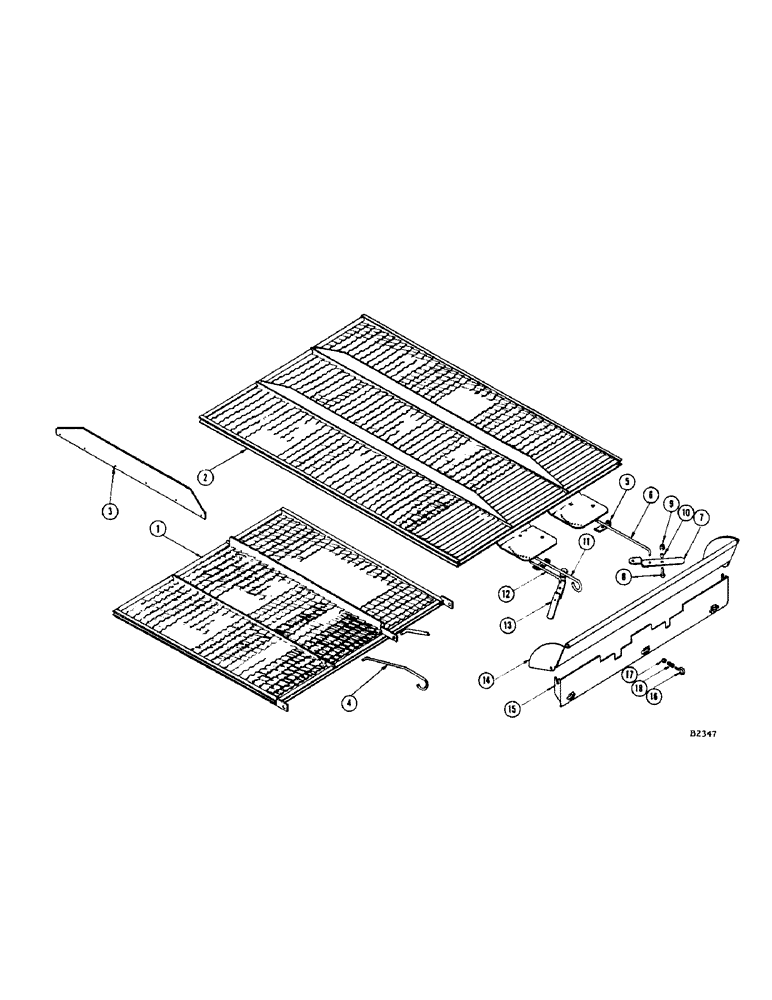

Запчасти Case IH 960 (120) - CHAFFER AND CLEANING SIEVES (74) - CLEANING

1

F84413

CLEANER

SIEVE - cleaning, less adjustments

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. and fl. washer Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

2

F84416

CLEANER

SIEVE - chaffer, less adjustments

1шт.

F21898

BOLT

TAIL BOARD - shoe ("Cloze" chaffer sieve att.)

1шт.

3

F22593

RISER - divider ("Cloze" chaffer sieve att.)

3шт.

4

F22594

ROD - adjusting, lower sieve ("Cloze" chaffer sieve att.)

1шт.

F84598

SIEVE - "Cloze" chaffer attachment

1шт.

5

F8107

CLAMP - adjustment rod, chaffer sieve

2шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

6

F21645

ROD - cleaning sieve

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

7

F21657

LEVER

- adjustment, cleaning sieve

1шт.

8

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

9

131-527

LOCK NUT,5/16"-24

NUT - 5/16" N.F. lock

1шт.

10

F62196

SPACER,1/4" Pipe x 7/16"

1шт.

11

O464CS

ROD - extension, chaffer sieve adjustment

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

12

F21656

ROD - adjusting, chaffer sieve

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

13

F21658

LEVER - adjustment, chaffer sieve

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

131-527

LOCK NUT,5/16"-24

LOCKNUT - 5/16"

1шт.

14

F84418

TAIL GATE - shoe

1шт.

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4" x 1/2" rhd. sq. nk.

2шт.

131-591

LOCKNUT - 1/4"

2шт.

195-525

WASHER,3/8", SAE

2шт.

15

F21672

TAIL BOARD - shoe

1шт.

117-107

BOLT

BOLT - 5/16" x 1-1/2" N.C. sq. hd.

2шт.

131-4

LOCK NUT,5/16"-18, GB

LOCKNUT - 5/16"

2шт.

14

F19960

LATCH

BOLT - latch (Replaces F21477 when stock is exhausted)

3шт.

F21477

BOLT (SPREADER)

BOLT - latch (Replaced by F19960 when stock is exhausted)

3шт.

17

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock

3шт.

18

117EB

SPRING

- latch bolt

3шт.

F81071

SIEVE - (3/16" dia. rd. hole) flax, fixed hole finishing sieves

1шт.

F81072

SIEVE - (5/8" dia. rd. hole) rice, corn, fixed hole finishing sieves

1шт.

F81073

SIEVE - (5/32" dia. rd. hole) fenugreek, flax, millit, lespedeza, fixed hole finishing sieves

1шт.

F81074

SIEVE - (9/32" dia. rd. hole) sugar beets, buck wheat, grain and sorghum, fixed hole finishing sieves

1шт.

F81075

SIEVE - (1/8" x 3/4" slotted hole) buck wheat, crotolaria wheat, rye, vetch, fenugreek, fixed hole finishing sieves

1шт.

F81076

SIEVE - (9/64" triangular hole), fixed hole finishing sieves

1шт.

F81077

SIEVE - 5/64" dia. rd. hole) grasses, timothy, fixed hole finishing sieves

1шт.

F81078

SIEVE - (3/32" dia. rd. hole) alfalfa, clover, grasses, mustard, fixed hole finishing sieves

1шт.

F81079

SIEVE - (1/8" dia. rd. hole) clover, grasses, mustard, fixed hole finishing sieves

1шт.

F81080

SIEVE - (7/32" dia. rd. hole) buck wheat, fixed hole finishing sieves

1шт.

F81081

SIEVE - (3/8" dia. rd. hole) corn, beans, peas, spelt, fixed hole finishing sieves

1шт.

F81082

SIEVE - (1/2" dia. rd. hole) rice, peas, beans, fixed hole finishing sieves

1шт.
