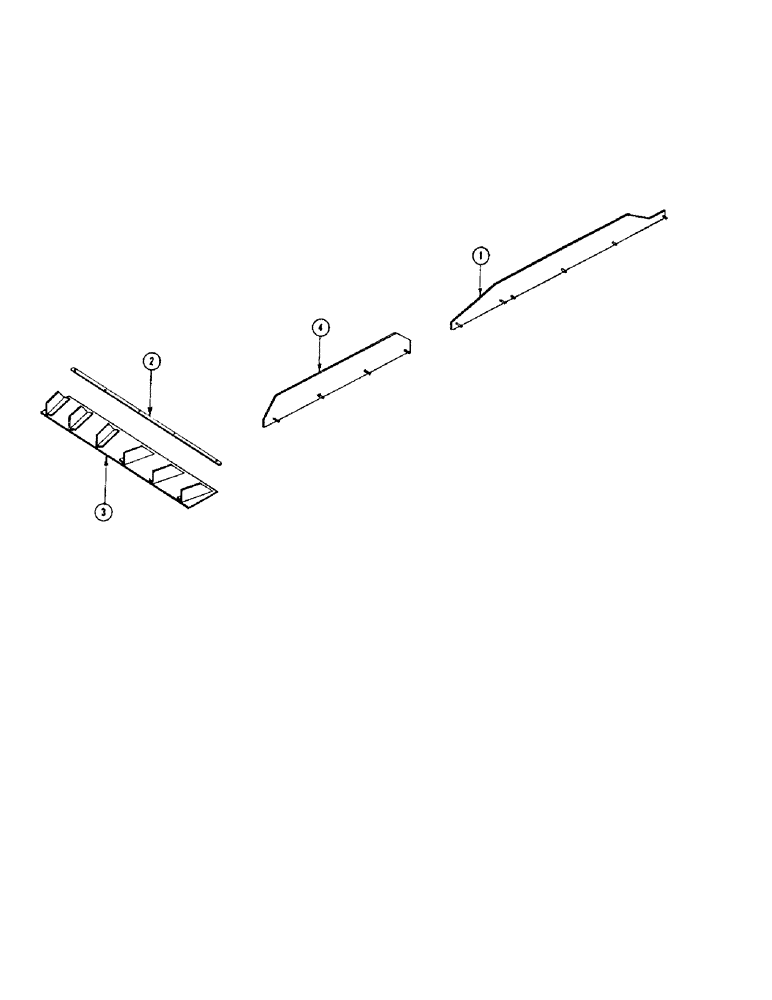

Запчасти Case IH 960 (118) - GRAIN PAN (74) - CLEANING

1

F84320

SHOE - frame angle, R.H.

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

3шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk., nut and L.W.

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

11шт.

2

F84321

FLOOR - rear, grain pan (Corrugated)

1шт.

3

F84325

SHOE - frame angle, L.H.

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

3шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk., nut and L.W.

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

11шт.

4

F84324

FLOOR - front (Corrugated)

1шт.

5

F21478

SEAL

- floor

1шт.

F84443

FLOOR - front (Perforated) (Special)

1шт.

6

F21486

STRIP - bolting, front channel

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., nut and L.W.

7шт.

7

F21484

CHANNEL - front

1шт.

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rhd. mach., nut and L.W.

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

8

F16904

BRACKET - R.H. support

1шт.

F16903

BRACKET - L.H. support

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut and L.W.

4шт.

9

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion

4шт.

10

F22686

ARM

- grain pan swinger (Replaces F80884 when exh.)

2шт.

F80884

ARM

- grain pan swinger (Replaced by F22686 when exh.)

2шт.

11

O770BF

STRAP

CLAMP - strap, swinger arm

4шт.

114-126

BOLT - 5/16" x 1-1/4" N.F. hex., nut and lockwasher

4шт.

12

F81358

BRACKET - R.H. swinger, grain pan

1шт.

F81357

BRACKET - L.H. swinger

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut and L.W.

4шт.

13

F21476

STRIP - bolting, grain pan

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

10шт.

14

F84137M

SHIELD - grain pan (Machy. item) Special

1шт.

15

F18347

STRIP - bolting, grain pan shield (Special)

1шт.
