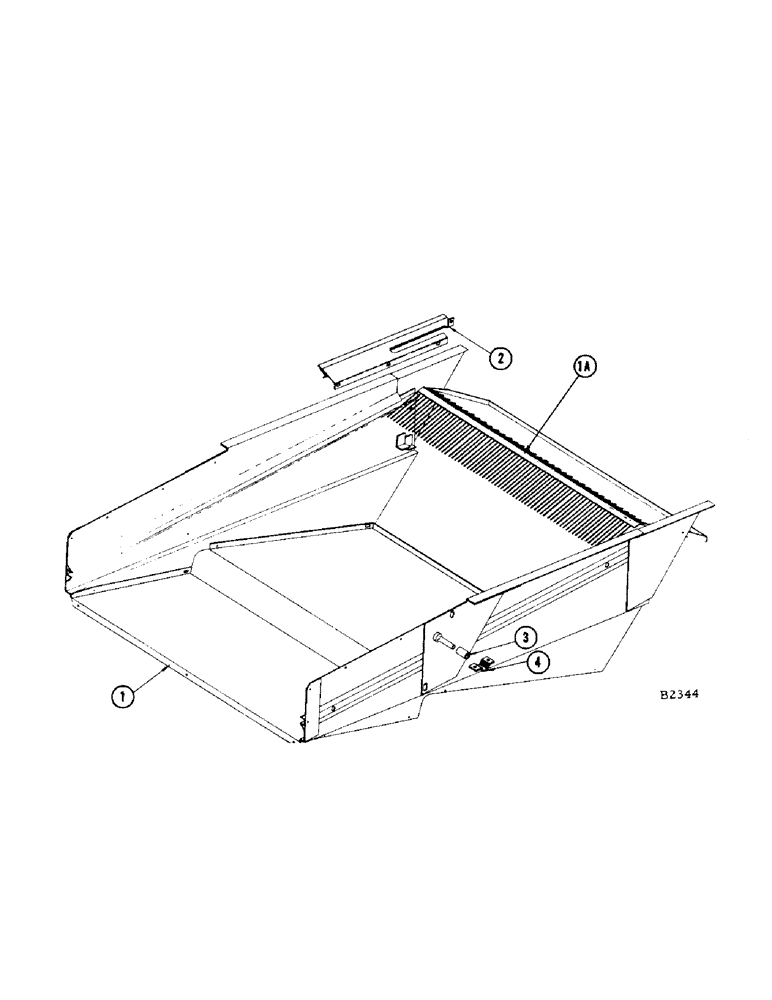

Запчасти Case IH 960 (116[1]) - SHOE (74) - CLEANING

F80887

PITMAN

- shoe drive (Before #8311400 - when stocks are exhausted use F84893)

1шт.

1

F84313

SHOE

1шт.

1a

F84318

TINE - assy.

1шт.

2

F84328

BRACKET

SEAL - L.H. rear

1шт.

F84330

SEAL - R.H. rear

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

L.W. and fl. washer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

131-129

NUT

- Timmerman, 1/4"

2шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

L.W. and fl. washer Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

L.W. and fl. washer Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

F16808

BUSHING

- torsion, shoe stud

2шт.

4

F81359

CLAMP - swinger arm

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

113-105

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.F. hex.

2шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.
