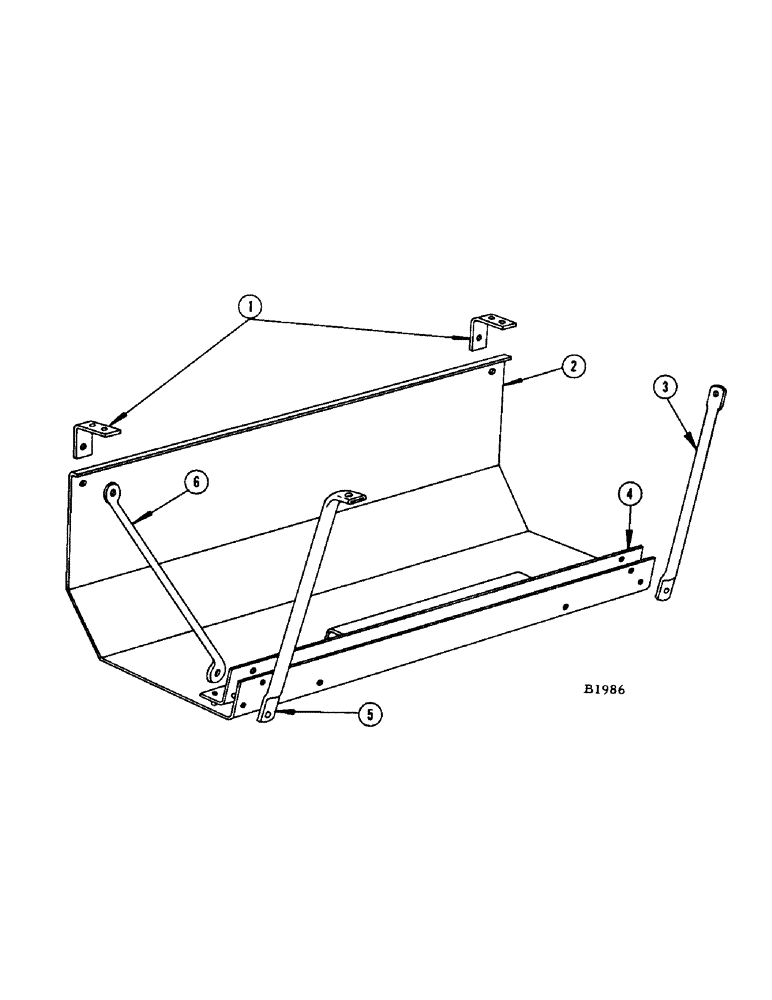

Запчасти Case IH 960 (106) - FAN HOUSING SHIELD, 960 SPECIAL COMBINE (74) - CLEANING

1

F20249

CLIP - bolting, front support

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

4шт.

LOCKWASHER - 5/16" (192-20)

4шт.

2

F20244

SHIELD - fan housing

1шт.

3

F83311

BRACE - R.H. side

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

1шт.

LOCKWASHER - 5/16" (192-20)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123)

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

F83310

BAR - reinforcement

1шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) Nut (25-106)

4шт.

LOCKWASHER - 3/8" (92-6)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

4шт.

LOCKWASHER - 3/8" (92-6)

4шт.

5

F83312

ROD - support, L.H. side

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

1шт.

LOCKWASHER - 5/16" (192-20)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) Nut (129-123)

1шт.

LOCKWASHER - 3/8" (192-21)

1шт.

6

F18096

ROD - support, front

2шт.
