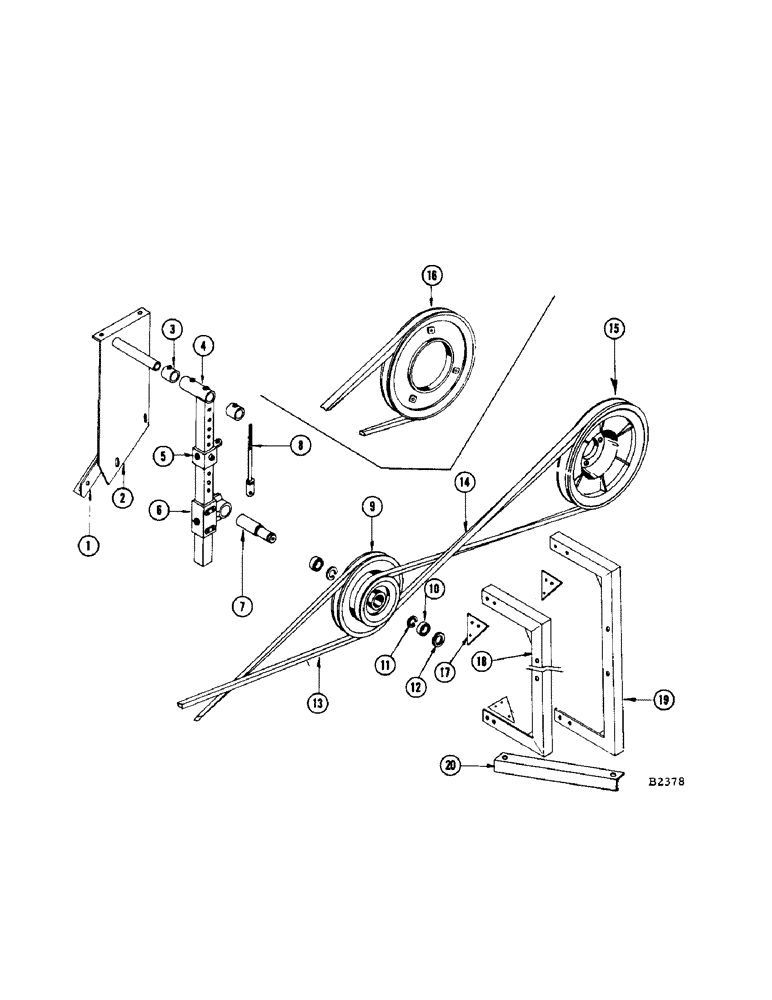

Запчасти Case IH 960 (190) - STRAWCHOPPER CUTTER & SPREADER DRIVE (73) - RESIDUE HANDLING

1

F21899

ANGLE - attaching

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

195-21

WASHER,5/16"

- flat 5/16"

2шт.

2

F84604

BRACKET - hanger

1шт.

3

F1601

COLLAR

2шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

2шт.

4

F82884

HANGER

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.

5

F1600

STOP

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

and lockwasher Hex, 3/8"-16 x 2 1/4", G5

1шт.

85-608

SCREW - 3/8" x 1/2" N.C. sq. hd. set

1шт.

6

F1602

BRACKET - jackshaft

1шт.

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.C. hex.

2шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - 3/8" x 3/8" N.C. sq. hd. set

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., nut and L.W.

1шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

7

F19543

JACKSHAFT

1шт.

8

F82878

SCREW - adjusting

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

2шт.

9

F1603

PULLEY - intermediate

1шт.

10

F19545

BEARING, BALL

BEARING

2шт.

11

A27150

RING

SNAP RING

2шт.

12

F19544

RING - retaining

1шт.

13

F22597

V-BELT

BELT - rear

1шт.

14

F19549

V-BELT,153.00" L

Front 153.00" L

1шт.

15

F1693

SHEAVE - (Chain drive cylinder)

1шт.

16

F1605

SHEAVE - (Variable speed drive cylinder)

1шт.

17

F21901

BOLT

GUSSET - fuel tank bracket

3шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W.

6шт.

18

F84609

BRACKET - rear fuel tank support

1шт.

19

F84610

BRACKET - front fuel tank support

1шт.

20

F21902

BRACE

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Nut and L.W. Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

4шт.
