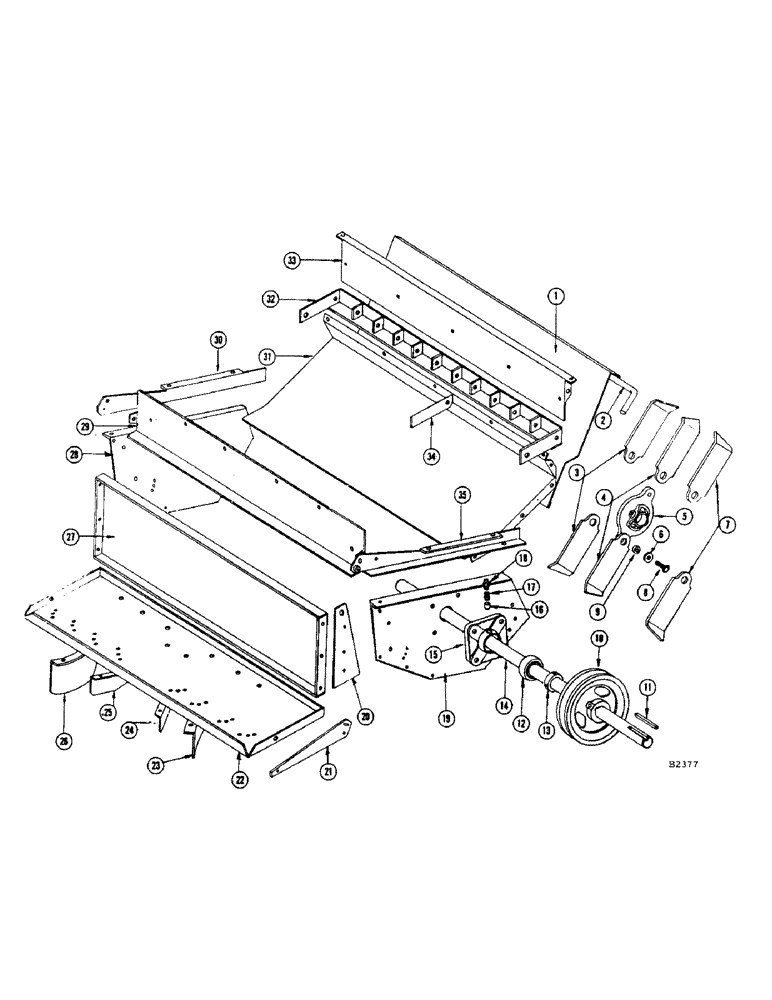

Запчасти Case IH 960 (188) - STRAWCHOPPER - CUTTER AND SPREADER HOUSING (73) - RESIDUE HANDLING

1

F84608

SLIDE

STRAWSLIDE

1шт.

2

F19548

ROD - strawslide

1шт.

195-521

WASHER,5/16", SAE

- 5/16" flat

2шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

3

F82876

HAMMER - pair of L.H.

1шт.

4

F82874

HAMMER - pair of R.H. and L.H.

9шт.

5

F1599

HOLDER - hammer

11шт.

86-612

SCREW - 3/8" x 3/4" N.F. sq. hd. set

22шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

22шт.

6

F19530

WASHER - retaining

22шт.

7

F82875

HAMMER - pair of R.H.

1шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex., nut and L.W.

22шт.

9

F19529

BUSHING

22шт.

10

F1694

SHEAVE

1шт.

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - 3/8" x 1/2" N.C. socket hd. set

2шт.

11

B18232

KEY

1шт.

12

F84274

BEARING

2шт.

13

F21378

COLLAR

1шт.

84-57

SCREW - 5/16" x 7/16" N.F. hex. socket hd. set

2шт.

14

F19528

SHAFT - rotor

1шт.

15

F1695

HOUSING - bearing

2шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-20 x 1/2", G5, Full Thd

8шт.

16

F21379

CARRIAGE BOLT

RETAINER - race

2шт.

17

F21380

SPRING - race retainer

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

2шт.

19

F13180

PANEL - R.H. side

1шт.

20

F13184

PLATE - hinge

2шт.

21

F13186

BRACE - spreader pan

2шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Nut and L.W. Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

22

F22019

PAN - spreader

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

195-525

WASHER,3/8", SAE

2шт.

23

F13188

VANE - R.H. long

3шт.

24

F19536

VANE - R.H. short

1шт.

25

F19535

VANE - L.H. short

1шт.

26

F13187

VANE - L.H. long

3шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. truss hd., nut and L.W.

16шт.

27

F22018

WRAPPER - rear section

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

191-904

NUT - 5/16" N.C. spinlock

8шт.

28

F13168

PANEL - L.H. side

1шт.

29

F21900

PANEL - rear mounting

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Nut and L.W. Hex, 5/16"-18 x 5/8", G5, Full Thd

10шт.

30

F84606

PANEL - L.H. mounting

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Nut and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

F22016

WRAPPER - bottom section

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

12шт.

191-904

NUT - 5/16" N.C. spinlock

12шт.

32

F82872

FRAME - retarder

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

and nut Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

33

F22017

WRAPPER - front section

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

77-510

SCREW,Spcl, #6

- 5/16" x 5/8" N.C. truss hd.

9шт.

191-904

NUT - 5/16" N.C. spinlock

13шт.

34

F19527

KNIFE

10шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

10шт.

35

F84607

PANEL - R.H. mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.
