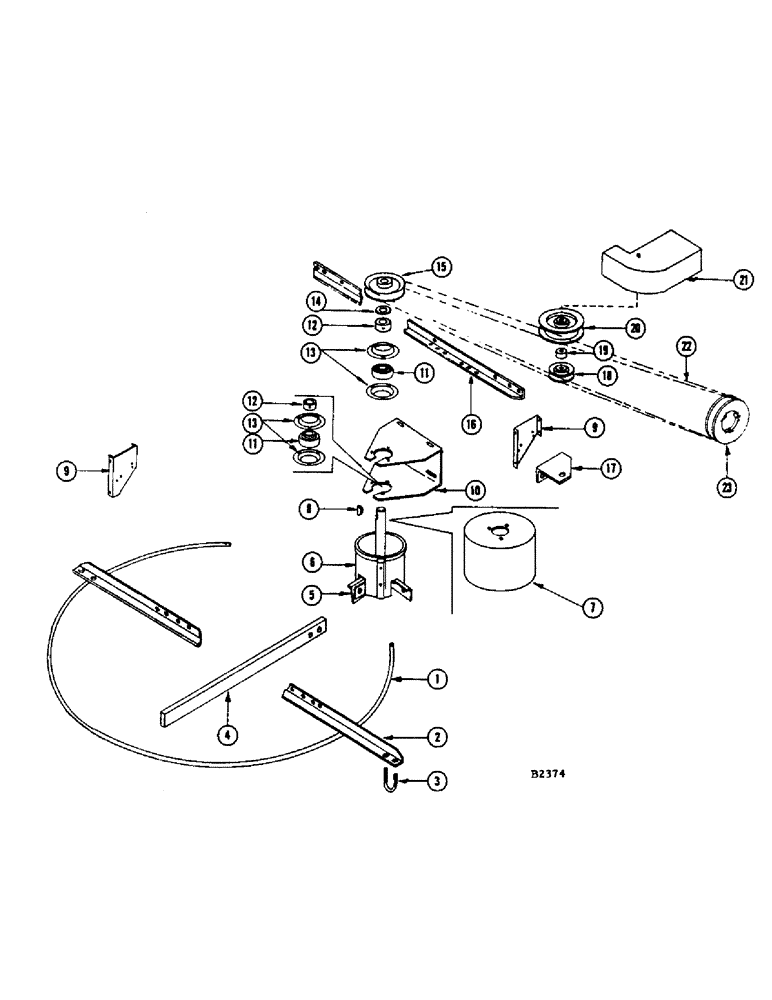

Запчасти Case IH 960 (186) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING

1

F16705

GUARD

1шт.

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex., nut and L.W.

2шт.

2

F22144

BRACE - guard

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex., nut and L.W.

4шт.

195-103

WASHER,5/16"

- flat 5/16"

4шт.

3

A22439

"U" BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

and L.W. 5/16"-18, G5

4шт.

4

F4021

PADDLE

3шт.

111-207

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16" x 2" rhd. sq. nk., nut and L.W.

6шт.

195-103

WASHER,5/16"

- flat 5/16"

6шт.

4

F30269

PADDLE - (Rubber) recommended for corn harvesting

3шт.

F30270

WASHER - for F30269 paddle

3шт.

111-221

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1 1/2", G2

6шт.

231-1445

NUT,5/16"-18, GB

LOCKNUT - 5/16" N.C.

6шт.

5

F82707

SHAFT - assembly

1шт.

6

F19327

SHIELD

1шт.

7

F83365

SHIELD - anti-wrap

1шт.

8

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

9

F21908

CARRIAGE BOLT

BRACKET - L.H. and R.H.

2шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

2шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

10

F21889

CARRIAGE BOLT

BRACKET

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk., nut and L.W.

2шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

2шт.

195-104

WASHER,3/8"

- flat 3/8"

4шт.

11

3074CSA

BALL BEARING

2шт.

12

F62108

COLLAR

1шт.

13

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

6шт.

14

O906B

WASHER

1шт.

15

F82706

PULLEY

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

16

F21909

CARRIAGE BOLT

ANGLE - upper reinforcement

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

195-103

WASHER,5/16"

- flat 5/16"

3шт.

17

F19330

BRACKET - idler

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

18

F6845

SHEAVE

IDLER - "V", lower

1шт.

19

V13384

SPACER

1шт.

20

F6474

PULLEY

IDLER - flat, upper

1шт.

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

- 5/8" x 4" N.F. hex., nut and L.W.

1шт.

95-10

WASHER,5/8"

- flat 5/8"

5шт.

21

F84662

SHIELD - drive

1шт.

22

E2586S

V-BELT

BELT

1шт.

23

F1482

SHEAVE - driving

1шт.

114-109

BOLT,Hex, 5/16" - 24 x 2-1/4", Gr 5

- 5/16" x 2-1/4" N.F. hex., nut and L.W.

3шт.
