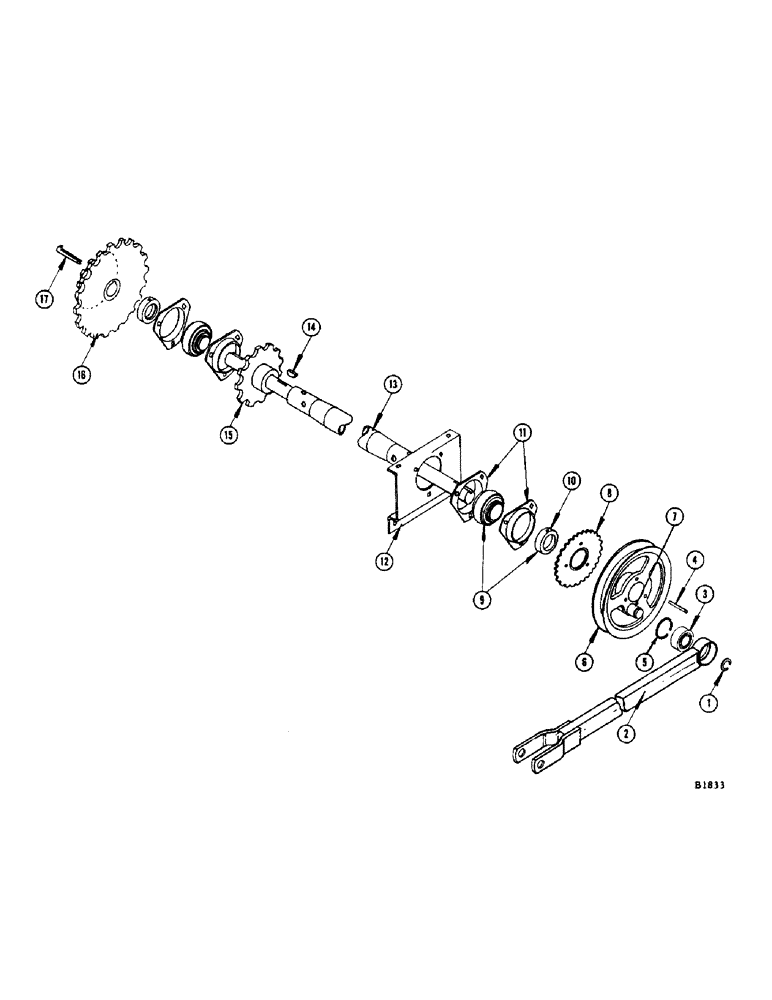

Запчасти Case IH 960 (114) - ROCKER ARM DRIVE CRANKSHAFT FOR STRAWWALKER AND TAILINGS ELEVATOR (72) - SEPARATION

1

A26949

RING, SNAP

SNAP RING - outside, for ref. 3 bearing

1шт.

2

F84893

PITMAN - shoe drive (#8311400 and after)

1шт.

F80887

PITMAN

- shoe drive (Before #8311400 - when stocks are exhausted use F84893)

1шт.

3

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - Pitman

1шт.

4

O1821CS

KEY - tapered, for ref. 6, Serial Range: sheave-crankshaft

1шт.

5

A27150

RING

SNAP RING - inside, for ref. 3 bearing

1шт.

6

F82378

SHEAVE - shoe drive Pitman

1шт.

7

F17772

PIN

1шт.

8

F18524

SPROCKET - (27T) strawwalker drive

1шт.

BOLT - 5/16" x 2" N.F. hex. (14-532) Nut (25-115) L.W. (92-5)

2шт.

BOLT - 5/16" x 2-1/4" N.F. hex. (14-536) Nut (25-115)

1шт.

LOCKWASHER - 5/16" (92-5)

1шт.

9

T18852

BALL BEARING

BEARING - crankshaft

2шт.

10

O4524B

COLLAR

2шт.

11

F16086

FLANGE

4шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) Nut (25-106)

6шт.

LOCKWASHER - 3/8" (92-6)

6шт.

12

F16092

BRACKET - bearing holder, R.H. end

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

3шт.

LOCKWASHER - 5/16" (92-5)

3шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

2шт.

13

F21436

CRANKSHAFT - rocker drive (Grain bin machines only)

1шт.

13

F20904

CRANKSHAFT - rocker arm drive (Bagging platform machines only)

1шт.

14

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 15 sprocket to crankshaft #A, 1/4" x 7/8", HT

1шт.

15

F80863

SPROCKET - grain elev. drive (18T) (Bagging platform machines only)

1шт.

16

F81348

SPROCKET - (45T and 17T) drives crankshaft

1шт.

F16228

X

CHAIN - drives rocker arm crankshaft (NSS - see chain page)

1шт.

17

O30388HT

KEY

- gib, for ref. 16 double, Serial Range: sprocket-crankshaft

1шт.
