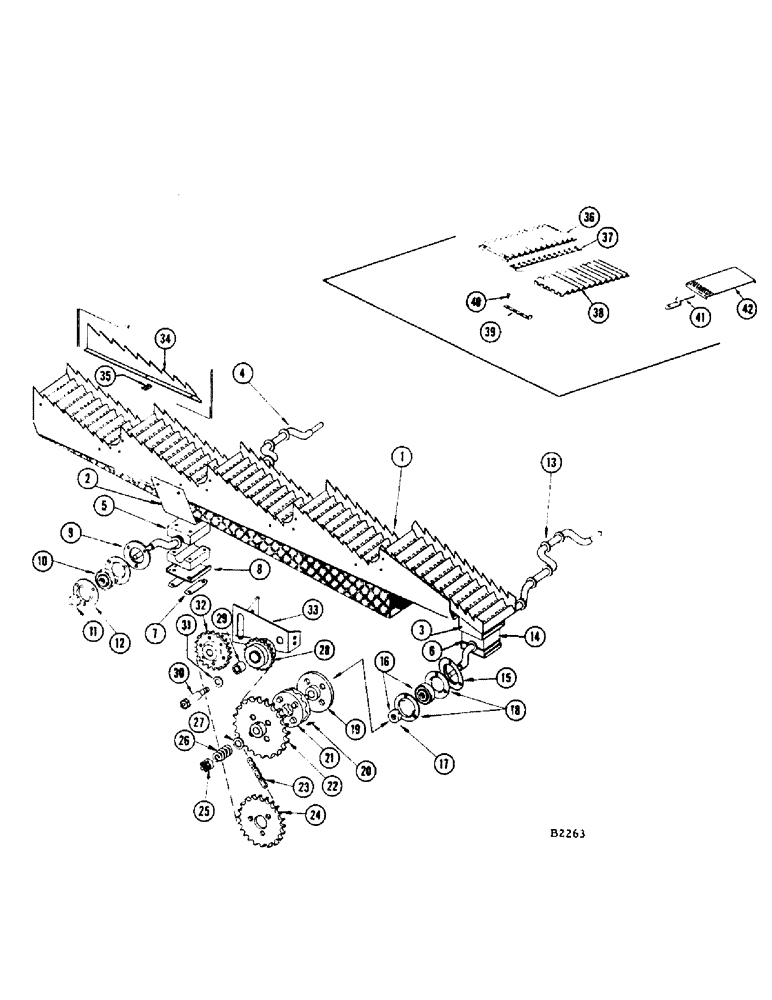

Запчасти Case IH 960 (110) - STRAWWALKER (72) - SEPARATION

1

F83871

STRAW WALKER

STRAWWALKER - grain (Replaced by F94373 when exh.)

4шт.

F94373

STRAW WALKER

STRAWWALKER - grain (Replaces F83871 when exh.)

4шт.

F84990

STRAWWALKER - grain sorghum

4шт.

2

F20937

BRACKET - bearing, rear

1шт.

3

F20936

BRACKET - bearing, front

1шт.

4

F19469

CRANKSHAFT - rear

1шт.

5

F86344

BEARING

- rear crankshaft (Wood)

4шт.

6

F19656

SHIM,1/32" Thk

Bearing 1/32" Thk

1шт.

7

O9751HT

STRAP - lock

2шт.

11-544

BOLT - 5/16" x 2-3/4" rhd. sq. nk.

16шт.

25-225

SQUARE NUT,Sq, 5/16"-24

- 5/16" N.C. square

16шт.

8

F7820

CAP - bearing, front and rear

8шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

8шт.

9

F6198

PLATE - flange, rear (Before #8358001)

2шт.

10

F94133

HOUSING ASSY.

BEARING - rear crankshaft

2шт.

11

F10138

COLLAR

1шт.

12

B18282

FLANGE

4шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1", G2

6шт.

13

F19468

CRANKSHAFT - front

1шт.

14

F83178

BEARING

- front crankshaft (Wood)

4шт.

F19656

SHIM,1/32" Thk

Bearing 1/32" Thk

1шт.

O9751HT

STRAP - lock

2шт.

11-548

BOLT - 5/16" x 3" N.C. rhd. sq. nk.

16шт.

25-225

SQUARE NUT,Sq, 5/16"-24

- 5/16" N.C. square

16шт.

15

F21747

PLATE - flange, front (Before #8358001)

2шт.

16

F94133

HOUSING ASSY.

BEARING - front crankshaft

2шт.

17

F10138

COLLAR

1шт.

18

O4787CS

FLANGE

4шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1", G2

6шт.

19

2CS

PLATE - jump clutch (Exh. then use F89367)

1шт.

F89367

JUMP CLUTCH ASSY (Replaces 2CS when exh.)

1шт.

20

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

21

T16665

RING - jump clutch

2шт.

22

F82371

SPROCKET - crankshaft drive (34T)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

23

F18554

CHAIN - strawwalker drive (NSS - see chain page)

1шт.

24

F18524

SPROCKET - strawwalker (27T)

1шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex., nut and L.W.

2шт.

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

BOLT - 5/16" x 2-1/4" N.F. hex., nut and L.W.

1шт.

25

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. Esna stop

1шт.

26

O1090CH

SPRING

- jump clutch

1шт.

27

A26376

WASHER

- clutch spring

1шт.

28

A689CSA

SPROCKET - idler (15T)

1шт.

29

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

30

O4925CS

BOLT - shoulder

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex. and L.W.

1шт.

31

O236CH

WASHER

1шт.

32

F6078

SPROCKET ASSY.

SPROCKET - tightener (17T)

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

Nut and L.W. Hex, 5/8"-18 x 2 1/4", G5

1шт.

195-41

WASHER,5/8"

- flat 5/8"

3шт.

33

F84482

BRACKET - tightener

1шт.

34

F10237

RISER - center

8шт.

35

F13202

CLIP - riser (Replaces F10811 when exh.)

16шт.

F10811

CLIP - riser (Replaced by F13202 when exhausted)

16шт.

11-416

BOLT (MACHINE)

BOLT - 1/4" x 1" rhd. sq. nk., nut and L.W.

16шт.

36

F21188

COVER - grid (Front only)

4шт.

LOCKWASHER - 1/4" (192-19) Fl. wshr. (195-518)

8шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) Nut (129-121)

8шт.

37

F84069

STIFFENER

8шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) L.W. (192-19)

40шт.

NUT - 1/4" N.F. hex. (129-121)

8шт.

38

F21191

COVER - grid, rear section

4шт.

39

F21192

CLAMP - grid cover rear section

8шт.

40

F21193

STUD - trimount, rear grid cover section

8шт.

41

F7435

CLIP - grid cover, strawwalker grid cover attachment, sorghum grain

20шт.

42

F19979

COVER - center grid, strawwalker grid cover attachment, sorghum grain

16шт.

F19980

COVER - rear grid, strawwalker grid cover attachment, sorghum grain

4шт.
