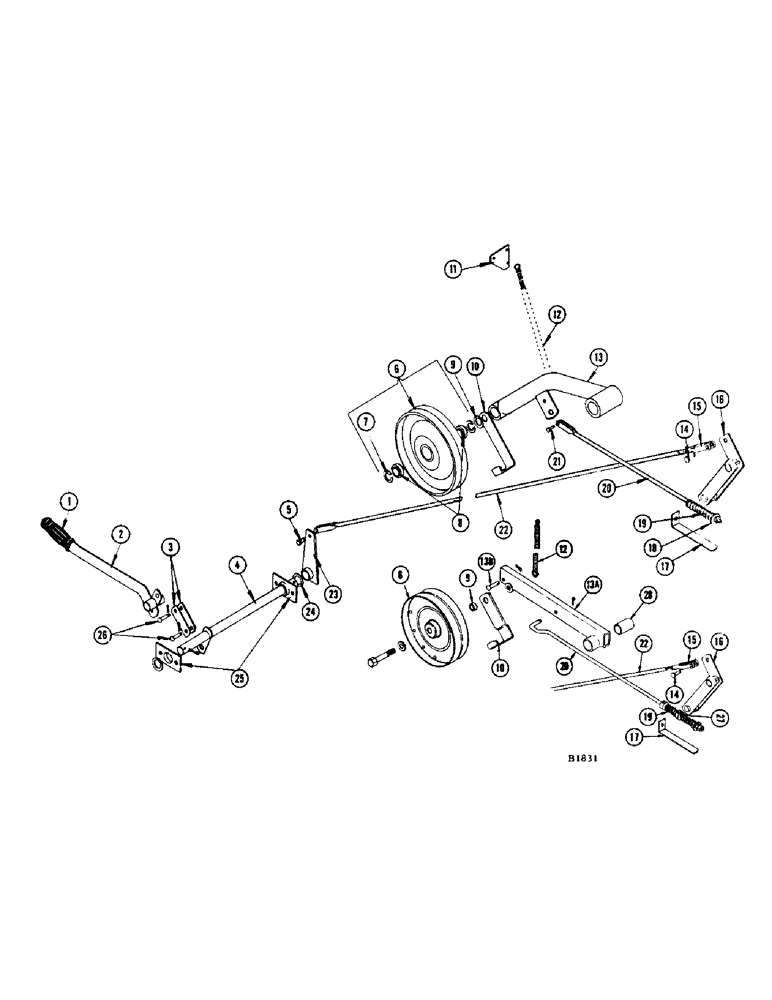

Запчасти Case IH 960 (108) - MAIN COMBINE DRIVE TIGHTENER LINKAGE - BEATER DRIVE (72) - SEPARATION

1

F13011

SCREW

GRIP - hand

1шт.

2

F84363

LEVER - combine control

1шт.

3

F21568

LINK - connecting

2шт.

4

F84365

SHAFT - main drive throwout

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

5

O1235HT

PIN - clevis, for ref. 22 rod to ref. 23 arm

1шт.

PIN - cotter 1/8" x 5/8" (132-45)

1шт.

6

F80920

SHEAVE - idler, beater drive (Before #8358001)

1шт.

6

F22692

PULLEY ASSY.

SHEAVE - idler, beater drive (#8358001 and after)

1шт.

7

O3338BF

SNAP RING - bearing retainer

2шт.

8

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING

2шт.

BOLT - 5/8" x 3" N.C. hex. (13-1048) Lockwasher (92-10)

1шт.

9

O2736AB

WASHER - idler sheave (Before #8358001)

1шт.

9

A30936

SPACER - idler sheave (#8358001 and after)

1шт.

10

F17517

GUIDE - belt (Before #8358001)

1шт.

10

F22691

PLOW BOLT

GUIDE - belt (#8358001 and after)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

WASHER - 3/16" flat (95-3)

1шт.

11

F17431

BRACKET - tightener arm spring (Grain combine) Before #8358001

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) and lockwasher (92-4)

2шт.

12

O2678N

SPRING

- tightener arm

1шт.

13

F83075

ARM - tightener (Before #8358001)

1шт.

13a

F94199

ARM - tightener (#8358001 and after)

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

FITTING - grease 1/4" str. (219-87)

1шт.

13b

B18292

AXLE PIN

PIN

1шт.

14

O5341CS

PIN - for ref. 15 clevis to ref. 16 bellcrank

1шт.

PIN - cotter 1/8" x 5/8" (132-45)

1шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - (5/16" - 24) For ref. 22 rod

1шт.

16

F81635

BELLCRANK - main drive

1шт.

FITTING - grease 1/4" str. (219-20)

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) Nut (25-1510)

1шт.

WASHER - 5/8" flat (95-3)

4шт.

17

F17947

GAUGE

- spring, main drive throwout

1шт.

18

O58BL

WASHER - throwout rod

1шт.

19

F17945

SPRING

- (Before #8358001)

1шт.

19

F17945

SPRING

- (#8358001 and after)

2шт.

20

F81909

ROD - throwout (Before #8358001)

1шт.

20

F22759

PLOW BOLT

ROD - throwout (#8358001 and after)

1шт.

NUT - 5/16" N.C. hex. (25-105)

2шт.

F50255

COLLAR - for ref. 20 rod (Not shown)

1шт.

SCREW - 5/16" x 1/2" N.C. sq. hd. set (85-58)

1шт.

21

O1235HT

PIN - clevis, for ref. 20 rod to ref. 13 arm

1шт.

PIN - cotter 3/32" x 7/8" (132-27)

1шт.

22

F81907

ROD - throwout

1шт.

NUT - 5/16" N.F. hex. (25-115)

1шт.

23

F81663

ARM - combine control BOLT - 3/8" x 2" N.F. hex. (14-632) Nut (25-116) L.W. (92-6)

1шт.

24

O906B

WASHER

- main drive throwout shaft

2шт.

25

F17298

BRACKET - bearing, main drive throwout shaft

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115) and lockwasher (92-5)

4шт.

26

B18213

PIN - for ref. 3 link

2шт.

PIN - cotter 1/8" x 3/4" (132-46)

2шт.

27

F19583

BUSHING - (#8358001 and after)

2шт.

28

F11666

BEARING - (#8358001 and after)

2шт.
