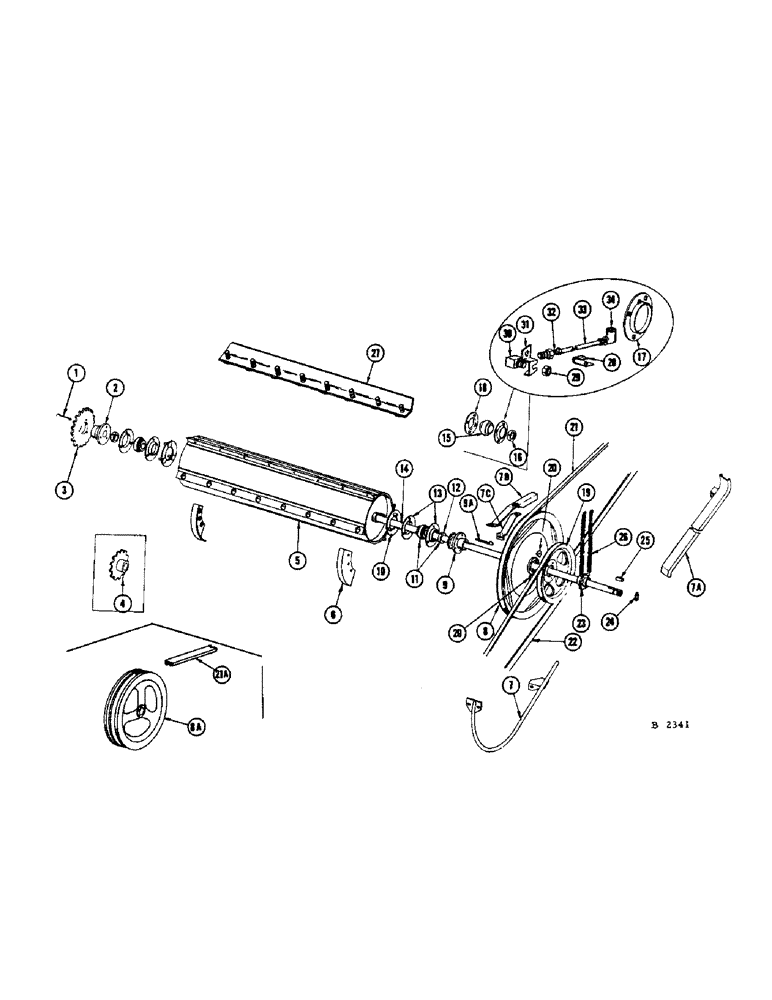

Запчасти Case IH 960 (092) - BEATER (72) - SEPARATION

1

O30388HT

KEY

- gib (Chain cylinder drive only)

1шт.

2

F3406

HUB

- chain cylinder drive only

1шт.

3

F8978

SPROCKET - (33T) Chain cylinder drive only

1шт.

4

F82610

SPROCKET - (17T and hub) cylinder drive (Slow cylinder speed - special) Used in place of F3406 and F8978

1шт.

5

F82866

BEATER

- less shaft (Used with out wing extensions)

1шт.

F82364

BEATER

- less shaft (Used with wing extensions)

1шт.

126-223

KEY

- #910 Hi-Pro

1шт.

6

F82371

SHIELD - beater end

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

6шт.

7

F81638

GUARD - belt, beater sheave (Before #8358001)

1шт.

7a

F94269

GUARD - belt, beater sheave (#8358001 and after)

1шт.

F22797

PLOW BOLT

BRACKET - front, belt retainer

1шт.

7b

F22800

PLOW BOLT

BELT GUIDE - front (#8358001 and after)

1шт.

F18836

STRIP - canvas (Between F22799 and F22800)

1шт.

7c

F22799

PLOW BOLT

BRACE - belt guide (#8358001 and after)

1шт.

8

F82369

SHEAVE - beater drive (Before #8358001)

1шт.

8a

F89274

SHEAVE - beater drive (#8358001 and after)

1шт.

9

F83088

HUB AND SPROCKET - (16T) (Before #8358001)

1шт.

F94284

HUB AND SPROCKET - (16T) (#8358001 and after)

1шт.

9a

O30388HT

KEY

- gib

1шт.

10

F81313

RETAINER - bearing

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

8шт.

11

F77924

BEARING

- grain combine

2шт.

12

F62107

COLLAR

1шт.

13

F8944

FLANGE

- for F77924 bearing

4шт.

14

F21412

SHAFT - beater (Chain cylinder drive)

1шт.

F21964

SHAFT - beater (Variable speed cylinder drive)

1шт.

15

F84032

BEARING

- 960 special

2шт.

16

F62107

COLLAR

1шт.

17

F22911

FLANGE - (960 special) L.H. outside (Exh. then use F21027)

1шт.

F21027

FLANGE - (960 special) R.H. & L.H. outside (Replaces F22911 when exh.)

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" 67-1/2 degrees

2шт.

18

F21026

BEARING

FLANGE - (Special combine) Inside, R.H. and L.H.

2шт.

F1571

SHEAVE

- header drive, replaces F82401 when exh.

1шт.

19

F82401

SHEAVE

- header drive (Replaced by F1571 when exh.)

1шт.

20

O2553CS

WASHER - (18 ga.) balancing

1шт.

O2799CS

WASHER - (12 ga.) balancing

1шт.

21

CASF20061

BELT

"V" BELT - beater drive (Before #8358001)

1шт.

21a

F23028

V-BELT,0.78" W, 2 Ribs

Beater Drive, Serial No. 8358001 and After 0.78" W, 2 Ribs

1шт.

22

F22398

BELT

Header Drive, Replaces F17460 When Stocks are Exhausted

1шт.

F17460

BELT

"V" BELT - header drive (Replaced by F22398)

1шт.

23

F84377

SPROCKET - elevator drive (26T) Grain bin machines

1шт.

24

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

25

O8065HT

KEY

1шт.

26

N3412

X

CHAIN - elevator drive (Bin combines) (NSS - see chain page)

1шт.

27

F91867

WING EXTENSION - beater

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

32шт.

28

F53475

"J" CLAMP (Before #8371001)

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

- hex (Before #8371001)

1шт.

92-7

LOCK WASHER,7/16"

(Before #8371001) 7/16"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, 7/16" (Before #8371001)

1шт.

30

F53472

ELBOW - 90 degree zerk (Before #8371001)

1шт.

31

F53471

BRACKET - grease zerk (Before #8371001)

1шт.

32

F86399

FITTING

CONNECTOR - (Before #8371001)

1шт.

33

F53474

LINE - lube (Before #8371001)

1шт.

34

F53476

COUPLER - 90 degree snap-on (Before #8371001)

1шт.
