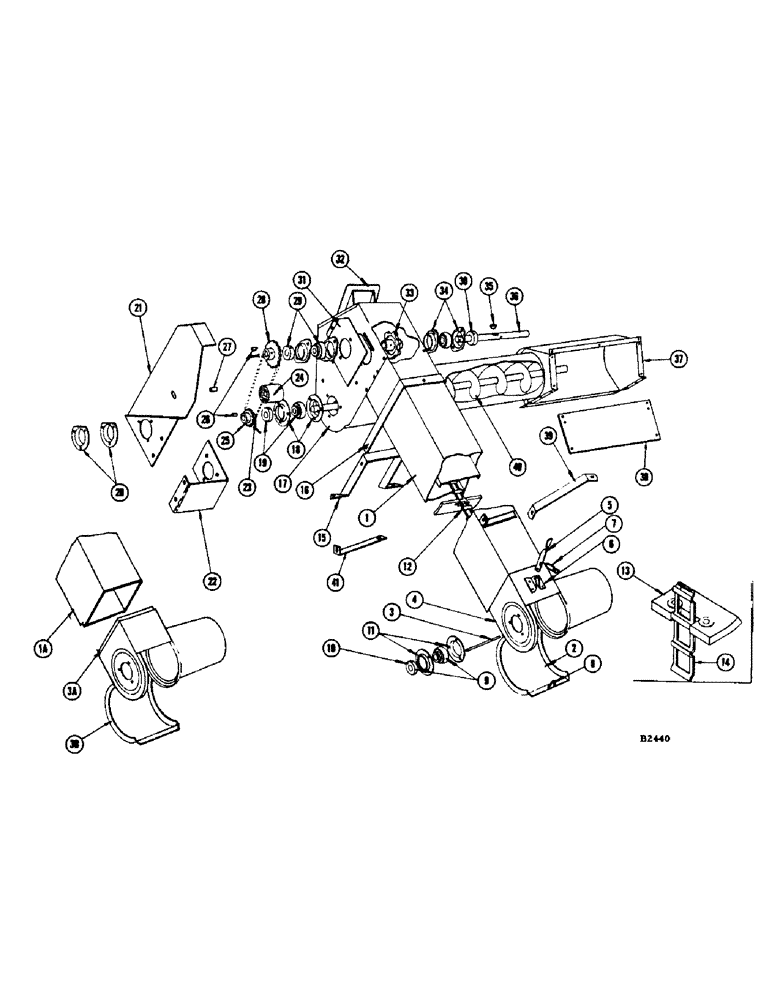

Запчасти Case IH 960 (156) - TAILINGS ELEVATOR (66) - THRESHING

1

F91838

X

BODY - tailing elevator, grain combine w/bin and bagger combine (Replaces F84384 when exh.) Before #8358001

1шт.

F84384

HEAD ASSY.

BODY - tailings elevator (Grain combine w/bin and bagger combine) (Replaced by F91838 when exhausted)

1шт.

F84555

BODY - tailings elevator (960 special w/bin) Before #8334601

1шт.

1a

F92473

X

BODY - tailings elevator (960 spec. w/bin) #8334601 & after (Grain and bagger combine #8358001 and after)

1шт.

2

F78417

DOOR - lower head (Hinge pin type) (Grain combine w/bin and bagger combine)

1шт.

3

O309CS

PIN - hinge, for F78417 door

1шт.

F83950

DOOR - lower head (960 special w/bin) Before #8334601

1шт.

3a

F92474

HEAD

- lower for F92473

1шт.

3b

F92477

DOOR

- lower head for F92474

1шт.

F94213

DOOR - perforated

1шт.

4

F84585

KIT - repair, lower head (All combines before #8334601) Grain comb. w/bin & bagger comb. #8334601 thru #8358000

1шт.

175-407

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N.F. truss hd., nut and L.W.

12шт.

5

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

6

O314CS

BRACKET - handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

7

O316CS

SPRING - latch handle

1шт.

F83950

DOOR - lower head

1шт.

8

O315CS

HOOK - latch

1шт.

9

F90306

BEARING ASSY

BEARING - L.H. end, auger shaft

1шт.

10

O4233CS

COLLAR

1шт.

11

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

12

F82402

X

CHAIN - conveyor (NSS) (See chain page) #55 chain 5" flight consists of (1) F86423, (1) F86425 and (2) 235-83 coupling links

1шт.

F94212

CHAIN - conveyor (See chain page) (#CA550 - 7" flight) Consists of 30 flights

1шт.

15

F17110

BRACKET - elevator support

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

16

F17113

SHARE

STRAP - upper support

1шт.

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd, Nut and L.W.

2шт.

17

F84383

HEAD - upper (All combine before #8334601 - grain and bagger combines) (#8334601 thru #8358000)

1шт.

F92472

HEAD - upper (960 special - #8334601 and after; grain and bagger combine) (#8358001 and after)

1шт.

F86525

CLIP

- door

1шт.

151-123

RIVET - 3/16" x 4/16" semi-tubular

1шт.

18

B18282

FLANGE

- bearing

2шт.

19

F94134

HOUSING ASSY.

BEARING - discharge auger shaft

2шт.

F52076

COLLAR

1шт.

20

O4787CS

FLANGE - bearing

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

6шт.

21

F84520

SHIELD - chain

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

22

F20205

BRACKET - support, bearing

1шт.

23

F17105

X

CHAIN - discharge auger drive (NSS - see chain page)

1шт.

24

F4718

TIGHTENER - chain

1шт.

11-664

BOLT

- 3/8" x 4" rhd. sq. nk., nut and lockwasher

1шт.

95-6

WASHER,3/8"

- flat 3/8"

1шт.

25

F76947

SPROCKET - discharge auger drive, driven (15T)

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

26

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

27

B18083

BUSHING

SPACER

1шт.

28

F76981

SPROCKET - discharge auger drive (22T)

1шт.

29

F94134

HOUSING ASSY.

BEARING - upper shaft

2шт.

30

F52076

COLLAR

1шт.

31

F16438

BRACKET - adjustment

2шт.

32

F83602

DOOR - inspection

1шт.

33

51B

SPROCKET ASSY.

SPROCKET - upper shaft (7T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

PIN - cotter 3/16" x 3/4"

1шт.

34

F9417

FLANGE

- bearing

4шт.

35

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

36

F6571

SHAFT - upper

1шт.

37

F83274

HOUSING - tailings return

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

7шт.

38

F18923

SCREW

COVER - return housing (960 special and bagger combines)

1шт.

39

F21601

STRAP - lower support

1шт.

40

F84519

AUGER - tailings discharge

1шт.

41

F21760

BRACE - elevator

1шт.
