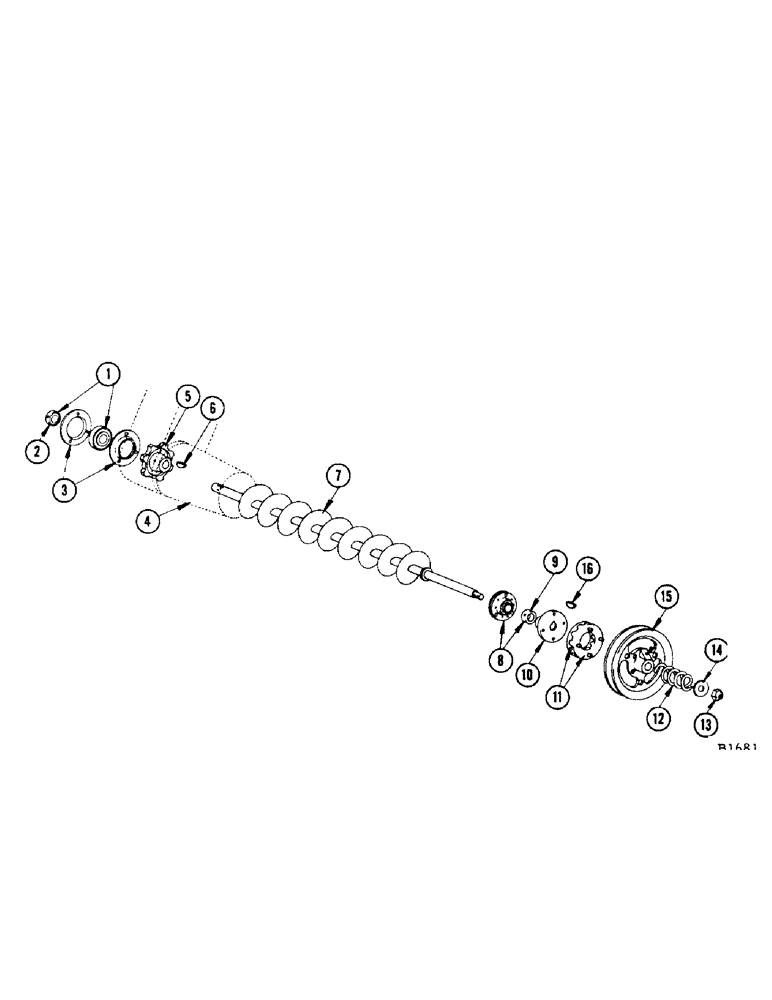

Запчасти Case IH 960 (154[1]) - TAILINGS AUGER (66) - THRESHING

1

F94134

HOUSING ASSY.

BEARING - L.H. end auger shaft

1шт.

2

F52076

COLLAR

1шт.

3

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16"

3шт.

4

F84585

HEAD - lower (Ref. only - see tailings elevator)

1шт.

5

51B

SPROCKET ASSY.

SPROCKET - (7T) Drives tailings elevator

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 5 sprocket to auger shaft #A, 1/4" x 7/8", HT

1шт.

7

F84385

AUGER - tailings

1шт.

8

F78749

COLLAR

BEARING - auger shaft, R.H. end

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16"

2шт.

9

F52076

COLLAR

1шт.

10

143CS

PLATE

HUB - jump clutch (Exh. then use F89322)

1шт.

F89322

SCRAPER

HUB - jump clutch (Replaces 143CS when exh.)

1шт.

11

T16665

RING - jump clutch

2шт.

12

O1090CH

SPRING

- jump clutch

1шт.

13

131-37

LOCK NUT,3/4"-16

NUT - (3/4" N.F. ESNA elastic stop) For Ref 7 auger

1шт.

14

A26376

WASHER

- spring

1шт.

15

F1462

SHEAVE - drives tailings auger driven

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8", 45 degrees

1шт.

16

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 10 hub to auger shaft #A, 1/4" x 7/8", HT

1шт.
