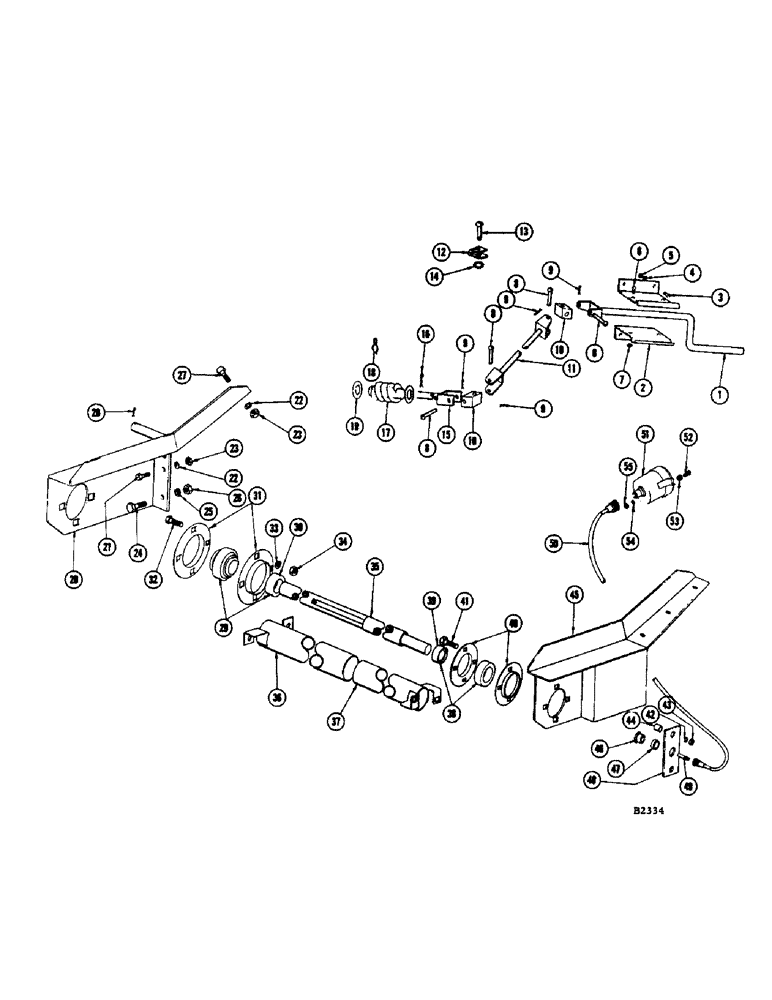

Запчасти Case IH 960 (098) - VARIABLE SPEED JACKSHAFT CRANK AND TACHOMETER (66) - THRESHING

1

F84698

ROD - crank

1шт.

2

F22006

BRACKET - crank (Grain combine)

2шт.

3

78-48

SCREW - 1/4" x 1/2" N.F. truss hd. mach.

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

6

78-48

SCREW - 1/4" x 1/2" N.F. truss hd. mach.

2шт.

7

131-574

NUT - 1/4" thin lock

2шт.

F21978

BRACKET - crank (960 special)

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT - 5/16" x 3/4" N.F. hex., nut and L.W.

2шт.

8

F62238

PIN - for cross (F17556)

4шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

10

F17556

CROSS - universal joint (Exhaust, then use F22933)

2шт.

11

F84713

ROD - connector (Grain combine)

1шт.

F84762

ROD - connector (960 special)

1шт.

12

F22933

CROSS - universal joint (Replaces F17556 when exhausted)

2шт.

13

45-524

RIVET - 5/16" x 1-1/2" rd. hd. (For F22933)

4шт.

14

193-92

LOCK WASHER,Int Tooth, 5/16"

SPRINGRIP - 5/16"

4шт.

15

F84712

SHAFT - with fork

1шт.

16

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

17

F1529

WORM

1шт.

18

135-136

PIN - 3/16" x 7/16" Type A drive lock

1шт.

19

195-41

WASHER,5/8"

- flat 5/8"

2шт.

20

F84696

SUPPORT - bearing, R.H. (Grain combine)

1шт.

F84699

SUPPORT - bearing, R.H. (960 special)

1шт.

21

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex.

1шт.

22

92-6

LOCK WASHER,3/8"

5шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

5шт.

24

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

27

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

4шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

29

F77924

BEARING

- R.H. end

1шт.

30

F62107

COLLAR

1шт.

31

F8944

FLANGE

2шт.

32

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

35

F21987

JACKSHAFT

1шт.

36

F84701

SHIELD - safety, R.H.

1шт.

37

F84700

SHIELD - safety, L.H.

1шт.

38

1443CKA

BALL BEARING

BEARING - L.H. end

1шт.

39

F62234

COLLAR

1шт.

40

F21972

FLANGE

2шт.

41

12-628

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (Short)

4шт.

195-25

WASHER,3/8"

- flat 3/8"

1шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

44

F21973

SPACER

2шт.

45

F84697

SUPPORT - bearing, L.H. (Grain combine)

1шт.

F21982

SUPPORT - L.H. (960 special)

1шт.

46

F22062

NUT - connector, cable

1шт.

F20286

WASHER

1шт.

47

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING

1шт.

48

F21974

BRACKET - tach. cable

1шт.

49

F6438

BUSHING - connector

1шт.

50

F21996

CABLE - tachometer

1шт.

51

F21988

TACHOMETER

1шт.

52

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- #10 x 3/4" N.F. truss hd.

4шт.

53

F13115

GROMMET

- rubber

4шт.

54

195-512

WASHER,#10

- flat #10

4шт.

55

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - #10-32 stop

4шт.
