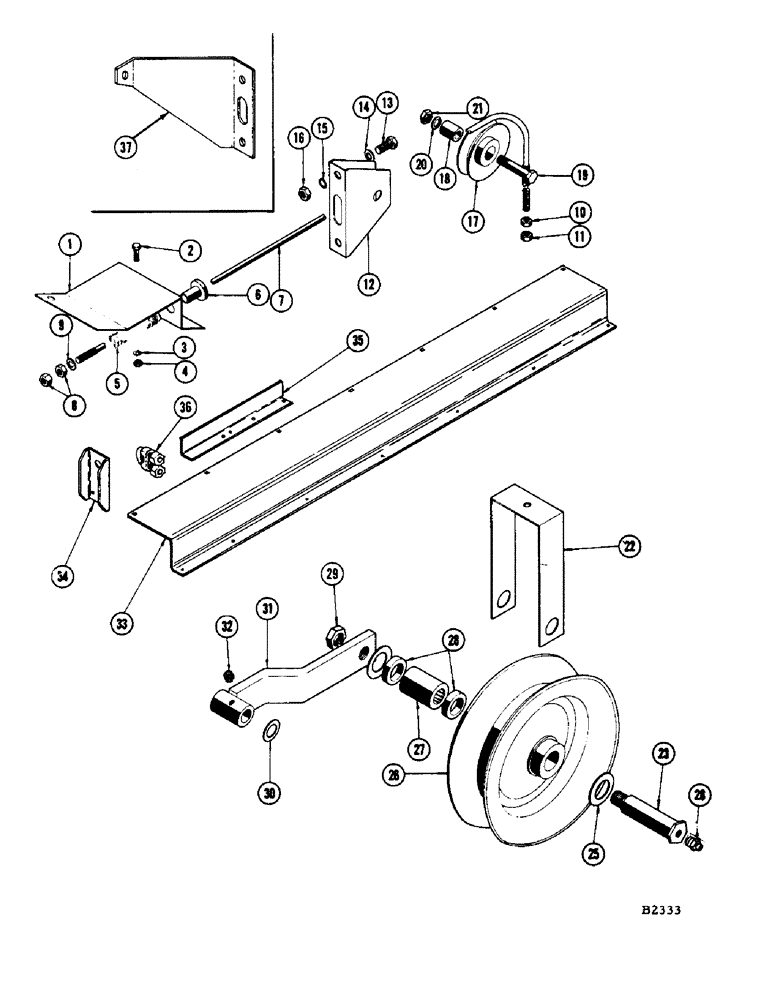

Запчасти Case IH 960 (096) - BELT TAKE UP - V. S. CYLINDER DRIVE (66) - THRESHING

1

F21966

BRACKET - spring (Grain combine)

1шт.

F21977

BRACKET - spring (960 special)

1шт.

2

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex.

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

5

126EB

SPRING - compression

1шт.

6

F19583

BUSHING

1шт.

7

F21979

CABLE - idler (Grain combine)

1шт.

F21980

CABLE - idler (960 special)

1шт.

8

129-122

NUT,5/16"-24, G5

2шт.

9

195-525

WASHER,3/8", SAE

1шт.

10

131-3

LOCK NUT,5/16"-24, GB

NUT - 5/16" elastic stop

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

12

F21975

BRACKET - pulley (Grain combine)

1шт.

13

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

14

195-25

WASHER,3/8"

- flat 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

17

F1687

PULLEY - (Grain combine)

1шт.

18

F21028

BUSHING

1шт.

19

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex.

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

22

F21992

STRAP - control

1шт.

23

F21994

SHAFT - idler

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

25

F22171

WASHER

2шт.

26

F84704

SHEAVE - take-up

1шт.

27

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING - needle

1шт.

28

F12607

OIL SEAL

1шт.

29

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. stop

1шт.

30

F62242

WASHER -

1шт.

31

F84703

ARM - pivot

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

33

F22552

SHIELD - cable (Bagging platform)

1шт.

186-60

SCREW - #10 x 1" rhd. wood

7шт.

34

F22554

BRACKET - spring (Bagging platform)

1шт.

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

129-122

NUT,5/16"-24, G5

2шт.

35

F22553

SUPPORT - pulley (Bagging platform)

1шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-1/2" N.F. hex.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-123

NUT,3/8"-24, G5

2шт.

36

N5321

CLAMP - cable (Bagger combines) Not shown

1шт.

37

F22522

SUPPORT - pulley

1шт.
