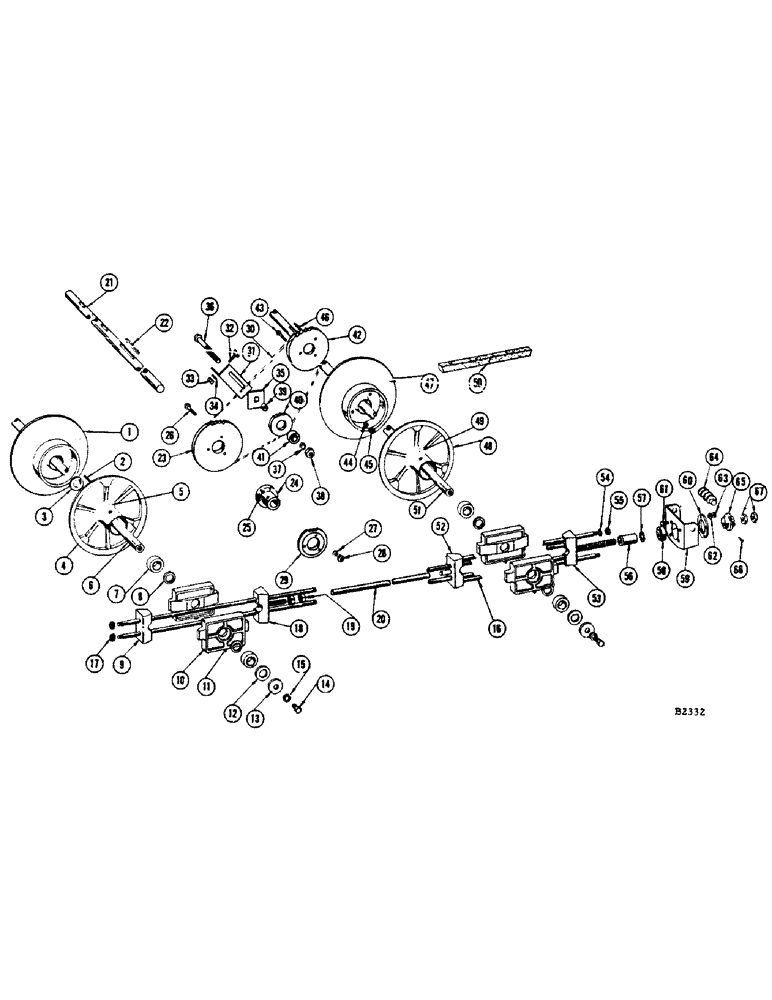

Запчасти Case IH 960 (094) - VARIABLE SPEED CYLINDER DRIVE (66) - THRESHING

1

F1920

SHEAVE - half, inner

1шт.

2

F12613

KEY - sheave halves

1шт.

3

F21989

SPACER

1шт.

4

F1925

SHEAVE - half, outer

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

6

F21964

SHAFT - beater

1шт.

7

F14556

THRUST BEARING

BEARING - thrust

4шт.

8

F12625

RETAINER

- grease

4шт.

9

F1931

WEDGE - tension

1шт.

10

F1926

PLATE

- bearing

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

12

F12636

WASHER

- "D"

2шт.

13

F12637

WASHER

2шт.

14

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

16

F21999

ROD - adjusting

2шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

18

F86731

WEDGE - compression

1шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

20

F22004

STRUT

1шт.

21

F21965

SHAFT - cylinder

1шт.

22

O2287HT

X

KEY

1шт.

23

F16253

SPROCKET - (38T) cylinder drive, driven

1шт.

24

F3417

HUB - cylinder drive

1шт.

25

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.F. cup pt. sq. hd. set

2шт.

26

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

29

O8382HT1

SPROCKET - (21T) cylinder drive, driven

1шт.

30

F22009

X

CHAIN - cylinder drive

1шт.

F22010

X

LINK - extension, cylinder chain

1шт.

31

F21995

SUPPORT - idler

1шт.

32

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex.

2шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

F21062

REINFORCEMENT - idler support

1шт.

36

11-1040

BOLT (MACHINE)

BOLT - 5/8" x 2-1/2" rhd. sq. nk.

1шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

38

25-1010

NUT,5/8"-11, G5

1шт.

39

V13384

SPACER - idler sprocket

1шт.

40

F83982

SPROCKET ASSY.

SPROCKET - (17T) idler

1шт.

41

F7293

BEARING

1шт.

42

F22159

SPROCKET - (30T) jackshaft drive, driven

1шт.

43

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

3шт.

44

92-6

LOCK WASHER,3/8"

3шт.

45

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

46

F12613

KEY - sheave halves

1шт.

47

F1703

SHEAVE - half, inner

1шт.

48

F1924

SHEAVE - half, outer

1шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

50

F21990

BELT

Cylinder Drive

1шт.

51

F21987

JACKSHAFT - variable speed

1шт.

52

F86730

WEDGE - tension

1шт.

53

F84709

SCREW - adjusting

1шт.

54

193-1005

LOCKWASHER - 3/8" ext. Shakeproof

2шт.

55

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

56

F22000

NUT - adjusting

1шт.

57

O3345N

RING, SNAP

SNAP RING

2шт.

58

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - use w/o collar

1шт.

59

F22001

BRACKET - support, worm gear

1шт.

60

F21972

FLANGE

TTE

2шт.

61

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

62

92-6

LOCK WASHER,3/8"

2шт.

63

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

64

F1529

WORM

1шт.

65

F1705

WHEEL - worm (15T)

1шт.

66

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

PIN, 3/16" x 7/16", Slotted

1шт.

67

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

4шт.
