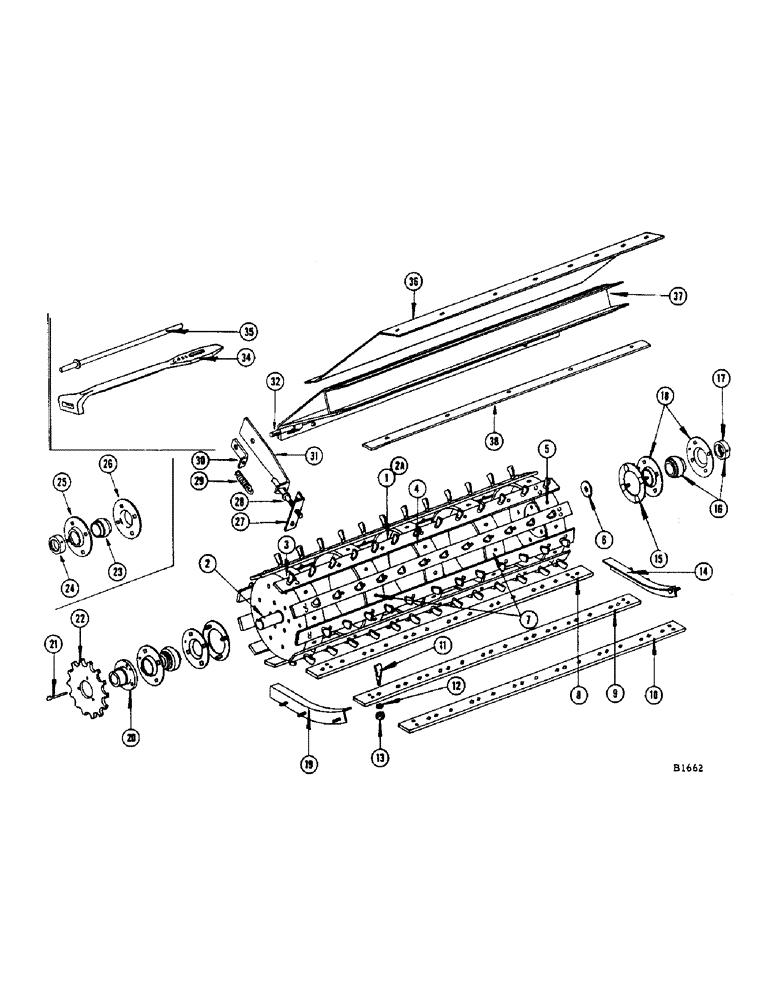

Запчасти Case IH 960 (088) - SPIKE TOOTH CYLINDER (66) - THRESHING

1

F82433

CYLINDER - (Chain drive) Exhaust, then use F94235

1шт.

F94235

CYLINDER - (Chain drive) Complete with shaft (Replaces F82433 when exh.)

1шт.

2

F18519

SHAFT

- (Chain cylinder drive)

1шт.

2a

F88949

CYLINDER - complete welded assy. (Less shaft)

1шт.

3

F84111

HEAD - R.H.

1шт.

Available for riveted type cylinders only.

1шт.

4

F81148

RING - center (Replaced by F92465 when exh.)

1шт.

Available for riveted type cylinders only.

1шт.

F92465

RING - center (Replaces F81148 when exh.)

1шт.

Available for riveted type cylinders only.

1шт.

5

F84110

HEAD - L.H.

1шт.

Available for riveted type cylinders only.

1шт.

6

O1632TS1

WASHER - balance

1шт.

7

F81149

RING - outer (Replaces by F92466 when exh.)

2шт.

Available for riveted type cylinders only.

1шт.

F92466

RING - outer (Replaces F81149 when exh.)

2шт.

Available for riveted type cylinders only.

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

8

F16784

BAR - cylinder, #1 less teeth

3шт.

Available for riveted type cylinders only.

1шт.

9

F16785

BAR - cylinder, #2 less teeth

3шт.

Available for riveted type cylinders only.

1шт.

10

F16786

BAR - cylinder, #3 less teeth

3шт.

Available for riveted type cylinders only.

1шт.

11

B18066

TOOTH

TEETH - cylinder

111шт.

12

194-8

LOCKWASHER

111шт.

13

O236T

NUT

111шт.

F84764

CYLINDER - (V.S. drive) Exh. then use F94236

1шт.

F94236

CYLINDER - (V.S. drive) Replaces F84764 when exh. (Includes ref. 2A, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13)

1шт.

2

F21965

SHAFT - (Variable speed cylinder drive)

1шт.

14

F77257

SHIELD - cylinder, with studs, L.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) Lockwasher (92-4)

3шт.

15

F81313

RETAINER - cylinder bearing

2шт.

NUT - 1/2" N.C. hex. (25-108) L.W. (92-8)

8шт.

16

F77924

BEARING

- grain combine

2шт.

17

F62107

COLLAR

1шт.

18

F8944

FLANGE

4шт.

19

F77258

SHIELD - cylinder, with studs, R.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

20

F3406

HUB

- chain cylinder drive only

1шт.

21

O30388HT

KEY

- gib (Chain cylinder drive only)

1шт.

22

F8974

SPROCKET ASSY.

SPROCKET - (24T) Chain cylinder drive only (See page 90)

1шт.

23

F84032

BEARING

- special combine

2шт.

24

F62107

COLLAR

1шт.

25

F21027

FLANGE - special combine

2шт.

FITTING - grease 1/8" 67-1/2 degrees (219-40)

2шт.

26

F21026

BEARING

FLANGE - special combine

2шт.

27

F21411

BRACKET - spring, cylinder stripper

2шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) Nut (25-106) L.W. (92-6)

4шт.

28

F82683

ROD - stripper adjustment

2шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

29

F18980

SPRING - cylinder stripper

2шт.

30

F18979

CLIP - spring, cylinder stripper

2шт.

31

F18982

COVER - slot, cylinder stripper

2шт.

32

F18983

ROD - adjustment, cylinder stripper

1шт.

PIN - cotter, 1/8" x 1" (132-48)

1шт.

NUT - 3/8" N.F. Flex Loc (132-528)

1шт.

34

B18287

STRAIGHTENER - tooth

1шт.

35

F81694

LEVER - cylinder

1шт.

36

F18988

SCREW

SHIELD - air

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114)

8шт.

37

F83778

STRIPPER - cylinder

1шт.

BOLT - 3/8" x 4" N.F. hex. (14-664) Dbl. nut (25-115)

3шт.

38

F83966M

BAR - cylinder inertia (Set of 9 balanced bars)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Shakeproof L.W. (192-10)

45шт.

NUT - 3/8" N.F. (25-116)

30шт.

F16800

PLATE - filler, spike tooth cylinder (Special)

9шт.

BOLT - 3/8" x 7/8" N.F. hex. (114-218) L.W. (192-21)

45шт.

NUT - 3/8" N.F. (129-123)

30шт.
