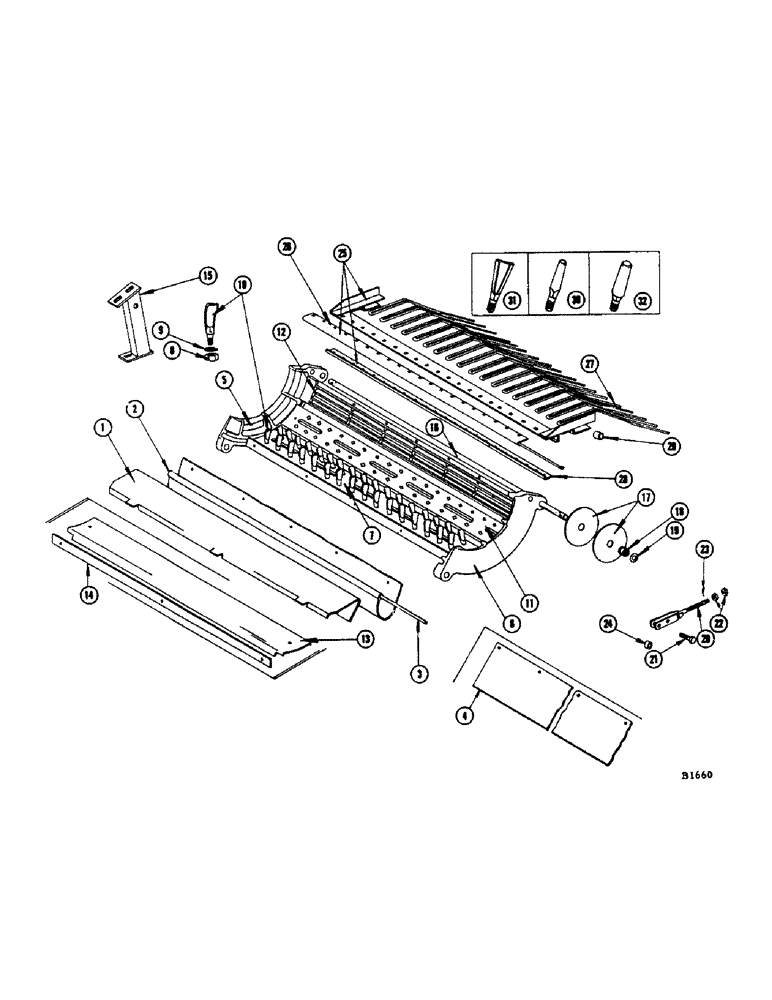

Запчасти Case IH 960 (082) - CONCAVES, TINES AND REMOVABLE FEED PLATE - SPIKE TOOTH (66) - THRESHING

1

F80847

LARGE PLATE

FEED PLATE - cylinder (Regular feed plate - grain)

1шт.

F83317

FEED PLATE - cyl., regular feed plate (Special combine)

1шт.

2

F22364

SEAL - canvas (#8311400 and after)

1шт.

3

F22365

SEAL - rod (#8311400 and after)

1шт.

4

F21432

SPACER

SEAL - regular feed plate - grain combine (Before #8311400)

1шт.

5

F1440

CIRCLE - R.H., concave

1шт.

6

F1439

CIRCLE - L.H., concave

1шт.

F81191

CONCAVE - front (Replaced by F92470 when exhausted)

1шт.

7

F92470

CONCAVE - front (Replaces F81191 when exhausted)

1шт.

F16793

CONCAVE - grain, less teeth (See ref. 11)

1шт.

8

O236T

NUT

36шт.

9

194-8

LOCKWASHER

36шт.

10

B18066

TOOTH

36шт.

F81188

CONCAVE - grain (Replaced by F92467 when exhausted)

1шт.

F92467

CONCAVE - grain (Replaces F81188 when exh.)

1шт.

11

F16793

CONCAVE - grain, less teeth

1шт.

O236T

NUT

36шт.

194-8

LOCKWASHER

36шт.

B18066

TOOTH

36шт.

12

F81903

CONCAVE - open grate

1шт.

13

F16828

CONCAVE - blank

1шт.

14

F16795

COVER - front concave slot

1шт.

15

F81193

REINFORCEMENT - side sheet, R.H.

1шт.

F81194

REINFORCEMENT - side sheet, L.H. (Not shown)

1шт.

16

F16789

SHAFT

- rear concave

1шт.

PIN - cotter, 1/8" x 1-1/4" (132-50)

2шт.

17

F16031

COVER - slot, rear concave shaft

4шт.

18

O3914CS

SPRING - slot cover

2шт.

19

A26436

WASHER - spring retainer

2шт.

20

F84305

ARM - rear concave adjustment

2шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. (For F84305)

4шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (For F84305)

2шт.

24

F21434

SPACER

- concave arm

2шт.

F82490

TINE ASSEMBLY - (Replaced by F84890)

1шт.

25

F84890

TINE ASSEMBLY - (Replaces F82490 when stocks are exhausted)

1шт.

26

F84879

HINGE - grate tine support, assembly (Replaces F17854 and F16788 when stocks are exhausted)

1шт.

F84887

TINE

SUPPORT ASSEMBLY - tine

1шт.

27

F18171

TINE

S - grate

22шт.

BOLT - 1/4" x 3/4" N.C. rhd. sq. nk. (11-412) and Nut (25-104) L.W. (92-4)

22шт.

28

F17826

STRIP

- bolting

1шт.

29

N1331

SPACER - rear tine assembly support

2шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) Nut (25-115) and L.W. (92-5)

2шт.

O1594N

WASHER - (Not shown)

2шт.

F18091

STRIP - bolting, concave grate tine shield (See page 80, ref. 29)

2шт.

F82189

SHIELD - concave grate tine (Similar to ref. 28, page 80)

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

8шт.

F81199

CONCAVE - front, large bean (Includes 19-ref. 8, 19-ref. 9, 2-ref. 10 and 17-ref. 30)

1шт.

30

B18067

TOOTH

- (25/32" O.D. base)

17шт.

F81201

CONCAVE - front, less teeth

1шт.

F81202

CONCAVE - center and rear, large bean (Includes 19-ref. 8, 19-ref. 9 and 17-ref. 30)

2шт.

F16799

CONCAVE - center and rear (Less teeth)

2шт.

F81204

CONCAVE - front 3 row tooth for clover (Includes 54 ref. 8 and 54 ref. 9)

1шт.

31

B18068

TOOTH - (3/4" O.D. base)

54шт.

F16801

CONCAVE - front (Less teeth) (Order F81304)

1шт.

F81242

CONCAVE - center and rear 3 row tooth for clover (Includes 54-ref. 8, 54-ref. 9, 54-ref. 31 and 1-F16801)

2шт.

F82169

CONCAVE - front, small bean (Includes 19-ref. 8, 19-ref. 9, 2-ref. 10, 17-ref. 32 and 1-F81201)

1шт.

32

B18270

TOOTH - (1" O.D. base)

2шт.

F82171

CONCAVE - center and rear, small bean (Includes 19-ref. 8, 19-refl. 9, 2-ref. 10, 17-ref. 32 and 1-F16799)

2шт.

F82172

CONCAVE - front, grain tooth bean (Includes 19-ref. 8, 19-ref. 9, 19-ref. 10 and 1-F81201)

1шт.

F82173

CONCAVE - center and rear, grain tooth bean (Includes 19-ref. 8, 19-ref. 9, 19-ref. 10 and 1-F16799)

2шт.

F82685

CONCAVE - front, 4 row tooth for clover (Includes 72-ref. 8, 72-ref. 9 and 72-ref. 30)

1шт.

F18989

CONCAVE - front, center or rear (Less teeth)

1шт.

F82686

CONCAVE - center and rear, 4 row tooth for clover (Includes 72-ref. 8, 72-ref. 9, 72 ref. 30 and 1-F18989)

2шт.
