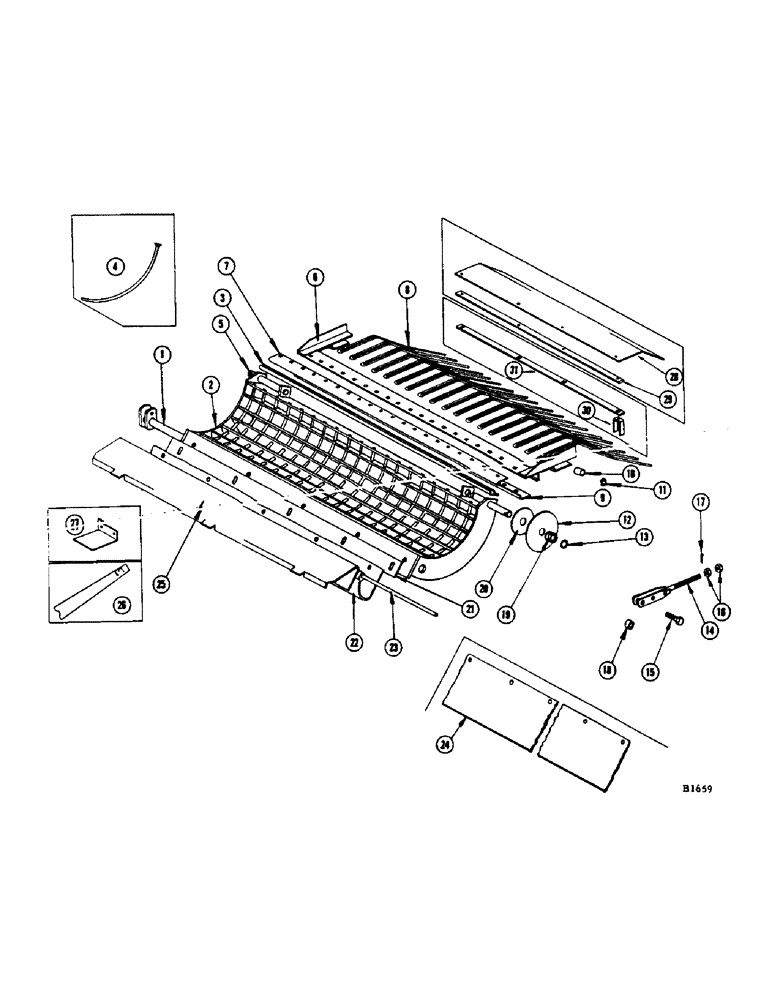

Запчасти Case IH 960 (080) - CONCAVES TINES & REMOVABLE FEED PLATE RUB BAR (66) - THRESHING

1

F81319

SHAFT - front concave

1шт.

2

F83531

CONCAVE

1шт.

3

F83522

HINGE - grate tine

1шт.

4

F21430

TINE - concave

39шт.

F21431

RETAINER - rod, between ref. 3 hinge and concave

1шт.

F17825

HINGE

- support (See ref. 7)

1шт.

5

F18523

SHAFT - stub, rear concave

2шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

2шт.

F82485

TINE ASSEMBLY - (Replaced by F84886)

1шт.

6

F84886

GRATE

TINE ASSEMBLY - (Replaces F82485 when stocks are exhausted)

1шт.

F84887

TINE

SUPPORT ASSEMBLY - tine

1шт.

7

F17825

HINGE

- support

1шт.

8

F18171

TINE

S - grate

22шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Nut and L.W.

22шт.

9

F17826

STRIP

- bolting

1шт.

10

N1331

SPACER - rear tine assembly support (Replaces O390Z)

2шт.

BOLT - 5/16" x 1-1/2" N.C. hex. (14-524) Nut and L.W.

2шт.

11

O1594N

WASHER - for (14-524) Bolt and N1331 spacer

2шт.

12

F16031

COVER - slot, rear concave shaft

2шт.

13

A26346

WASHER - spring retainer

2шт.

14

F84305

ARM - rear concave adjustment

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

and L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. (For F84305)

4шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (For F84305)

2шт.

18

F21434

SPACER

- rear concave arm

2шт.

19

O3914CS

SPRING - slot cover

2шт.

20

F16032

SPACER - rear concave

2шт.

21

F16025

PLATE

- wear, concave

1шт.

22

F22364

SEAL - canvas (#8311400 and after)

1шт.

23

F22365

SEAL - rod (#8311400 and after)

1шт.

24

F21432

SPACER

SEAL - (Metal) feed plate (Before #8311400)

1шт.

25

F80847

LARGE PLATE

FEED PLATE - cylinder, regular feed plate - grain combine

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6) and Fl. wshr. (95-6)

5шт.

F83317

FEED PLATE - cylinder, regular feed plate - 960 special

1шт.

26

F16941

GAUGE - concave clearance

1шт.

27

F16778

COVER - cylinder side sheet

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115) and L.W. (92-5)

4шт.

28

F82190

SHIELD - concave grate tine

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4), concave grate tine shield att.

8шт.

29

F18091

STRIP - bolting, rub bar concave filler strip att.

2шт.

30

F17888

RETAINER - concave filler strip, rub bar concave filler strip att.

20шт.

F19485

RETAINER - concave filler strip, rub bar concave filler strip att.

4шт.

31

F17887

STRIP - concave filler, rub bar concave filler strip att.

6шт.

BOLT - 5/16" x 3-1/4" (111-223) Nut (129-102) L.W. (192-20), rub bar concave filler strip att.

24шт.

F91848

STRIP - concave filler (Can replace F17887), magnetic filler bar attachment

6шт.
