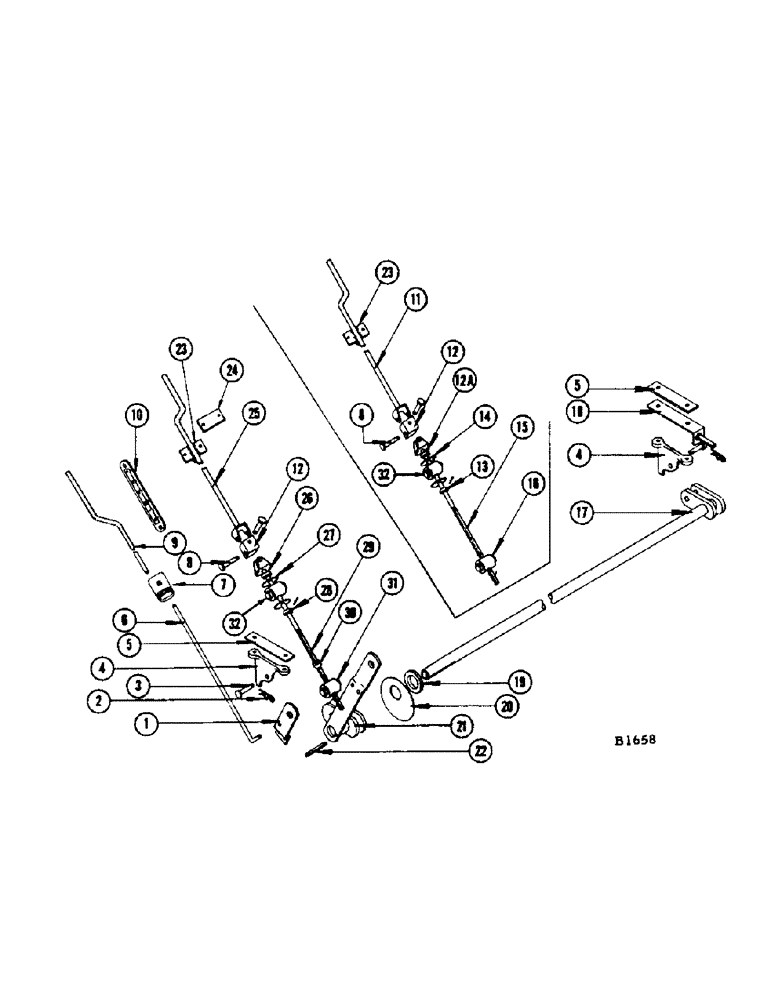

Запчасти Case IH 960 (078) - CONCAVE ADJUSTING LEVER AND LINKAGE (66) - THRESHING

1

F17553

RETAINER - trunnion

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5)

2шт.

2

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Adjustment bracket 3/8" x 1.060"

2шт.

4

F1413

HANGER - concave, front R.H. and L.H.

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116)

4шт.

5

F16041

SHIM - front concave hanger

3шт.

6

F18708

ROD - gauge, concave clearance indicator, lower

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

1шт.

7

F18707

CLAMP - for ref. 9, 11 and 25 rods

2шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) Nut (25-104)

1шт.

8

F62238

PIN - for F17556 cross

2шт.

PIN - cotter 3/32" x 5/8" (132-25)

2шт.

9

F21592

ROD - gauge, concave clearance indicator, upper

1шт.

10

F17827

GAUGE - concave clearance

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201) Nut (129-101)

2шт.

WASHER - 1/4" flat (195-518) Lockwasher (192-19)

2шт.

11

F84379

CRANK - concave adjustment (Before #8311400)

1шт.

12

F17556

CROSS - universal joint (Replaced by F22933 when exh.)

1шт.

F22933

CROSS - "U" joint (Replaces F17556 when stocks are exh.)

1шт.

45-524

RIVET - 5/16" x 1-1/2" rd. hd. (For F22933)

2шт.

193-92

LOCK WASHER,Int Tooth, 5/16"

SPRINGRIP - 5/16" rivet

2шт.

12a

A28893

BUSHING

SPACER - adjustment screw (Before #8311400)

1шт.

13

FB14157

COLLAR - adjustment screw (Before #8311400)

1шт.

14

A26381

WASHER

- adjustment screw (Before #8311400)

2шт.

15

F83272

SCREW - adjustment, front concave (Before #8311400)

1шт.

PIN - groove 1/8" x 1" (135-328)

1шт.

NUT - 1/2" N.F. hex. jam (25-148)

2шт.

16

F17552

TRUNNION - adjustment screw (Before #8311400)

1шт.

17

F81319

SHAFT - front concave

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

18

F80850

BRACKET - concave hanger adjustment, R.H.

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

19

O1611CH

SPACER - front concave shaft

1шт.

20

F16034

COVER - slot, front concave shaft

2шт.

21

F80856

LEVER - adjustment

1шт.

SCREW - 5/16" x 1/2" N.C. sq. hd. set (85-58)

1шт.

22

T25070

KEY

- ref. 21 lever

1шт.

23

F21593

CLIP - crank anchor

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., nut and lockwasher

2шт.

24

F22168

SHIM - anchor clip (V.S. cylinder drive only)

2шт.

25

F91805

CRANK - concave adjustment (#8311400 and after)

1шт.

26

F22332

SPACER - adjustment screw (#8311400 and after)

1шт.

27

F22333

WASHER - adjustment screw (#8311400 and after)

2шт.

28

F22334

COLLAR - adjustment screw (#8311400 and after)

1шт.

29

F91804

SCREW - adjustment, front concave (#8311400 and after)

1шт.

ROLL PIN - 1/8" x 1" (138-61)

1шт.

NUT - 1/2" N.F. hex. jam (25-1410)

1шт.

30

F17354

SPACER - used with F91804

2шт.

31

F22335

TRUNNION - adjustment screw (#8311400 and after)

1шт.

32

NSS

NOT SOLD SEPARAT

TRUNNION - adjustment screw, Serial Range: (Welded-platform)

1шт.
