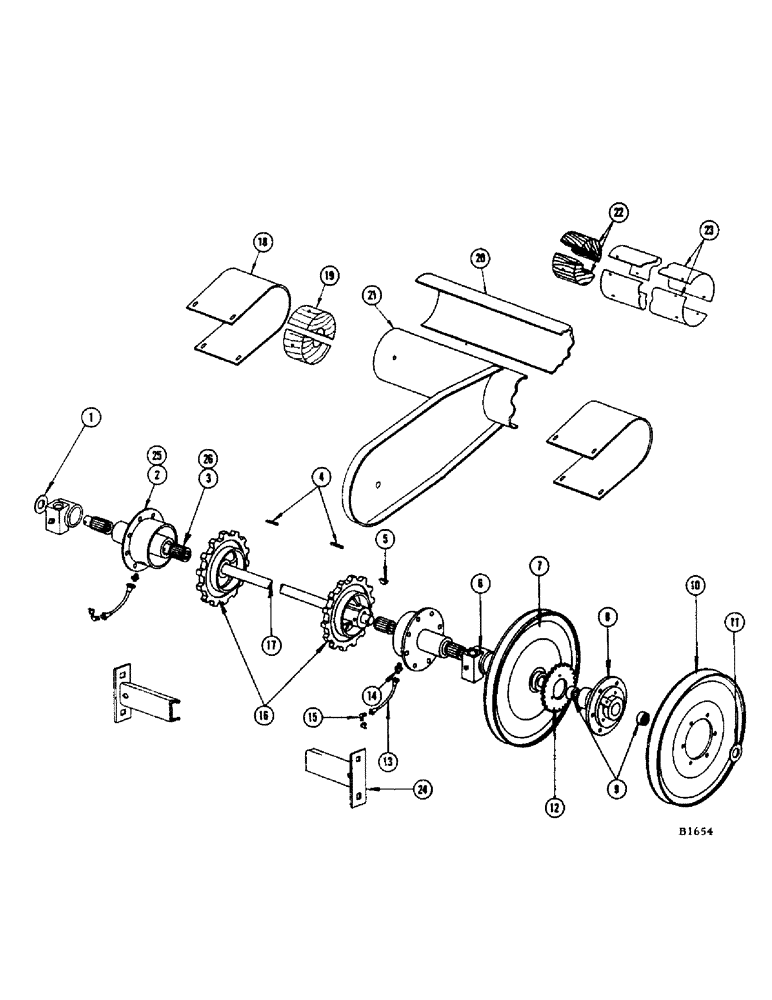

Запчасти Case IH 960 (076) - FEED RAKE UPPER SHAFT (60) - PRODUCT FEEDING

1

T25644

WASHER

- R.H. (For F20900 shaft)

2шт.

2

F83069

HUB - pivot plate (Before #8334601)

2шт.

3

F15709

BUSHING

2шт.

46-412

RIVET,Csk, 1/4" x 13/16"

- 1/4" x 3/4" ctsk. hd.

14шт.

4

F20957

KEY - sprocket to F20900 shaft

2шт.

F22401

KEY - sprocket to F22411 shaft

2шт.

5

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

Ref. 7 sheave to shaft #B, 5/16" x 1", HT

1шт.

6

F83093

BEARING

BLOCK - header pivot bearing, upper feeder rake shaft

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

2шт.

7

F81743

SHEAVE - inside, drives upper feeder rake shaft

1шт.

8

F81746

HUB - header drive

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

9

F19478

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 19.05mm W

BEARING

2шт.

10

F81287

SHEAVE - header drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

1шт.

11

F62110

WASHER - both ends of shaft

2шт.

12

F17454

SPROCKET - (30T) drive, upper feeder rake shaft

1шт.

BOLT - 3/8" x 2-1/2" N.F. hex. (14-640) Nut (25-116)

3шт.

92-6

LOCK WASHER,3/8"

3шт.

13

F15710

OIL LINE - bearing

2шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

O3048CK

X

UNION - grease line, pivot plate hub

2шт.

15

O3049CK

ELBOW - grease line

2шт.

16

F1685

SPROCKET - (15T) Grain combine (Before #8334601)

2шт.

F1716

SPROCKET - (15T) Grain combine (#8334601 and after)

2шт.

F1684

SPROCKET - (13T) 960 special (Before #8311400)

2шт.

F1712

SPROCKET - (13T) 960 special (#8311400 and after)

2шт.

SCREW - 3/8" x 1" N.C. sq. hd. cup pt. set (85-616)

2шт.

NUT - 3/8" jam (25-146)

2шт.

17

F20900

SHAFT

- upper feeder rake, grain combine (Also 960 special, before #8311400)

1шт.

F22411

SHAFT - upper feeder rake (960 special, #8311400 and after)

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

O5824A

WASHER - between ref. 7 sheave and ref. 8 hub

1шт.

18

F19567

SHIELD - end, anti-wrap

2шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612), anti-wrap shields

8шт.

NUT - 3/8" (25-106) L.W. (92-6), anit-wrap shields

8шт.

19

F4349

SUPPORT - shield, upper feed rake shaft, grain combine (#8311400 and after), anti-wrap shields

4шт.

F4352

SUPPORT - shield, upper feed rake shaft (960 special, #8311400 to #8371001), anti-wrap shields

4шт.

F4357

SUPPORT - shield, upper feed rake shaft (#8371001 and after), anti-wrap shields

2шт.

186-71

SCREW - #12 x 1 rh. hd. wood, anti-wrap shields

8шт.

20

F22249

SHIELD - center, anti-wrap (#8311400 and after), anti-wrap shields

1шт.

21

F84928

SHIELD - outer, anti-wrap (#8311400 and after), anti-wrap shields

1шт.

22

F4338

SUPPORT - shield, upper feed rake shaft (Both grain and 960 special, before #8311400), anti-wrap shields

6шт.

SCREW - #12 x 1" rhd. wood (186-71), anti-wrap shields

12шт.

23

F18059

SHIELD - center, anti-wrap (Before #8311400), anti-wrap shields

2шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612), anti-wrap shields

6шт.

NUT - 3/8" (25-106) L.W. (92-6), anti-wrap shields

6шт.

24

F83307

SUPPORT - shield, anti-wrap

2шт.

BOLT - 1/2" x 1" (111-816) Nut (129-108) L.W. (92-8), anti-wrap shields

4шт.

25

F91875

HUB - pivot plate (960 special #8311400 and after - see ref. 2), anti-wrap shields

2шт.

26

10545K

BUSHING

anti-wrap shields

2шт.
