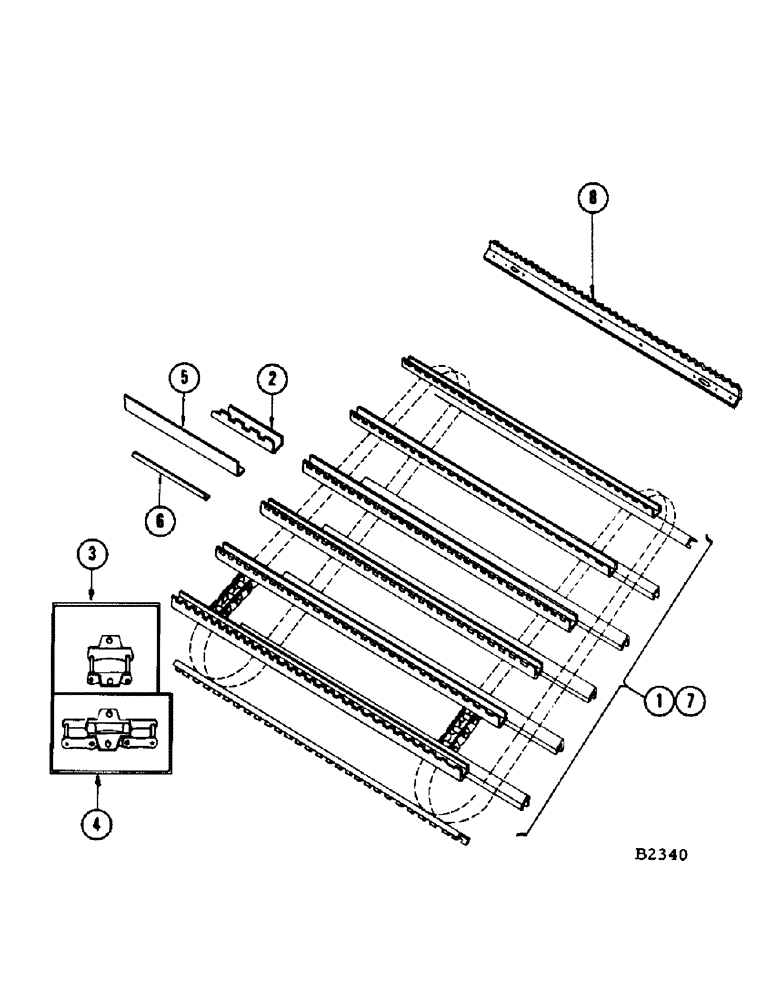

Запчасти Case IH 960 (074) - FEED RAKE GRAIN COMBINE (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
F84455
FEED RAKE - (Consists of 11-F21722 slats, 20-F11698 outside attach. links, 2-inside attach. links, 2-K3915 offset links, 2-K3913 connector links and 100 plain links #A550 roller chain)
1шт.
2
F21722
SLAT - feed rake
11шт.
45-410
RIVET,But Hd, 1/4" x 5/8"
- 1/4" x 5/8" rhd.
44шт.
3
F11698
LINK ASSY.
LINK - conn. attachment
1шт.
4
F79916
LINK - roller attachment (Includes 2 conn. links)
1шт.
K3915
LINK
- offset
1шт.
K3913
LINK
- connector
1шт.
K3914
LINK
- roller
1шт.
F79124
COTTER - hardened (Pkg. of 25)
1шт.
5
F17575
WIPER
STRIP - wiper
5шт.
6
F17576
REINFORCEMENT - wiper strip
5шт.
114-5
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
- 1/4" x 3/4" N.F. hex.
40шт.
129-121
NUT,1/4"-28, G5
40шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
40шт.
7
F84735
FEED RAKE - (Consists of 13-F21722 slats, 22-F11698 outside attach. links, 4-inside attach. links, 2-K3913 connector links and 120 plain links - #A550 roller chain), feed rake 960 special combine
1шт.
2
F21722
SLAT - feed rake, 960 special combine
13шт.
45-410
RIVET,But Hd, 1/4" x 5/8"
- 1/4" x 5/8" rhd., feed rake 960 special combine
52шт.
3
F11698
LINK ASSY.
LINK - conn. attachment, feed rake 960 special combine
1шт.
4
F79916
LINK - roller attachment (Includes 2 conn. links), feed rake, 960 special combine
1шт.
K3913
LINK
- connector, feed rake, 960 special combine
1шт.
K3914
LINK
- roller, feed rake, 960 special combine
1шт.
F79124
COTTER - hardened (Pkg. of 25), feed rake 960 special combine
1шт.
5
F17575
WIPER
STRIP - wiper, feed rake 960 special combine
5шт.
6
F17576
REINFORCEMENT - wiper strip, feed rake, 960 special combine
5шт.
114-5
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
- 1/4" x 3/4" N.F. hex., feed rake, 960 special combine
40шт.
129-121
NUT,1/4"-28, G5
Feed rake, 960 special combine 1/4"-28, G5
40шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Feed rake, 960 special combine 1/4"
40шт.
8
F22410
SAW TOOTH - feed rake attachment, feed rake, 960 special combine
8шт.
114-5
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
- 1/4" x 3/4" N.F. hex., feed rake, 960 special combine
64шт.
129-121
NUT,1/4"-28, G5
Feed rake, 960 special combine 1/4"-28, G5
64шт.
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Feed rake, 960 special combine 1/4"
64шт.
Выбрано товаров: 31
