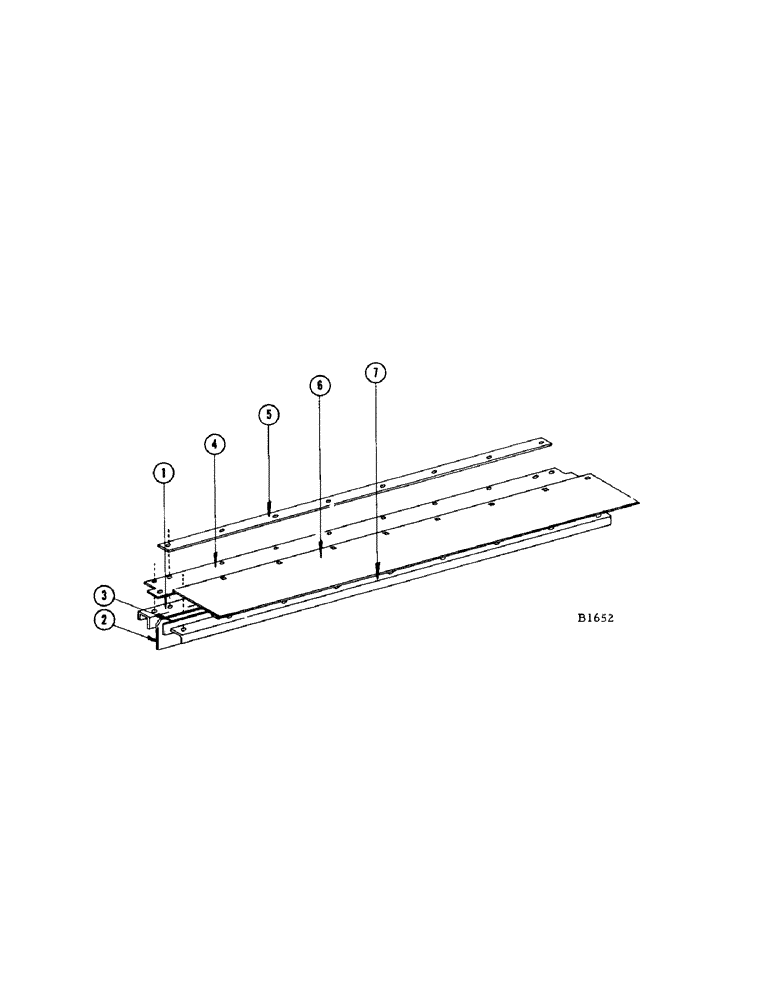

Запчасти Case IH 960 (072) - HINGED FEED PLATE FOR FEEDER SPOUT (60) - PRODUCT FEEDING

1

F22367

REINFORCEMENT - feed plate (Grain #8311400 and after)

1шт.

F15741

REINFORCEMENT - feed plate (Grain, before #8311400)

1шт.

F20265

REINFORCEMENT - feed plate hinge (Special combine)

1шт.

2

F22366

SEAL - rubber (#8311400 and after)

1шт.

3

F22368

STRIP - bolting reinforcement (#8311400 and after)

1шт.

BOLT - 1/4" x 5/8" (11-410) Nut (25-104) L.W. (92-4)

10шт.

4

F18814

HINGE - rubber, for feeder spout (Grain combine)

1шт.

F20264

HINGE - rubber, feeder spout (Special combine)

1шт.

5

F15739

STRIP - bolting, feed plate

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Nut (25-104)

8шт.

6

F22245

FEED PLATE - feeder spout (Grain, #8311400 and after)

1шт.

F18749

FEED PLATE - feeder spout (Grain, before #8311400)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

9шт.

F20266

FEED PLATE - feeder spout (960 special, before #8311400)

1шт.

F22311

PLATE

FEED PLATE - feeder spout (960 special, #8311400 and after)

1шт.

BOLT - 1/4" x 1" N.C. rhd. sq. nk. (11-416) Nut (25-104) L.W.

10шт.

7

F22246

REINFORCEMENT

- feed plate (#8311400 and after)

1шт.
