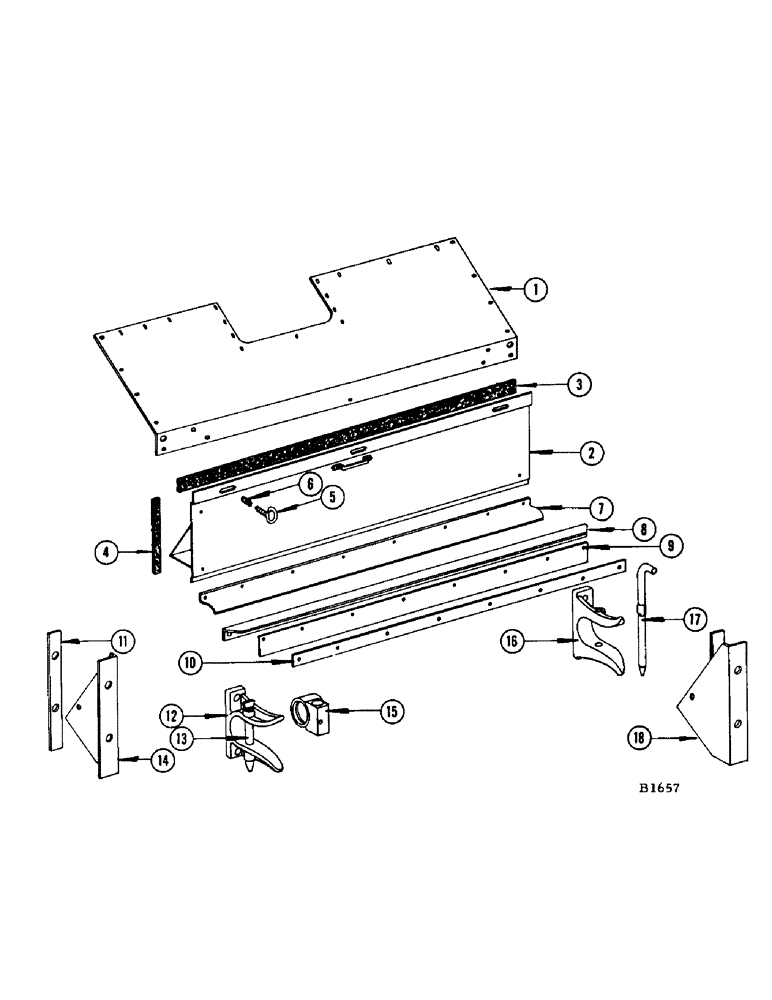

Запчасти Case IH 960 (070) - FRONT DECK (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
F18479
FRONT DECK
1шт.
SCREW - 5/16" x 1/2" N.C. rhd. mach. (75-58) and Nut (25-105) L.W. (92-5)
2шт.
BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) and L.W. (92-6)
6шт.
2
F83090
DOOR - cylinder (Rub bar - chain cylinder drive) (Before #8311400)
1шт.
F83315
DOOR - cylinder (Spike tooth - chain cylinder drive) (Before #8311400)
1шт.
HANDLE - Stanley #479 (228-3)
1шт.
RIVET - 3/16" x 3/8" W.B. hd. (49-36)
2шт.
3
F19316
SEAL - foam (Top) For cylinder door
1шт.
4
F19317
SEAL - foam (Side) For cylinder door
2шт.
2
F84714
DOOR - cylinder (Rub bar - V.S. cylinder drive) Also chain cylinder drive #8311400 and after
1шт.
F84716
DOOR - cylinder (Spike tooth - V.S. cylinder drive) Also chain cylinder drive #8311400 and after
1шт.
3
F22002
SEAL
- top, cylinder door
1шт.
4
F19317
SEAL - side, cylinder door
2шт.
228-3
HANDLE - Stanley #479
1шт.
49-36
RIVET,Truss Hd, 3/16" x 3/8"
- 3/16" x 3/8" W.B. hd.
2шт.
5
F19960
LATCH
BOLT - latch, for cylinder door
3шт.
NUT - 1/4" N.C. hex. (25-104)
6шт.
6
117EB
SPRING
- door latch bolt
3шт.
7
F20192
SHIELD - feeder spout (Spike tooth cylinder only)
1шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) Nut (25-114) and L.W. (92-4)
8шт.
8
F16211
ANGLE - feeder spout (Grain and corn special)
1шт.
F21733
ANGLE - feeder spout (Rice special)
1шт.
BOLT - 7/16" x 1" N.F. hex. (14-716) Nut (25-117) L.W. (92-7)
2шт.
9
F16213
SEAL
- feeder spout angle
1шт.
10
F16214
STRIP - backing
1шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) Nut (25-114) and L.W. (92-4)
8шт.
11
F18745
SPACER - cylinder post scuff plates, header pivot brackets
2шт.
12
F1105
PIVOT - header, R.H. side, header pivot brackets
1шт.
BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) Nut (25-1110) and L.W. (92-10), header pivot brackets
2шт.
13
F6266
PIN - locking, R.H. side pivot, header pivot brackets
1шт.
14
F18746
PLATE - scuff, cylinder post, R.H. (Regular feed plate), header pivot brackets
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) and L.W. (92-4) Fl. wshr. (95-4), header pivot brackets
1шт.
15
F83093
BEARING
BLOCK - header pivot bearing, header pivot brackets
2шт.
FITTING - grease 1/4" str. (219-8), header pivot brackets
2шт.
16
F1105
PIVOT - header, L.H. side, header pivot brackets
1шт.
BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) Nut (25-1110) and L.W. (92-10), header pivot brackets
2шт.
17
F17831
PIN - locking, L.H. side pivot, header pivot brackets
1шт.
18
F18747
PLATE - scuff, cylinder post, L.H. (Regular feed plate), header pivot brackets
1шт.
F18748
PLATE - scuff, cylinder post (Rice special or stone trap), header pivot brackets
2шт.
BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) and L.W. (92-4) Fl. wshr. (95-4), header pivot brackets
1шт.
Выбрано товаров: 40
