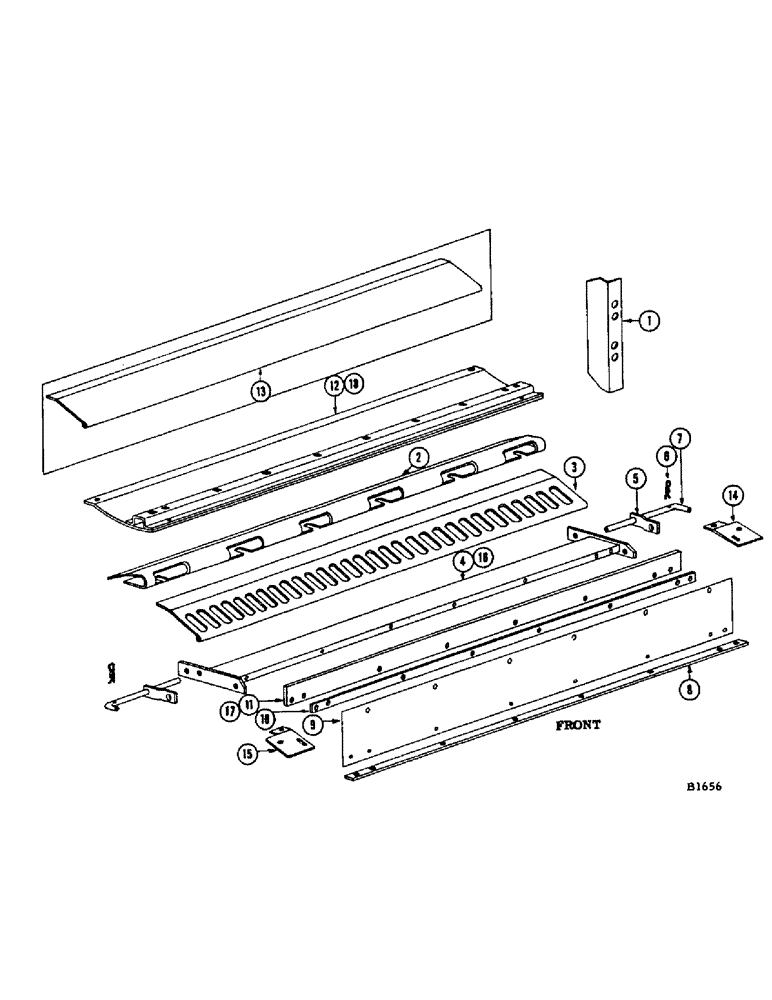

Запчасти Case IH 960 (068) - STONE TRAP (60) - PRODUCT FEEDING

1

F18748

PLATE - scuff, cylinder posts (Not part of stone trap attachment, but can be used in place of F18746 and F18747 plates)

1шт.

2

F17917

FEED PLATE - concave

1шт.

3

F18819

FEED PLATE - perforated

1шт.

4

F82067

PLATE - seal mounting

1шт.

114-104

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- 5/16" x 1" N.F. hex., nut and L.W.

2шт.

5

F17918

BRACKET - locking pin

2шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

6

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

7

F17916

PIN - locking, feed plate

2шт.

8

F21486

STRIP - bolting, front grain pan seal

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach., nut and lockwasher

8шт.

9

F21485

SEAL - front, grain pan

1шт.

10

F17910

STRIP - bolting, feeder seal and grain pan seal

2шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach., nut and L.W.

8шт.

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. rhd. mach., nut and L.W.

8шт.

11

F17908

SEAL - rubber, feeder

1шт.

12

F82068

PLATE - seal, feeder

1шт.

13

F18245

FEED PLATE - solid (Can be used in place of F18819)

1шт.

14

F17911

SHIELD - corner, L.H.

1шт.

15

F17912

SHIELD - corner, R.H.

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

F15739

PLATE - filler (See page 72)

1шт.

F20449

FEED PLATE - (Use in place of F17917 and F18819), deep sump stone trap

1шт.

16

F83314

PLATE - seal mounting, front grain pan, regular feed plate, 960 special combine

1шт.

17

F20252

SEAL - rubber, feeder, regular feed plate, 960 special combine

1шт.

18

F82891

PLATE - seal, feeder, regular feed plate, 960 special combine

1шт.

F83317

FEED PLATE - concave, regular feed plate, 960 special combine

1шт.
