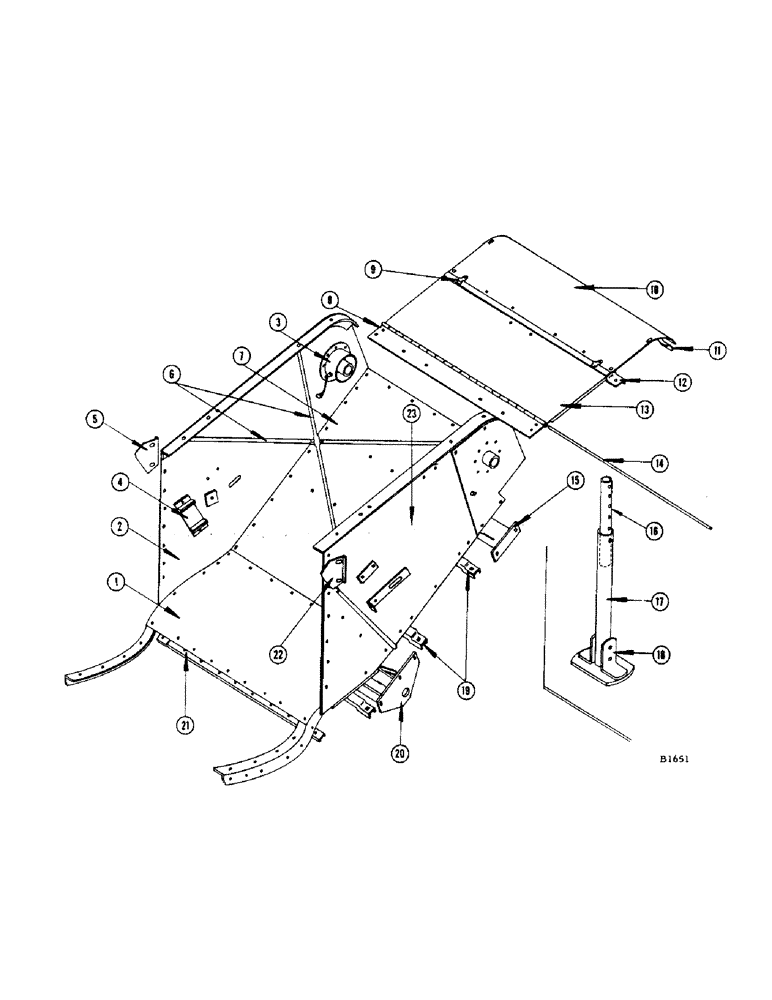

Запчасти Case IH 960 (066) - FEEDER SPOUT, BEFORE NUMBER 8311400 (60) - PRODUCT FEEDING

1

F15730

FLOOR - lower (Grain combine)

1шт.

F18958

SCREW

FLOOR - lower (960 special)

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

8шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk.

6шт.

25-104

NUT,1/4"-20, G5

14шт.

2

F84278

SIDE SHEET - R.H. (Grain combine)

1шт.

F84280

SIDE SHEET - R.H. (960 special)

1шт.

3

F83069

HUB - pivot plate

1шт.

F15709

BUSHING - see upper feed rake shaft illustration

2шт.

46-412

RIVET,Csk, 1/4" x 13/16"

- 1/4" x 3/4" ctsk. hd.

7шт.

O3048CK

X

UNION - grease line (See upper feed rake shaft illustration)

1шт.

O3049CK

ELBOW - grease line (See upper feed rake shaft illustration)

1шт.

4

F82074

BRACKET

SUPPORT - lower, feed rake

2шт.

5

F16842

SHIELD - dust, R.H.

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

1шт.

25-104

NUT,1/4"-20, G5

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16"

1шт.

6

F16822

BRACE - cross, grain combine

2шт.

F18964

SCREW

BRACE - cross (960 special)

2шт.

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex.

2шт.

25-118

NUT,1/2"-20, G5

- 1/2"

2шт.

7

F15737

FLOOR - upper, grain combine

1шт.

F18957

FLOOR - upper (960 special)

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

10шт.

25-104

NUT,1/4"-20, G5

10шт.

8

F16851

HINGE STRIP - door, grain combine

1шт.

F18962

SCREW

HINGE STRIP - door (960 special)

1шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk.

6шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

9

F86525

CLIP

- spring, door

2шт.

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- #10 x 5/8" N.C. mach.

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

F15717

SHEET - top

1шт.

11

F16826

ANGLE - top rear

1шт.

12-48

BOLT - 1/4" x 1/2" rd. shank sq. nk.

4шт.

12

F16832

ANGLE - reinforcement

1шт.

12-48

BOLT - 1/4" x 1/2" rd. shank sq. nk.

4шт.

13

F80727

DOOR

1шт.

228-3

HANDLE - Stanley #479

1шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

2шт.

14

F15764

ROD - hinge, feeder door

1шт.

15

F80718

CHANNEL - cross

1шт.

16

F20274

EXTENSION - support stand (960 special)

1шт.

17

F18498

PIPE - header support stand

1шт.

14-636

SCREW,Hex, 3/8" - 24 x 2 1/4", Gr 5

BOLT - 3/8" x 2-1/4" N.F. hex.

2шт.

18

F81722

BASE - header stand

1шт.

19

F15738

REINFORCEMENT - feeder spout floors

1шт.

BOLT - 1/4" x 5/8" N.C. rhd. sq. nk. (11-410) Nut (25-104)

1шт.

20

F82503

CHANNEL

- header, torque tube lower cross (Replaces F92651 when stocks are exhausted)

1шт.

F92651

CHANNEL

- header, torque tube lower cross (Replaces F82503 when stocks are exhausted)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

5шт.

92-6

LOCK WASHER,3/8"

5шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8"

5шт.

21

F17871

REINFORCEMENT - lower feeder spout floor

1шт.

22

F16843

SHIELD - dust, L.H.

1шт.

23

F84275

SIDE SHEET - L.H. (Grain combine) Includes ref. 3 & fittings

1шт.

F84277

SIDE SHEET - L.H. (960 special) Includes ref. 3 & fittings

1шт.
