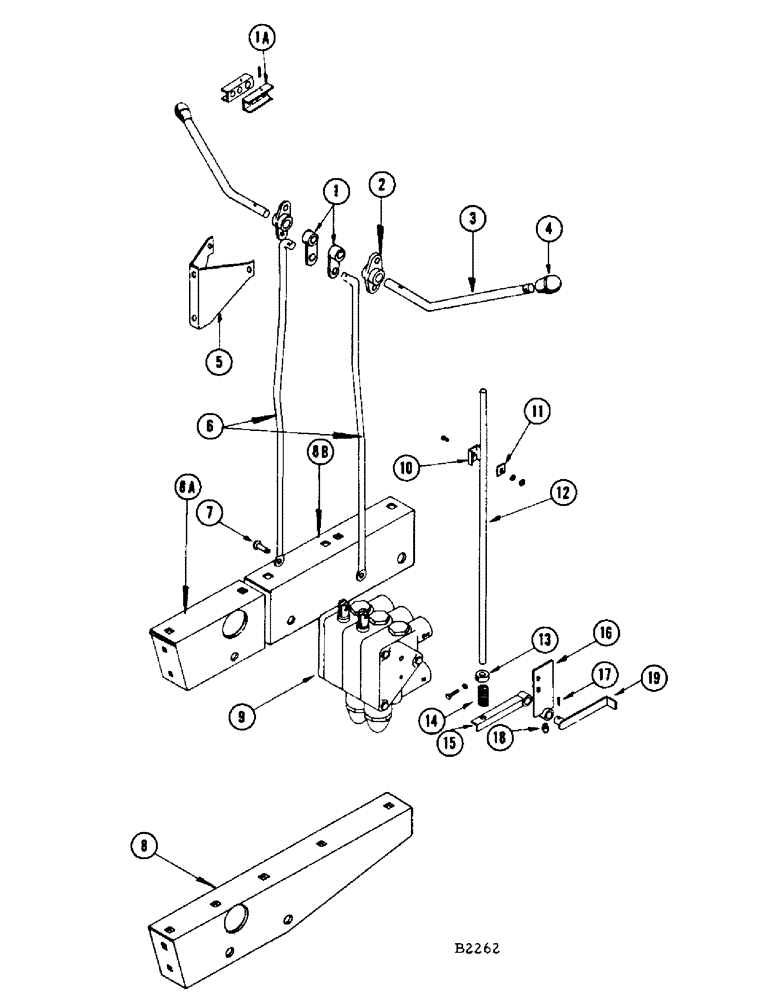

Запчасти Case IH 960 (282) - CONTROL LINKAGE HEADER LIFT & VARIABLE SPEED (58) - ATTACHMENTS/HEADERS

1

F91843

ARM - control lever (Replaces F21584 when stocks are exh.)

2шт.

1a

F21584

ARM - control lever (Replaced by F91843)

2шт.

2

F1466

BEARING - lever

2шт.

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- 1/4" x 3/4" N.C. rhd. mach., nut and L.W.

4шт.

3

F21583

CARRIAGE BOLT

LEVER - control, header lift and variable speed

2шт.

135-401

PIN - 3/16" x 1-1/8" drive lock type 3

2шт.

4

F5301

KNOB

2шт.

5

F21582

BRACKET - control lever support

1шт.

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. rhd. mach., nut and L.W.

2шт.

6

F20914

ROD - hydraulic valve control

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

8

F21556

BRACKET - valve mounting, R.H. (Before #8311400)

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk., nut and L.W.

5шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

8a

F22319

BRACKET - valve mounting, R.H. front (#8311400 thru #8358000)

1шт.

F22966

BOLT

BRACKET - valve mounting, R.H. front (#8358001 and after)

1шт.

8b

F91781

BRACKET - valve mounting, R.H. rear (#8311400 thru #8358000)

1шт.

F22965

BOLT

BRACKET - valve mounting, R.H. rear (#8358001 and after)

1шт.

F22964

BOLT

SPACER - (#8358001 and after) Manual unloading auger

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk., nut and L.W.

4шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

9

F87262

VALVE

- hydraulic control (Before #8311400)

1шт.

F87181

VALVE

- hydraulic control (#8311400 and after) Manual unloading auger

1шт.

F94386

VALVE - hydraulic control (Hydraulic unloading auger)

1шт.

10

F21177

CLAMP - V.S. kickdown rod, variable speed kickdown device, 960 special combine

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , Nut and L.W., Variable speed kickdown device, 960 special combine Short NK, 5/16"-18 x 1", G2

1шт.

11

F21178

RETAINER - clamp, variable speed kickdown device, 960 special combine

1шт.

12

F21176

ROD - variable speed kick down device, 960 special combine

1шт.

13

F10117

COLLAR, variable speed kickdown device, 960 special combine

1шт.

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4" x 7/8" N.F. hex. and nut, variable speed kickdown device, 960 special combine

1шт.

14

230EB

SPRING, variable speed kickdown device, 960 special combine

1шт.

15

F84057

ARM - V.S. kick down, variable speed kickdown device, 960 special combine

1шт.

16

F84055

SUPPORT - pivot, variable speed kickdown device, 960 special combine

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

and L.W., variable speed kickdown device, 960 special combine Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

17

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Variable speed kickdown device, 960 special combine 1/8" x 1 1/8", Slotted

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, Variable speed kickdown device, 960 special combine

1шт.

19

F84056

ARM - V.S. release, variable speed kickdown device, 960 special combine

1шт.
