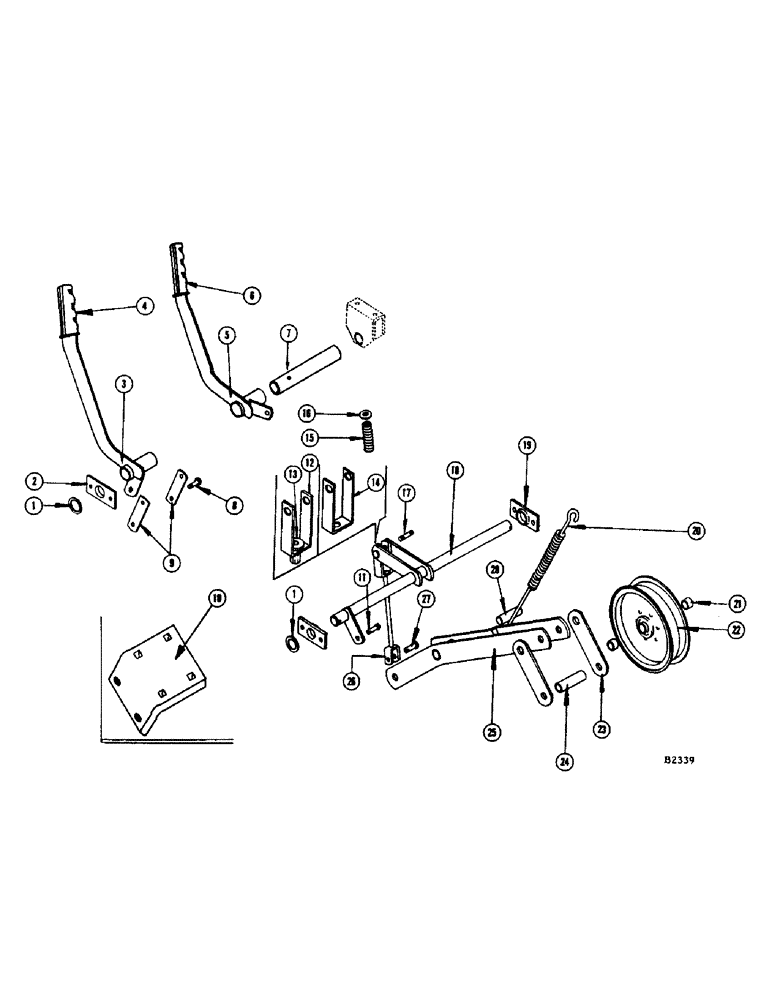

Запчасти Case IH 960 (064) - HEADER DRIVE THROWOUT PIVOT SHAFT (58) - ATTACHMENTS/HEADERS

1

O906B

WASHER

- pivot shaft

3шт.

2

F17298

BRACKET - bearing, pivot shaft

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

3

F84362

LEVER - main header throwout

1шт.

4

F13012

SCREW

GRIP - hand lever, header throwout

1шт.

5

F84363

LEVER - combine control

1шт.

6

F13011

SCREW

GRIP - hand lever, combine control

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/4" - 28

2шт.

95-3

WASHER,#12

- 1/4" flat

2шт.

7

F17303

SHAFT - control lever

1шт.

8

B18213

PIN - connecting link

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

9

F17307

LINK - connecting

2шт.

10

F21560

STOP - over center, header drive throwout

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

and jam nut (25-156) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk., nut and L.W.

4шт.

11

B18213

PIN - connecting link, header drive throwout linkage

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Header drive throwout linkage 1/8" x 3/4"

1шт.

12

F22356

CLEVIS - for ref. 26 link (#8311400 and after), header drive throwout linkage

1шт.

13

F19583

BUSHING - for F22356 clevis, header drive throwout linkage

1шт.

14

F19376

CLEVIS - (When stocks are exhausted use 1 each F22356 and F19583), header drive throwout linkage

1шт.

15

O1826CH

SPRING - for F82793 link, header drive throwout linkage

1шт.

16

O58BL

WASHER - for F82793 link, header drive throwout linkage

1шт.

17

70137

PIN - for F19376 clevis, header drive throwout linkage

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Header drive throwout linkage 1/8" x 1"

2шт.

18

F84364

SHAFT - header throwout, header drive throwout linkage

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), , Header drive throwout linkage 3/16" x 1 1/2"

2шт.

19

F17298

BRACKET - bearing, throwout shaft, header drive throwout linkage

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut and lockwasher, header drive throwout linkage

4шт.

20

O5646HT

SPRING - header belt tightener, header drive throwout linkage

1шт.

21

F17354

SPACER - header drive idler, header drive throwout linkage

2шт.

22

F80073

PULLEY ASSY.

SHEAVE - (8" O.D.) tightener, header drive, header drive throwout linkage

1шт.

BOLT - 5/8" x 3-1/2" N.F. hex. (14-1056) Nut and L.W., header drive throwout linkage

1шт.

23

F17355

BOLT

STRAP - header belt retainer, header drive throwout linkage

2шт.

BOLT - 5/16" x 3-1/4" N.F. hex. (14-552) Nut and L.W., header drive throwout linkage

1шт.

24

F20190

SPACER,1/4" Pipe x 2 1/2"

- header drive belt retainer, header drive throwout linkage

1шт.

25

F81676

ARM - header belt tightener, header drive throwout linkage

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Header drive throwout linkage 1/4"-28 NPT x .54" lg

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Header drive throwout linkage 3/16" x 1"

1шт.

26

F82793

LINK - throwout, header drive throwout linkage

1шт.

NUT - 5/16" N.C. jam (25-115), header drive throwout linkage

2шт.

27

O1235HT

PIN - for F81676 arm (Ref. 23), header drive throwout linkage

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Header drive throwout linkage 1/8" x 1"

1шт.

28

F17356

SPACER - (2-1/32" long) For F81676 pivot (Ref. 25), header drive throwout linkage

1шт.

BOLT - 5/16" x 3" N.F. hex. (14-548) Nut (25-115) L.W. (92-5), header drive throwout linkage

1шт.

F17460

BELT

"V" BELT - header drive (Replaced by F22398), header drive throwout linkage

1шт.

F22398

BELT

Header Drive, Replaces F17460 When Stocks are Exhausted, Header Drive Throwout Linkage

1шт.

F18517

GUIDE - header drive belt (Not shown - bolts to L.H. side sheet), header drive throwout linkage

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5), header drive throwout linkage

1шт.

WASHER - 5/16" flat (95-5), header drive throwout linkage

1шт.

F18518

CLIP - guide, header drive belt (Not shown - bolts to L.H. side sheet), header drive throwout linkage

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115) L.W. (92-5), header drive throwout linkage

1шт.
