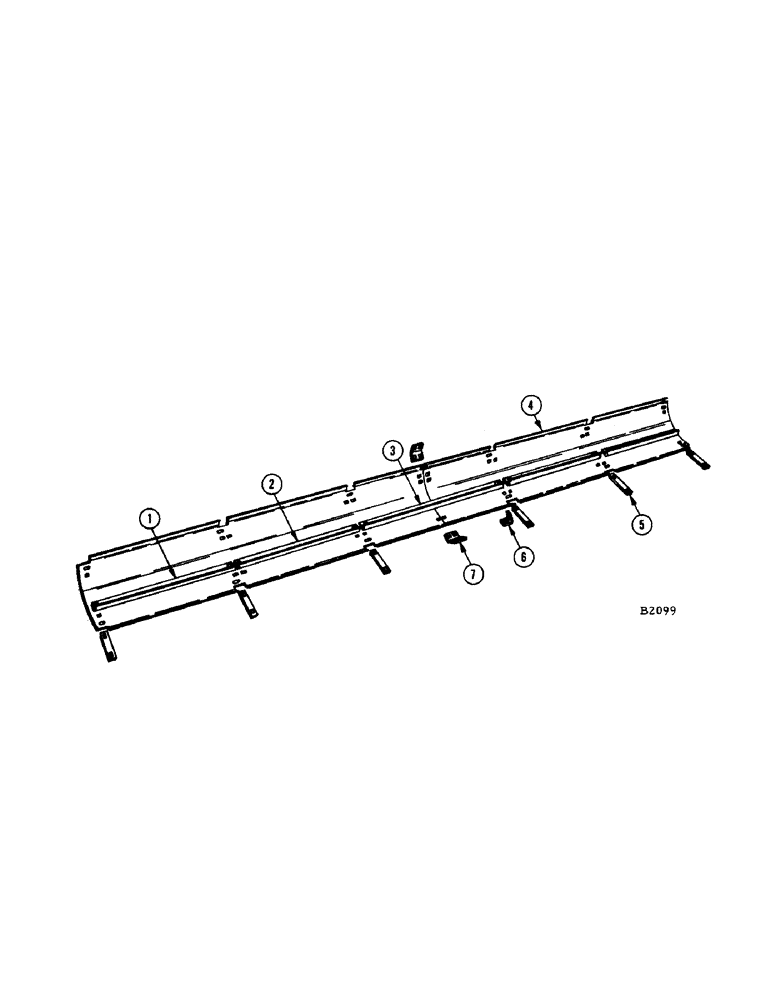

Запчасти Case IH 960 (060) - HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F19994

REINFORCEMENT - outer, skid plate (13 ft. header)

2шт.

F20063

REINFORCEMENT - outer, skid plate (14 ft. header)

2шт.

F22539

REINFORCEMENT - outer, skid plate (16 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) Nut (129-103)

4шт.

LOCKWASHER - 3/8" (192-21)

4шт.

2

F19993

REINFORCEMENT - inner, skid plate (13' and 14' headers)

2шт.

F22538

REINFORCEMENT - inner, skid plate (16 ft. header)

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) Nut (129-103)

4шт.

3

F19992

PACKAGE

REINFORCEMENT - center, skid plate

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) Nut (129-103)

4шт.

LOCKWASHER - 3/8" (192-21)

4шт.

4

F19995

PLATE - header skid (13 ft. header)

2шт.

F19998

PLATE - header skid (14 ft. header)

2шт.

F22540

PLATE - header skid (16 ft. header)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) L.W. (192-21)

6шт.

WASHER - 3/8" flat (195-525)

6шт.

5

F19991

CLIP - front, skid plate

6шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) Nut (129-103)

12шт.

LOCKWASHER - 3/8" (192-21)

12шт.

6

F83117

BRACKET - rear

6шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) Nut (129-122)

3шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

1шт.

7

F19989

SPLICE - skid plate

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) Nut (129-103)

8шт.
