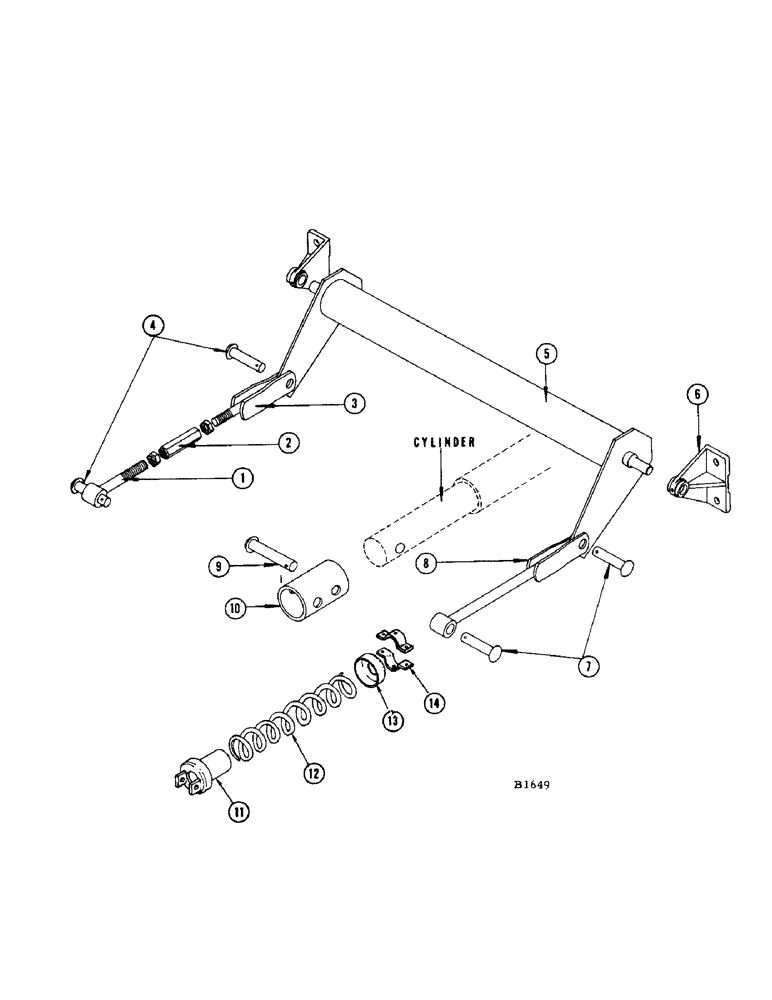

Запчасти Case IH 960 (060[1]) - HEADER SUPPORT TORQUE TUBE, HEADER LIFT EXTENSION ATTACHMENT GRAIN COMBINE,HEADER LIFT SPRING ASSIST (58) - ATTACHMENTS/HEADERS

1

F81991

LINK - front R.H. (L.H. thrd.) Grain combine

1шт.

NUT - 7/8" N.F. jam L.H. thrd. (129-369)

1шт.

F82637

LINK - front R.H. (L.H. thread) 960 special

1шт.

NUT - 7/8" jam L.H. thrd. (129-369)

1шт.

2

F17790

TURNBUCKLE - torque tube link, R.H. side

1шт.

3

F81990

LINK - torque tube, rear R.H. (R.H. thrd.)

1шт.

NUT - 7/8" N.F. jam R.H. thrd. (25-1514)

1шт.

4

F17254

PIN - R.H. torque tube links

2шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

2шт.

5

F82852

TUBE - torque, header support (Grain combine)

1шт.

F82892

TUBE - torque, header support (960 special)

1шт.

6

F1487

BRACKET - mounting

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) Nut (129-123)

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

F60945

PIN - L.H. torque tube links

2шт.

132-152

PIN

- cotter 1/4" x 1-3/4"

2шт.

8

F81989

LINK - torque tube, L.H. (Grain combine)

1шт.

F82636

LINK - torque tube, L.H. (960 special)

1шт.

9

F17830

PIN - for F82909 extension, header lift extension attachment, grain combine

1шт.

132-152

PIN

- cotter 1/4" x 1-3/4", header lift attachment, grain combine

1шт.

10

F82909

LINK - 7-/2" extension (For transport only), header lift attachment, grain combine

1шт.

11

F94093

RETAINER - rear, spring, header lift spring assist

1шт.

12

F9931

SPRING, header lift spring assist

1шт.

13

F53345

CUP - spring retainer, header lift spring assist

1шт.

14

F53463

CLAMP, header lift spring assist

2шт.
