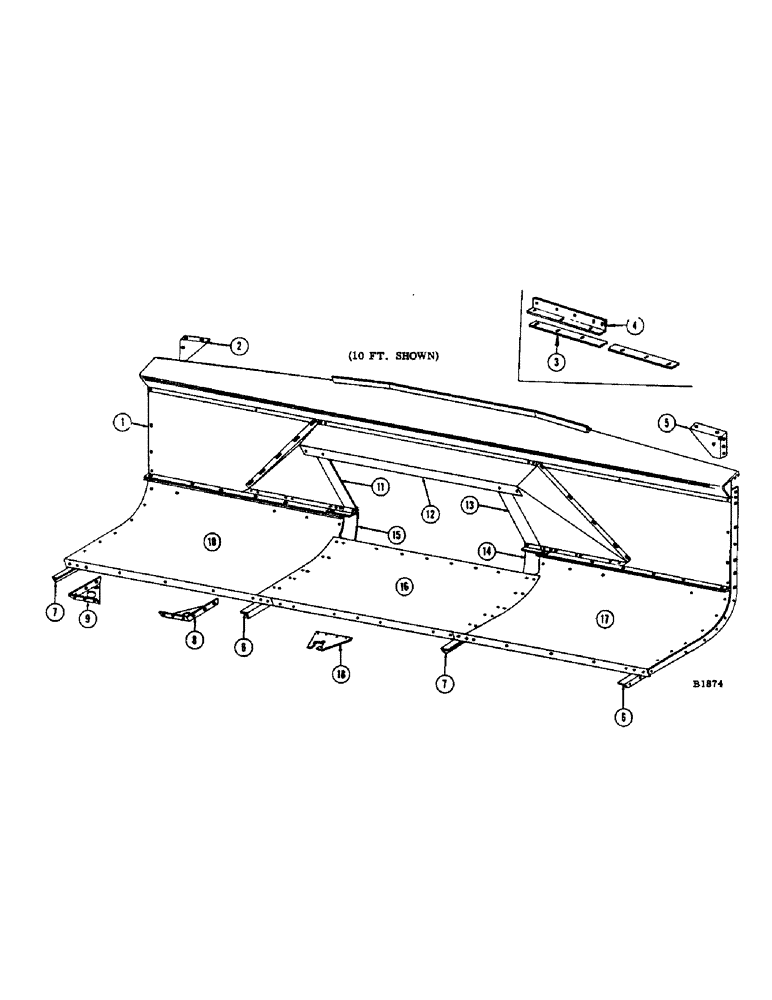

Запчасти Case IH 960 (054) - AUGER TROUGH (58) - ATTACHMENTS/HEADERS

1

F83247

SHEET - header top and back (10 ft.)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) Nut (25-104)

6шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) L.W. (92-4)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

2шт.

F83248

SHEET - header top and back (13 ft.)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) Nut (25-104)

6шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) L.W. (92-4)

4шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

2шт.

F83249

SHEET - top and back, 13 ft. (960 special)

1шт.

BOLT - 1/4" x 1/2" rd. shank sq. nk. (12-48) Nut (25-104)

3шт.

BOLT - 1/4" x 5/8" rd. shank sq. nk. (12-410) Nut (25-104)

4шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) Nut (25-115)

2шт.

BOLT - 3/8" x 3/4" rd. shank sq. nk. (12-612) Nut (25-106)

1шт.

F94444

SHEET - header top and back (14' hvy. duty) 960 special

1шт.

F83062

SHEET - header top and back (14 ft.)

1шт.

BOLT - 1/4" x 1/2" rd. shank sq. nk. (12-48) Nut (25-104)

3шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) Nut (25-118)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) Nut (25-115)

1шт.

BOLT - 3/8" x 3/4" rd. shank sq. nk. (12-612) Nut (25-106)

1шт.

F91923

SHEET - header, top and back (16 ft.)

1шт.

BOLT - 1/4" x 1/2" tr. hd. N.C. mach. (77-48) Fl. wshr. (195-18)

18шт.

LOCKWASHER - 1/4" (92-4) Nut (25-104)

18шт.

2

F17541

GUSSET - reel support arm, R.H. (Grain combine)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

1шт.

BOLT - 5/16" x 3/4" rd. shank sq. nk. (12-512) Nut (25-105)

2шт.

F22622

PLOW BOLT

GUSSET - reel support arm, R.H. (16' header)

1шт.

F18970

GUSSET - reel support arm, R.H. (960 special)

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (12-520) Nut (25-105)

2шт.

WASHER - 5/16" flat (95-5)

4шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-516) Nut (25-104)

1шт.

3

F17537

STRIPPER - auger adjustment, R.H. & L.H. (Spec. 13' hdr.)

2шт.

F53513

STRIPPER - auger adjustment, R.H. & L.H. (14 ft. header)

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (77-410) Nut (25-104)

10шт.

SCREW - 1/4" x 3/4" N.C. mach. (77-412) Nut (25-104)

2шт.

SCREW - 1/4" x 1" N.C. mach. (77-416) Nut (25-104)

2шт.

4

F20323

ANGLE - L.H. reinforcement, auger stripper (960 special)

1шт.

F20324

ANGLE - R.H. reinforcement, auger stripper (960 special)

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (75-410) Nut (25-104)

3шт.

SCREW - 1/4" x 3/4" N.C. mach. (75-412) Nut (25-104)

1шт.

5

F17540

GUSSET - reel support arm, L.H. (Grain combine)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

1шт.

BOLT - 5/16" x 3/4" rd. shank sq. nk. (12-512) Nut (25-105)

2шт.

F22623

PLOW BOLT

GUSSET - reel support arm, L.H. (16' header)

1шт.

F18967

GUSSET - reel support arm, L.H. (960 special)

1шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-516) Nut (25-104)

1шт.

BOLT - 5/16" x 1-1/4" rd. shank sq. nk. (12-520) Nut (25-105)

2шт.

WASHER - 5/16" flat (95-5)

4шт.

6

F15720

RAIL - hook, 2-10', 3-13', 14' and 16' headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) Nut (25-116)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106)

1шт.

7

F15719

RAIL - hook, 2-10', 3-13', 14' and 16' headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

1шт.

BOLT - 3/8" x 3/8" rhd. sq. nk. (11-612) Nut (25-106)

1шт.

8

F15766

PLATE - L.H., 3-10', 4-13', 14' and 16' headers

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) Nut (25-105)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) Nut (25-115)

1шт.

9

F15765

PLATE - R.H., 3-10', 4-13', 14' and 16' headers

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) Nut (25-104)

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) Nut (25-116)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106)

1шт.

10

F19671

FLOOR - R.H., auger trough (10 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

3шт.

F19677

FLOOR - R.H., auger trough (13 ft.)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

5шт.

F19932

FLANGE BOLT

FLOOR - R.H., auger trough (14 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) and Nut (25-114) L.W. (92-4) Fl. wshr. (95-4)

4шт.

F22461

FLOOR - R.H., auger trough (16 ft.)

1шт.

11

F20237

SHIELD - upper, R.H.

1шт.

BOLT - 1/4" x 5/8" N.C. mach. (173-207) Nut (129-101)

3шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) Nut (129-125)

1шт.

F22462

FLOOR - L.H., auger trough (16 ft.)

1шт.

12

F81958

SHIELD - feed rake

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) Nut (25-104)

10шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (75-410) Nut (25-104)

8шт.

WASHER - 1/4" flat (95-4) L.W. (92-4)

16шт.

13

F20236

SHIELD - upper, L.H. Same hardware as ref. 11

1шт.

14

F20234

SHIELD - lower, L.H.

1шт.

15

F20235

SHIELD - lower, R.H.

1шт.

SCREW - 1/4" x 3/4" N.C. truss hd. mach. (175-403) and Nut (129-101)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102) and L.W. (192-20) Fl. wshr. (195-521)

2шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) Nut (129-101) and L.W. (192-19) Fl. wshr. (195-518)

1шт.

16

F19670

FLOOR - center, auger trough

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) and Nut (25-104) L.W. (92-4) Fl. wshr. (95-4)

8шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

8шт.

17

F19672

FLOOR - L.H., auger trough (10 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hd. soc. cap (164-31) and Nut (25-114) L.W. (92-4) Fl. wshr. (25-114)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

3шт.

F19678

FLOOR - L.H., auger trough (13 ft.)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

5шт.

F19933

FLANGE BOLT

FLOOR - L.H., auger trough (14 ft.)

1шт.

SCREW - 1/4" x 3/4" N.C. fl. hed. soc. cap (164-31) and Nut (25-114) L.W. (92-4) Fl. wshr. (95-4)

4шт.

F22462

FLOOR - L.H. auger trough (16 ft.)

1шт.

18

F22471

SUPPORT - plate, center auger drive (16 ft.)

1шт.

F83325

SHELL - 10 ft. header, repair shells

1шт.

F83321

SHELL - 13 ft. header, repair shells

1шт.

F83326

SHELL - 13 ft. header (960 special), repair shells

1шт.

F83435

SHELL - 14 ft. header, repair shells

1шт.
