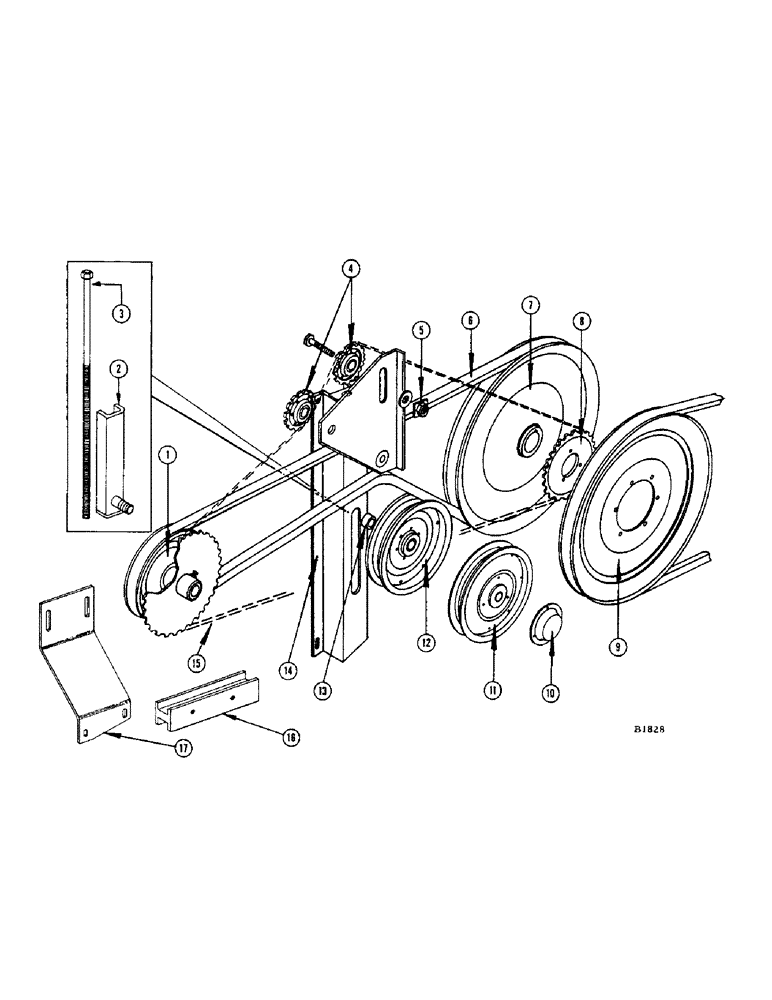

Запчасти Case IH 960 (052) - TIGHTENER - HEADER DRIVE AND UPPER FEEDER RAKE SHAFT (58) - ATTACHMENTS/HEADERS

1

F82903

SHEAVE AND SPROCKET - 6-3/4" O.D. and (48T) drives jackshaft and upper feed rake shaft (Grain combine)

1шт.

F81740

SHEAVE AND SPROCKET - 8" O.D. and (48T) drives jackshaft and upper feed rake shaft (960 special)

1шт.

2

F82506

BRACKET - adjusting, tightener sheave

1шт.

NUT - 5/8" N.F. jam (25-1510)

1шт.

3

F18486

DRAWBOLT

1шт.

NUT - 3/8" Tinnerman (131-133)

1шт.

4

F6078

SPROCKET ASSY.

SPROCKET - (17T) tightener, main header jackshaft

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) Nut (25-1110)

2шт.

WASHER - 5/8" flat (195-41)

6шт.

5

F75313

LOCKNUT - (5/8" Gripco) for 1 (14-1032) bolt of F6078 tightener sheave

1шт.

6

F19498

V-BELT

Drives Upper Feeder Rake Shaft, Grain Combine

1шт.

F18971

BELT

"V" BELT - drives upper feed rake shaft (960 special)

1шт.

7

F81743

SHEAVE - inside, drives upper feeder rake shaft

1шт.

KEY - "B" Woodruff (126-25)

1шт.

8

F17454

SPROCKET - (30T) upper feeder rake shaft drive

1шт.

BOLT - 3/8" x 2-1/2" N.F. hex. (14-640) Nut (25-116)

3шт.

F17959

SPROCKET - (24T) upper feeder rake shaft drive (Special - slow speed header)

1шт.

9

F81287

SHEAVE - header drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116)

6шт.

10

F19488

SHIELD - chain (960 special)

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (75-410) Nut (25-104)

3шт.

11

F19487

SHEAVE - tightener, upper feed rake shaft (960 special)

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (75-410) Nut (25-104)

3шт.

12

F6458

BEARING ASSY

SHEAVE - tightener, upper feeder rake shaft (Grain combine)

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex. (14-1036) L.W. (92-6) and Fl. wshr. (195-41)

1шт.

13

F18827

SPACER - tightener sheave

1шт.

14

F82505

BRACKET - idler, header drive chain (Grain combine)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

4шт.

WASHER - 5/16" flat (95-5)

2шт.

F83327

BRACKET - idler, header drive chain (960 special)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

4шт.

15

F18828

X

CHAIN - drives main header drive jackshaft (NSS - see page 3A)

1шт.

F20273

CHAIN - drives main header drive jackshaft (960 special) (NSS - see page 3A)

1шт.

16

F4358

GUIDE - header drive jackshaft chain (#8358001 and after)

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

195-21

WASHER,5/16"

- flat 5/16"

2шт.

17

F22934

SUPPORT - bracket, chain drive (#8358001 and after)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.
