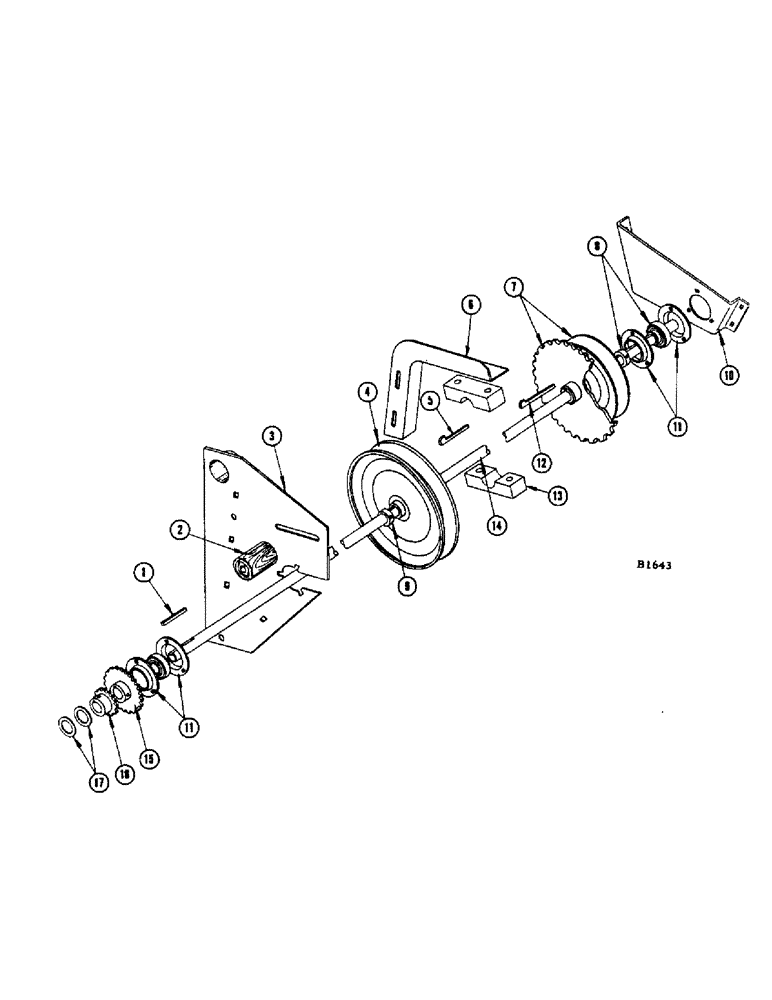

Запчасти Case IH 960 (050) - MAIN HEADER DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

O1106HT

KEY - reel drive tightener sprockets (Special)

1шт.

O5528N

KEY

- reel drive tightener sprockets (Grain)

1шт.

2

31621/2HT

BLOCK

IDLER - reel jackshaft drive

1шт.

BOLT - 5/16" x 3-1/4" rhd. sq. nk. (11-552) Nut (25-105) and L.W. (92-5) Fl. wshr. (95-5)

1шт.

3

F91934

BRACKET - L.H. outer (Grain) Replaces F83333 when exh.

1шт.

F83333

BRACKET - L.H. outer pivot (Grain) Replaced by F91934 when stocks are exhausted

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) L.W. (92-6)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

1шт.

F83329

BRACKET - L.H. outer pivot (960 special)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) Nut (25-104) L.W. (92-4)

1шт.

4

F81281

SHEAVE - sickle drive

1шт.

5

F17863

KEY - gib (1/4" x 2-1/2")

1шт.

6

F20993

BRACKET - support, center bearing (13 and 14 ft. headers)

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-108) Nut (129-101) and L.W. (192-19) Fl. wshr. (195-518)

2шт.

7

F82903

SHEAVE AND SPROCKET - 6-3/4" O.D. and (49T) drives jackshaft and upper feed rake shaft (Grain combine)

1шт.

F81740

SHEAVE AND SPROCKET - 8" O.D. and (49T) drives jackshaft and upper feed rake shaft (960 special)

1шт.

8

3074CSA

BALL BEARING

- jackshaft

2шт.

9

F62108

COLLAR

1шт.

10

F15750

BRACKET - inner support

1шт.

11

B18282

FLANGE

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

6шт.

12

F17864

KEY - gib (1/4" x 3")

1шт.

13

F4348

BEARING - center, header jackshaft (13 and 14 ft. headers)

2шт.

BOLT - 3/8" x 3-1/4" rhd. sq. nk. (11-317) Nut (129-103) and L.W. (192-21) Fl. wshr. (195-525)

2шт.

14

F16865

JACKSHAFT - (10 ft. header) Before #8358001

1шт.

F22661

PLOW BOLT

JACKSHAFT - (10 ft. header) #8358001 and after

1шт.

F19577

JACKSHAFT - (13 ft. header) Before #8358001

1шт.

F22662

PLOW BOLT

JACKSHAFT - (13 ft. header) #8358001 and after

1шт.

F19938

JACKSHAFT - (14 ft. header) Before #8358001

1шт.

F22663

PLOW BOLT

JACKSHAFT - (14 ft. header) #8358001 and after

1шт.

F22476

JACKSHAFT - (16 ft. header) Before #8358001

1шт.

F22664

PLOW BOLT

JACKSHAFT - (16 ft. header) #8358001 and after

1шт.

15

F81741

SPROCKET - (22T) auger (170 RPM)

1шт.

F81747

SPROCKET - (18T) auger (134 RPM)

1шт.

F81819

SPROCKET - (26T) auger (197 RPM)

1шт.

16

F82850

DRIVEN SPROCKET

SPROCKET - (22T) reel (28-45 RPM) Before #8358001

1шт.

F92664

DRIVEN SPROCKET

SPROCKET - (22T) reel (28-45 RPM) #8358001 and after (Exh. then use F89318)

1шт.

F89318

SPROCKET ASSY.

SPROCKET - reel (#8358001 and after) (Replaces F92664 when exh.)

1шт.

F82898

SPROCKET ASSY.

SPROCKET - (15T) reel (19-31 RPM) Before #8358001

1шт.

F92661

SPROCKET - (15T) reel (19-31 RPM) #8358001 and after (Exh. then use F89317)

1шт.

F89317

SPROCKET - reel (#8358001 and after) (Replaces F92661 when exh.)

1шт.

F82851

SPROCKET ASSY.

SPROCKET - (27T) pick-up drive Before #8358001

1шт.

F92665

DRIVEN SPROCKET

SPROCKET - (27T) pick-up drive (#8358001 and after) (Exh. then use F89316)

1шт.

F89316

SPROCKET ASSY.

SPROCKET - pick-up drive (#8358001 and after) (Replaces F92665 when exh.)

1шт.

17

F62073

WASHER

- jackshaft

2шт.
