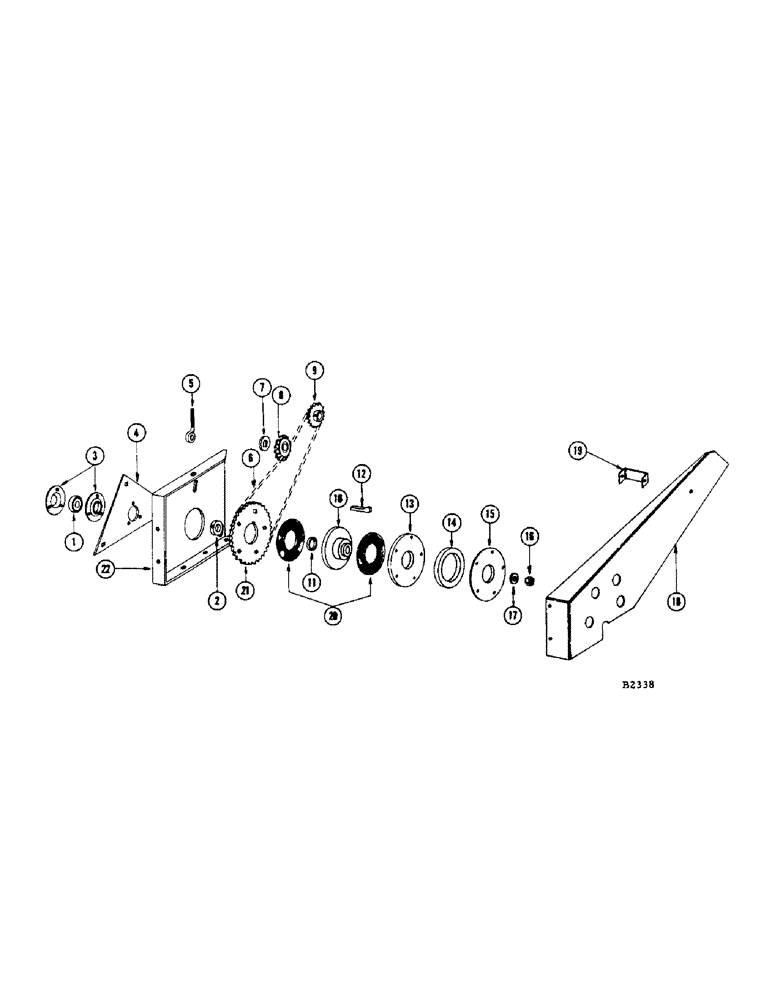

Запчасти Case IH 960 (048) - HEADER AUGER SLIP CLUTCH DRIVE (58) - ATTACHMENTS/HEADERS

1

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - auger shaft, L.H. end

1шт.

2

F62226

COLLAR

1шт.

3

F62225

FLANGE

2шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106)

3шт.

4

F15804

BRACKET - auger adjustment, L.H. end

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105) and Fl. Wshr. (195-21) L.W. (92-5)

2шт.

5

F11753

EYEBOLT - auger adjustment

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) Nut (25-105)

1шт.

6

F17450

X

CHAIN - header auger drive (NSS - see chain page)

1шт.

7

O2287CS

WASHER - for carr. bolt (11-1040) of F6078 idler

2шт.

8

F6078

SPROCKET ASSY.

SPROCKET - (17T) tightener, header auger drive chain

1шт.

BOLT - 5/8" x 2-1/4" rhd. sq. nk. (11-1040) Nut (25-1010)

1шт.

WASHER - 5/8" flat (95-10)

4шт.

9

F81741

SPROCKET - (22T) header auger, drive (170RPM)

1шт.

PIN - cotter 1/8" x 2" (132-56)

1шт.

F81747

SPROCKET - (18T) auger drive (134RPM)

1шт.

PIN - cotter 1/8" x 2" (132-56)

1шт.

F81819

SPROCKET - (26T) header auger, drive (197RPM)

1шт.

PIN - cotter 1/8" x 2" (132-56)

1шт.

10

F82072

HUB - auger drive

1шт.

11

F17923

BUSHING

1шт.

12

O6267HT

KEY

1шт.

13

F17495

PLATE - thrust

1шт.

14

F17496

SPRING - rubber

1шт.

15

F22250

PLATE

- pressure (Replaces F17494 when stocks are exhausted)

1шт.

F17494

PLATE

- pressure (Replaced by F22250 when stocks are exhausted)

1шт.

16

131-37

LOCK NUT,3/4"-16

STOP NUT - (3/4" Esna) for auger drive shaft

1шт.

17

95-12

WASHER,3/4"

- flat for auger drive shaft 3/4"

1шт.

18

F84283

SHIELD - auger drive

1шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2) L.W. (192-19)

3шт.

19

F21390

BRACKET - shield support

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-1) Nut (129-121)

2шт.

WASHER - 1/4" flat (195-102) L.W. (192-19)

2шт.

20

F82061

FACING - slip clutch (Set of 2)

1шт.

21

F17493

SPROCKET - (45T) header auger drive, driven

1шт.

BOLT - 5/16" x 2" N.F. rhd. sq. nk. (111-218)

5шт.

NUT - 5/16" - 24 Flex Loc (131-575)

5шт.

22

F20268

BRACKET - auger support, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115) and L.W. (92-5)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

2шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

2шт.
