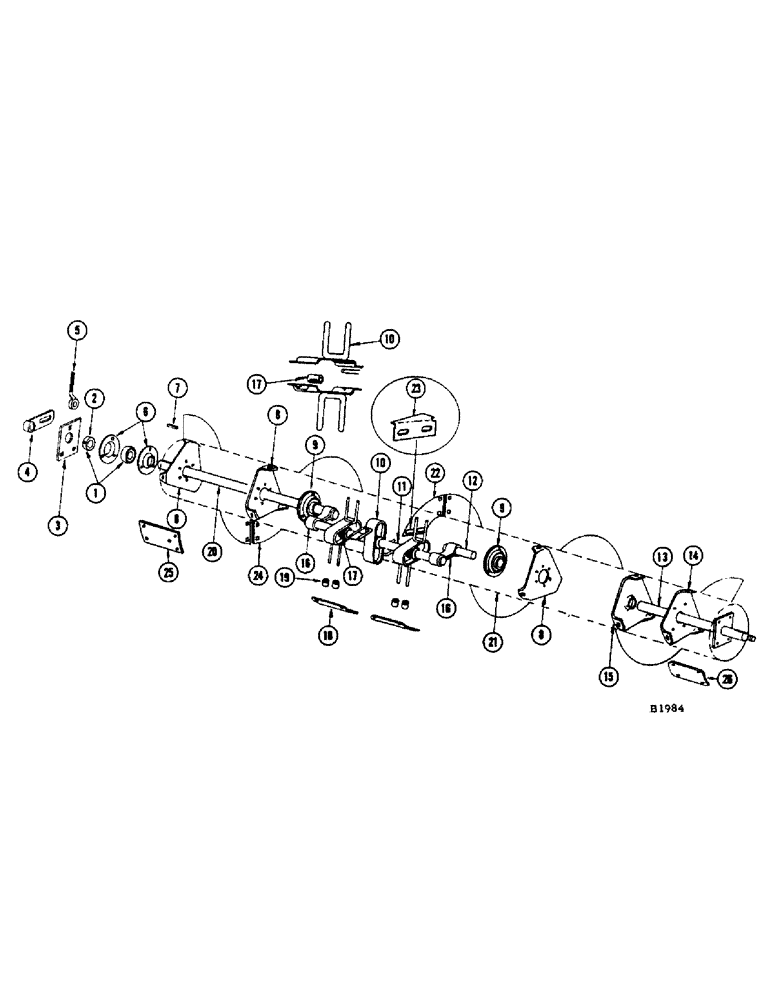

Запчасти Case IH 960 (046) - RETRACTABLE FINGER TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS

1

F90306

BEARING ASSY

BEARING - auger shaft, R.H. end (10 and 13 foot headers 12 and 16 finger)

1шт.

2

F62226

COLLAR

1шт.

2950CSA

HOUSING ASSY.

BEARING - auger shaft, R.H. end (14' headers - 12 and 16 finger)

1шт.

2950CSA

HOUSING ASSY.

BEARING - auger shaft, R.H. end (10 ft., 13 ft., and 14 ft. header - 20 finger)

1шт.

2950CSA

HOUSING ASSY.

BEARING - auger shaft, R.H. end (16 ft. header - 12 finger)

1шт.

O4233CS

COLLAR

1шт.

3

F15811

ADJUSTMENT - auger, R.H. end

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

1шт.

WASHER - 5/16" flat (195-21) Lockwasher (92-5)

2шт.

4

F81959

ARM - finger control

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

1шт.

WASHER - 5/16" flat (195-21) Lockwasher (92-5)

1шт.

5

F17753

EYEBOLT - auger adjustment

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) Nut (25-105)

1шт.

6

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

2шт.

7

F62223

KEY

- arm

1шт.

8

O5114CS

BULK HEAD - auger tube

3шт.

9

N5077

FLANGED BEARING

BEARING - inner, auger shaft

2шт.

BOLT - 5/16" x 3/4" sq. nk. (11-512) Nut (25-105)

6шт.

10

F86287

FINGER

ASSEMBLY - (6-12 finger, 8-16 finger, and 10-20 finger)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

1шт.

11

F6281

SHAFT

- finger assembly, 12 finger

1шт.

BOLT - 5/16" x 2" N.C. hex. (13-532) Nut (25-105) L.W. (92-5)

1шт.

F21183

SHAFT - finger assembly, 16 finger

1шт.

BOLT - 5/16" x 2" N.C. hex. (13-532) Nut (25-105) L.W. (92-5)

1шт.

F10956

SHAFT - finger assembly, 20 finger

1шт.

BOLT - 5/16" x 2" N.F. hex. (14-532) Nut (25-115)

1шт.

12

O4241CS

SHAFT - stub

1шт.

BOLT - 5/16" x 2" N.C. hex. (13-532) Nut (25-105) L.W. (92-5)

1шт.

13

F92667

SHAFT - auger drive, w/bulkheads (Special & 16' headers)

1шт.

13

F83176

SHAFT - auger drive (Grain)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

4шт.

NUT - 3/4" Esna stop (131-37) Flat washer (95-12)

1шт.

14

F18442

BULK HEAD - auger tube, L.H. end (Grain)

1шт.

SCREW - 3/8" x 3/4" N.C. rhd. mach. (75-612) Nut (25-106)

9шт.

15

F18441

HEAD

BULKHEAD - auger drive shaft support (Grain)

1шт.

SCREW - 3/8" x 3/4" N.C. rhd. mach. (75-612) Nut (25-106)

6шт.

16

F7473

ARM

- crank, finger pivot

4шт.

BOLT - 5/16" x 2" N.C. hex. (14-532) Nut (25-105) L.W. (92-5)

2шт.

17

F11606

BUSHING

SPOOL - (Neoprene) retractable finger

3шт.

18

F76158

LARGE PLATE

COVER - finger guide

6шт.

19

F6658

BUSHING

12шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348) and speed nut (131-136)

24шт.

20

F18443

SHAFT - finger control, 10 ft. - 12 finger

1шт.

F21184

SHAFT - finger control, 10 ft. - 16 finger

1шт.

F22519

SHAFT - finger control, 10 ft. - 20 finger

1шт.

F18444

SHAFT - finger control, 13 ft. - 12 finger

1шт.

F21185

SHAFT - finger control, 13 ft. - 16 finger

1шт.

F22520

SHAFT - finger control, 13 ft. - 20 finger

1шт.

F20052

SHAFT - finger control, 14 ft. - 12 finger

1шт.

F21186

SHAFT - finger control, 14 ft. - 16 finger

1шт.

F22599

SHAFT - finger control, 14 ft. - 20 finger

1шт.

F22518

SHAFT - finger control, 16 ft. - 12 finger

1шт.

F22672

PLOW BOLT

SHAFT - finger control, 16 ft. - 20 finger

1шт.

21

F82515M

AUGER - header, 10 ft. - 12 finger (Machinery item)

1шт.

F83099

TUBE - with flighting, 10 ft. - 12 finger

1шт.

F84062M

AUGER - header, 10 ft. - 16 finger (Machinery item)

1шт.

F84066

TUBE - with flighting, 10 ft. - 16 finger

1шт.

F91971M

AUGER - header, 10 ft. - 20 finger (Machinery item)

1шт.

F91975

TUBE - with flighting, 10 ft. - 20 finger

1шт.

F82520M

AUGER - header, 13 ft. - 12 finger (Machinery item)

1шт.

F83960

TUBE - with flighting, 13 ft. - 12 finger

1шт.

F84063M

AUGER - header, 13 ft. - 16 finger (Machinery item)

1шт.

F84067

TUBE - with flighting, 13 ft. - 16 finger

1шт.

F91972M

AUGER - header, 13 ft. - 20 finger (Machinery item)

1шт.

F91977

TUBE - with flighting, 13 ft. - 20 finger

1шт.

F83959M

AUGER - header, 13 ft. - 12 finger heavy duty 960 special

1шт.

F92655M

AUGER - header, 13 ft. - 12 finger heavy duty 960 special (Machinery item) #8358001 and after

1шт.

F83960

TUBE - with flighting 13 ft. - 12 finger

1шт.

F83064M

AUGER - header, 14 ft. - 12 finger (Machinery item)

1шт.

F83172

TUBE - with flighting, 14 ft. - 12 finger

1шт.

F94445M

AUGER - header, 14 ft. - 12 finger heavy duty 960 special (Machinery item)

1шт.

F94455

TUBE - with flighting, 14 ft. - 12 finger

1шт.

F84064M

AUGER - header, 14 ft. - 16 finger (Machinery item)

1шт.

F91973M

AUGER - header, 14 ft. - 20 finger (Machinery item)

1шт.

F91976

TUBE - with flighting 14 ft. - 20 finger

1шт.

F91932M

AUGER - header, 16 ft. - 12 finger (Machinery item)

1шт.

F91970

TUBE - with flighting, 16 ft. - 12 finger

1шт.

F92658M

AUGER - header, 16 ft. - 20 finger (Machinery item)

1шт.

22

F11522

EXTENSION - flight, L.H. spiral, flight extension

1шт.

WASHER - 5/16" flat (195-103) Lockwasher (192-20), flight extension

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-215) Nut (129-102), flight extension

2шт.

23

F11521

CLIP - angle, flight extension

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-215) Nut (129-102), flight extension

2шт.

WASHER - 5/16" flat (195-103) Lockwasher (192-20), flight extension

2шт.

24

F11523

EXTENSION - flight, R.H. spiral, flight extension

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-215) Nut (129-102), flight extension

2шт.

WASHER - 5/16" flat (195-103) Lockwasher (192-20), flight extension

2шт.

25

F11520

PLATE - cover, flight extension

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-215), flight extension

8шт.

NUT - 5/16" N.C. hex. (129-102) Lockwasher (192-20), flight extension

8шт.

26

F9225

DOOR - inspection, flight extension

2шт.
