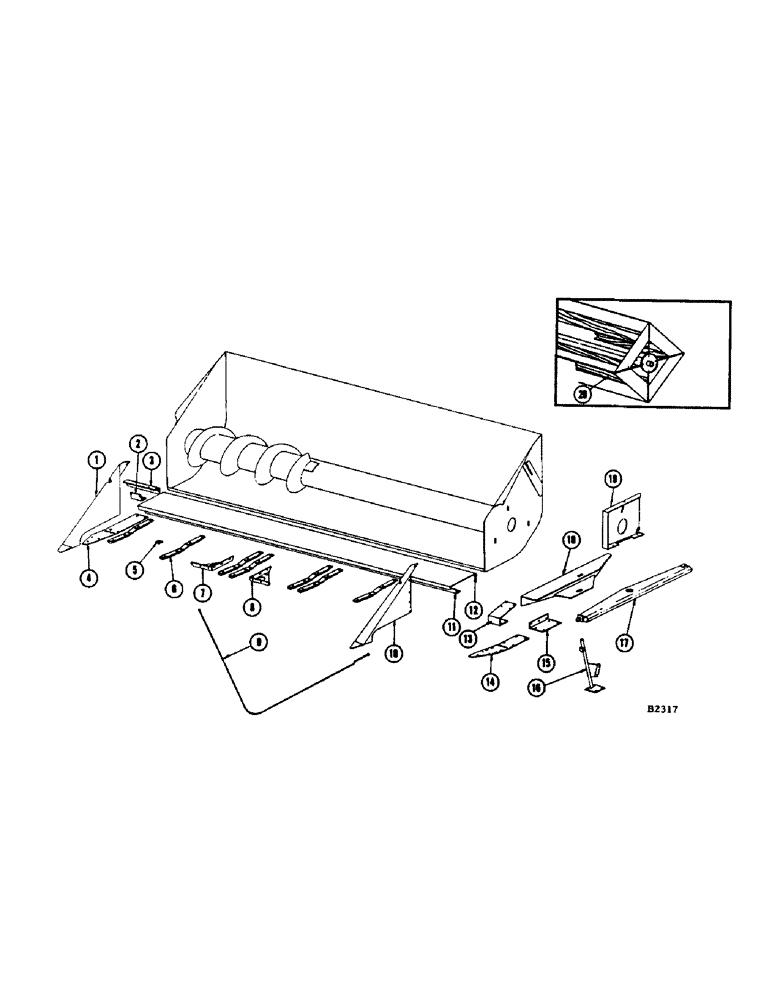

Запчасти Case IH 960 (044) - SORGHUM ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F83049

POINT - divider, R.H. (Before #8334601)

1шт.

F94079

POINT - divider, R.H. (#8334601 and after)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123)

2шт.

2

F19849

BRACKET - support, R.H. divider point shoe

1шт.

3

F19854

BRACKET - reel support, R.H.

1шт.

4

F19846

SUPPORT - divider point shoe, R.H.

1шт.

5

F19857

SPACER - angle (10-10', 14-13', 14' and 16')

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (129-103)

1шт.

6

F17661

ANGLE - support (5-10', 7-13', 14' and 16')

1шт.

7

F15766

PLATE - cutter bar reinf. L.H. (3-10', 4-13', 14' and 16')

1шт.

8

F15765

PLATE - cutter bar reinf., R.H. (3-10', 4-13', 14' and 16')

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) Nut (129-103)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-103)

1шт.

WASHER - 3/8" plain (195-104)

1шт.

9

F19848

RING - divider point

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

2шт.

10

F83048

POINT - divider, L.H. (Before #8334601)

1шт.

F94078

POINT - divider, L.H. (#8334601 and after)

1шт.

11

F16872

REINFORCEMENT - 10 ft. cutter bar rail

1шт.

F17546

REINFORCEMENT - 13 ft. cutter bar rail

1шт.

F19935

REINFORCEMENT - 14 ft. cutter bar rail

1шт.

12

F17664

EXTENSION - auger trough floor - 10 ft. header

1шт.

F17665

EXTENSION - auger trough floor - 13 ft. header

1шт.

F20064

EXTENSION - auger trough floor - 14 ft. header

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102)

1шт.

13

F17878

REINFORCEMENT - divider shoe, L.H. (Before #8334601)

1шт.

F53337

REINFORCEMENT - divider shoe, L.H. (#8334601 and after)

1шт.

14

F19845

SUPPORT - divider point shoe, L.H.

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102)

4шт.

15

F19847

ANGLE - support, L.H. divider point

1шт.

16

F81875

SUPPORT - reel, L.H.

1шт.

17

F83047

SWAYBAR - sickle drive (Before #8334601)

1шт.

F94042

SWAYBAR - sickle drive (#8334601 and after)

1шт.

F18851

BUSHING

- rubber

1шт.

F18852

RUBBER BUSHING

PIVOT - center

2шт.

F18853

SPACER

- center

1шт.

F8370

BALL

- sway bar

1шт.

BOLT - 7/8" x 7" N.C. hex. (15-14112) Nut (129-109)

1шт.

NUT - 7/8" N.C. hex. jam (25-1414) Fl. washer (195-549)

1шт.

O3885A

WASHER

-

2шт.

18

F81871

PLATE - sway bar support

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Dbl. nut (129-122)

4шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

7шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) Nut (129-102)

5шт.

WASHER - 5/16" flat (194-103)

2шт.

19

F17641

BRACKET - auger support, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

4шт.

20

F4327

BAT - reel, 10 ft. header

4шт.

F4335

BAT - reel, 13 ft. header

4шт.

F4343

BAT - reel, 14 ft. header

4шт.
