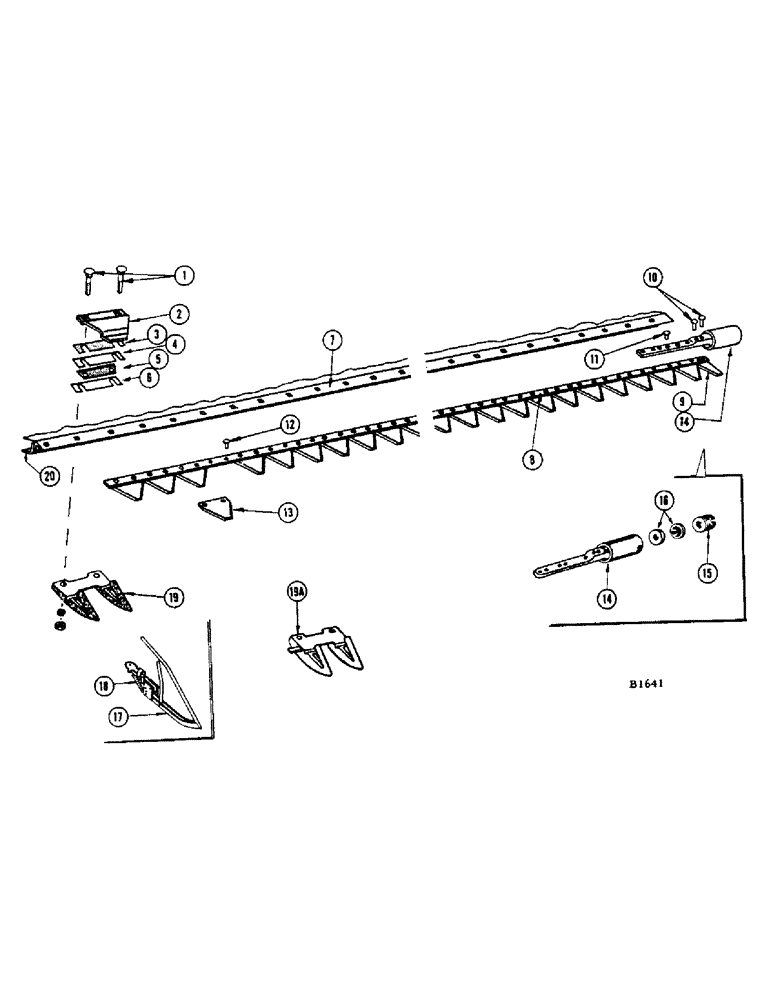

Запчасти Case IH 960 (042) - SICKLE AND CUTTER BAR, BEFORE NUMBER 8334601 (58) - ATTACHMENTS/HEADERS

1

F76562

BOLT - sickle guard (3/8" x 1-1/2" rhd. sq. nk. bolt w/nut and lockwasher) Pkg. 25 per box

1шт.

2

F8356

CLIP

- hold down (10-10 ft., 13-13 ft. and 14-14 ft. header)

1шт.

3

E3354S

SHIM - (20-10 ft., 26-13 ft. and 28-14 ft. header)

1шт.

4

F8355

SHIM - (10-10 ft., 13-13 ft. and 14-14 ft. header)

1шт.

5

TF7098

PLATE - chaffing (10-10 ft., 13-13 ft., 14-14 ft. header)

1шт.

6

F9392

SHIM - (10-10 ft., 13-13 ft. and 14-14 ft. header)

1шт.

7

F16871

RAIL - cutter bar (10 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

9шт.

F17545

RAIL - cutter bar (13 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

13шт.

F19934

FLANGE BOLT

RAIL - cutter bar (14 ft. sickle)

1шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) Nut (25-105)

15шт.

8

F82508

KNIFE ASSY

SICKLE ASSEMBLY - 10 ft. (w/F11304 sections) (See F88044)

1шт.

F82517

KNIFE ASSY

SICKLE ASSEMBLY - 13 ft. (w/F11304 sections) (See F88046)

1шт.

F83063

KNIFE ASSY

SICKLE ASSEMBLY - 14 ft. (w/F11304 sections) (See F88047)

1шт.

9

F9956

PLATE

- filler, L.H. end

1шт.

10

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- 1/4" x 1-1/8" rhd., sickle head

2шт.

11

Z1716

RIVET

- #5-1/2 x 1" rhd. (1 lb. pkg.)

5шт.

12

Z1690

RIVET

- #5-1/2 x 9/16" rhd. (1 lb. pkg.)

1шт.

F86323

RIVET

- #5-1/2 x 5/8" spec. ctsk. hd. (1 lb. pkg.)

1шт.

13

F11304

KNIFE SECTION

SECTION - underserrated (40-10', 52-13', 56-14')

1шт.

14

F77330

HEAD

- sickle

1шт.

15

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

16

A57918

SEAT

BEARING

2шт.

F12506

SECTION - top serrated

1шт.

F88044

KNIFE ASSY

SICKLE ASSEMBLY - 10 ft. (w/F14437 sections)

1шт.

F88046

KNIFE ASSY

SICKLE ASSEMBLY - 13 ft. (w/F14437 sections)

1шт.

F88047

KNIFE ASSY

SICKLE ASSEMBLY - 14 ft. (w/F14437 sections)

1шт.

F14437

KNIFE SECTION

SECTION - underserrated - chrome plated. Also includes ref. 9, 12, 13, 14

1шт.

F14477

KNIFE SECTION

SECTION - top serrated - chrome plated

1шт.

T13492

RIVET

- #5-1/2 x 7/8" rhd. - plated (1 lb. pkg.) (For chrome sections)

1шт.

T13489

RIVET

- #5-1/2 x 9/16" rhd. - plated (1 lb. pkg.) (For chrome sections)

1шт.

17

F84171

GUARD - pickup, grain saving (Special)

1шт.

18

A30455

SPRING

1шт.

19

F3146

GUARD

- sickle, 19-10 ft., 25-13 ft. and 27-14 ft. header

1шт.

19a

F3147

GUARD

- sickle, L.H. end

1шт.

20

F16872

REINFORCEMENT - for 10 ft. cutter bar rail

1шт.

F17546

REINFORCEMENT - for 13 ft. cutter bar rail

1шт.

F19935

REINFORCEMENT - for 14 ft. cutter bar rail

1шт.
