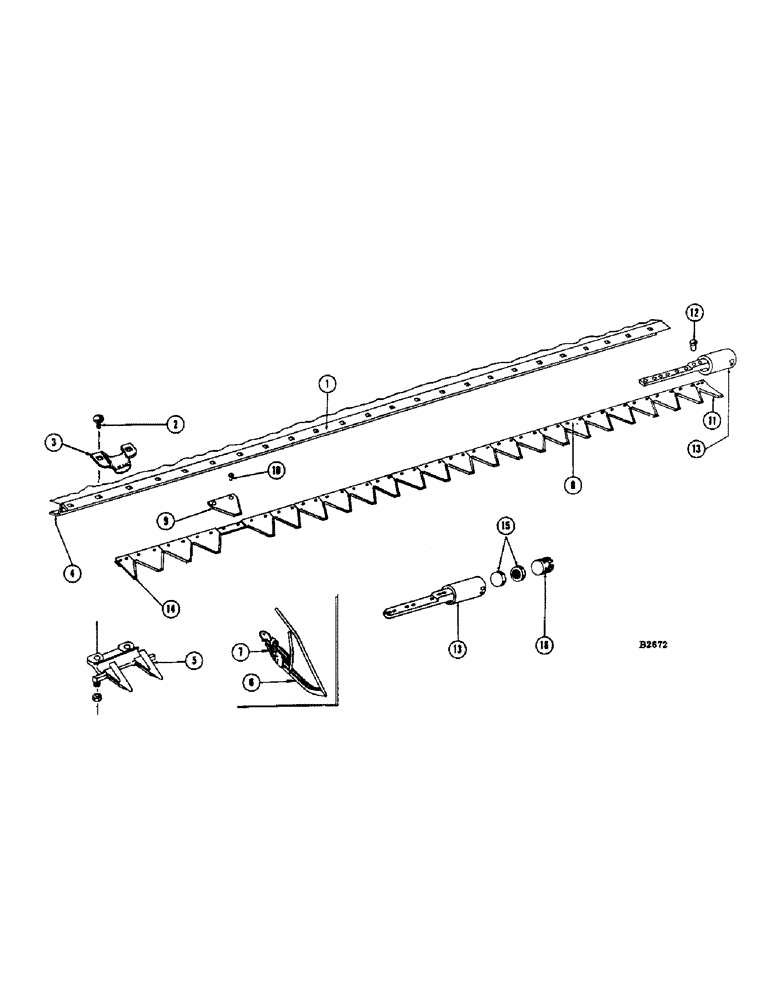

Запчасти Case IH 960 (041A) - SICKLE AND CUTTER BAR, NUMBER 8334601 AND AFTER (58) - ATTACHMENTS/HEADERS

1

F16871

RAIL - cutter bar (10 ft. sickle)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.

9шт.

F17545

RAIL - cutter bar (13 ft. sickle)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.

13шт.

F19934

FLANGE BOLT

RAIL - cutter bar (14 ft. sickle)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.

15шт.

F22463

RAIL - cutter bar (16 ft. sickle)

1шт.

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16" x 7/8" rhd. sq. nk.

17шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

2

111-304

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. #5 (For ref. 3 & 5)

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

3

F13511

CLIP

- hold down (10-10 ft., 13-13 ft., 14-14 ft., & 16-16 ft.)

1шт.

4

F16872

REINFORCEMENT - cutter bar rail (10 ft. sickle)

1шт.

F17546

REINFORCEMENT - cutter bar rail (13 ft. sickle)

1шт.

F19935

REINFORCEMENT - cutter bar rail (14 ft. sickle)

1шт.

F22464

REINFORCEMENT - cutter bar rail (16 ft. sickle)

1шт.

5

F3154

GUARD

- sickle (19-10 ft., 25-13 ft., 27-14., & 31-16 ft.)

1шт.

111-363

BOLT - 3/8" x 1" N.F. rhd. sq. nk., grade 5

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

F3153

GUARD - sickle, L.H. end

1шт.

111-363

BOLT - 3/8" x 1" N.F. rhd. sq. nk., grade 5

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

6

F84171

GUARD - pick-up, grain saving (special)

1шт.

7

A30455

SPRING

1шт.

8

F92623

KNIFE ASSY

SICKLE - 10 ft (w/MT944S sections) See F92622 or F96331

1шт.

F92615

KNIFE ASSY

SICKLE - 13 ft. (w/MT944S sections) See F92614 or F96332

1шт.

F92617

KNIFE ASSY

SICKLE - 14 ft. (w/MT944S sections) See F92616 or F96333

1шт.

F92619

KNIFE ASSY

SICKLE - 16 ft. (w/MT944S sections) See F92618 or F96334

1шт.

9

MT944S

KNIFE SECTION

SECTION - underserrated (39-10', 51-13', 55-14', 63-16')

1шт.

10

Z1690

RIVET

- #5-1/2 x 9/16" rhd. section to bar (1 lb pkg.)

1шт.

T13489

RIVET

- #5-1/2 x 9/16" rhd. chrome plated, section to bar (1 lb. pkg.)

1шт.

11

F13701

PLATE - filler

1шт.

47-418

RIVET - 1/4" x 1-1/8" flat hd., filler, Serial Range: plate-head

2шт.

12

Z1716

RIVET

- #5-1/2 x 1" rhd., sickle head to bar (1 lb. pkg.)

1шт.

T13492

RIVET

- #5-1/2 x 7/8" rhd. chrome plated, sickle head to bar (1 lb. pkg.)

5шт.

13

F77330

HEAD

- sickle

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str.

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

14

F22513

CUTTER BAR

HALF SECTION - R.H. end

1шт.

F59129

HALF SECTION - R.H. (Chrome plated)

1шт.

15

A57918

SEAT

BEARING - Pitman socket (1 each side of head)

2шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, Pitman

1шт.

F92622

X

SICKLE - 10 ft. (w/T13010 sections)

1шт.

F92614

KNIFE ASSY

SICKLE - 13 ft. (w/T13010 sections)

1шт.

F92616

SICKLE - 14 ft. (w/T13010 sections)

1шт.

F92618

TOOL

SICKLE - 16 ft. (w/T13010 sections)

1шт.

T13010

KNIFE SECTION

SECTION - underserrated, chrome plated (Special)

1шт.

F96331

SICKLE - 10 ft. (w/O14295S sections) See F92622 & F92623

1шт.

F96332

SICKLE - 13 ft. (w/O14295S sections)

1шт.

F96333

SICKLE - 14 ft. (w/O14295S sections)

1шт.

F96334

SICKLE - 16 ft. (w/O14295S sections)

1шт.

O14295S

KNIFE SECTION

SECTION - top serrated (39-10', 51-13', 55-14', 63-16')

1шт.

F59106

KNIFE SECTION

SECTION - top serrated, chrome plated (39-10', 51-13', 55-14', 60-16')

1шт.

T13009

KNIFE SECTION

SECTION - smooth, chrome plated (Special)

1шт.
