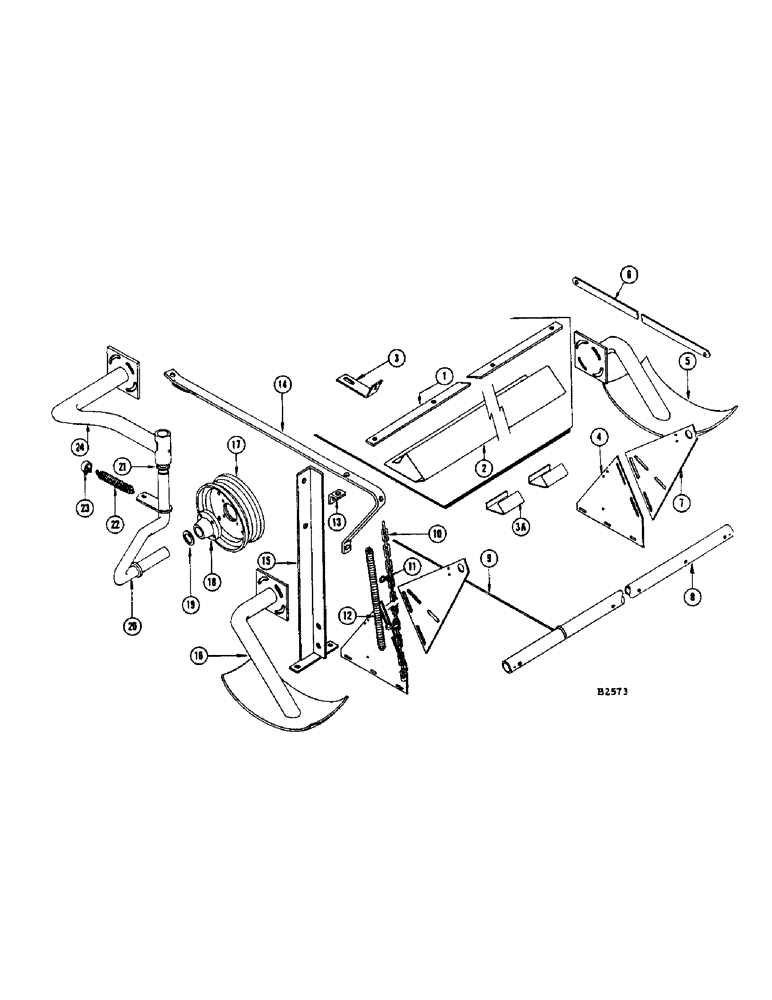

Запчасти Case IH 960 (036) - PICKUP SUPPORT - 5 BELT, DRAPER PICKUP ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F22274

WIPER - finger

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (111-101) Nut (129-101)

26шт.

WASHER - 1/4" flat (195-102) L.W. (192-19)

26шт.

2

F14816

SHIELD - sickle guard (Replaces F22273 when exh.)

2шт.

F22273

SHIELD - sickle guard (Replaced by F14816 when exh.)

2шт.

3

F14802

CLIP - finger wiper shield (Replaces F12150 when exh.)

4шт.

3a

F12150

SUPPORT - sickle guard shield F22273 (Replaces by F14802)

4шт.

4

F9631

BRACKET - lower, windguard support

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

6шт.

LOCKWASHER - 5/16" (192-20) Fl wshr. (195-103)

6шт.

5

F77372

RUNNER - L.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) Fl. wshr. (95-6)

4шт.

6

F22271

BRACE - short, mounting angles

1шт.

F22272

BRACE - long, mounting angles

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

1шт.

7

F9981

BRACKET - upper, windguard support

2шт.

BOLT - 7/16" x 2-1/4" N.F. hex. (114-304) Dbl. nut (129-124)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

4шт.

WASHER - 5/16" flat (195-103)

8шт.

8

F22283

PIPE - windguard

1шт.

BOLT - 7/16" x 4" N.C. tap (123-401)

2шт.

LOCKNUT - 7/16" N.C. Gripco jam (131-353)

4шт.

PIN - cotter 3/16" x 2" (132-99)

2шт.

9

F9639

TINE - windguard

19шт.

10

F84972

CHAIN (AG)

CHAIN - support

2шт.

11

F20641

"S" HOOK

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Fl. wshr. (195-103)

2шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (113-104) Fl. wshr. (195-103)

2шт.

NUT - 5/16" N.C. hex. (129-102)

8шт.

12

F22285

SPRING - for support arms

2шт.

13

F17683

CLIP - mounting angle support

2шт.

BOLT - 5/16" x 3/4" (114-102) Nut (129-102)

4шт.

14

F17679

SUPPORT - mounting angles

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

4шт.

15

F86662

ANGLE - mounting, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

2шт.

WASHER - 3/8" flat (195-104) L.W. (192-20)

2шт.

F86661

ANGLE - mounting, L.H.

1шт.

16

F77373

RUNNER - R.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) Fl. wshr. (95-6)

4шт.

17

F11478

WHEEL - gauge, 2 disc halves for 12 x 3.50 semi-pneumatic tire

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

8шт.

18

F1355

HUB - gauge wheel

2шт.

FITTING - grease 1/8" str. (219-1)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) Nut (25-115)

8шт.

19

A28764

WASHER - axle

6шт.

20

F86973

AXLE - gauge wheel

2шт.

PIN - cotter 1/4" x 1-3/4" (132-307)

4шт.

21

B18275

WASHER

- axle

4шт.

22

O2818BF

SPRING - gauge wheel axle

2шт.

23

F12970

CLAMP - spring

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) Dbl. nut (25-114)

2шт.

24

F78892

ARM - R.H. support, gauge wheel

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.

F78891

ARM - L.H. support, gauge wheel

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.
