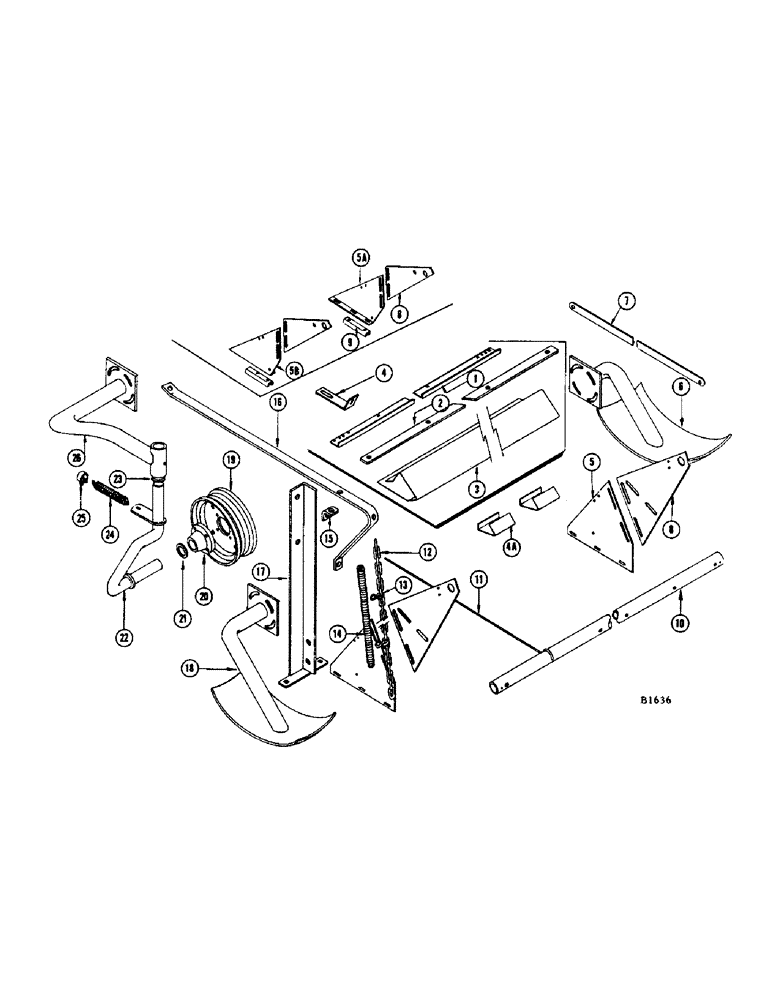

Запчасти Case IH 960 (034) - PICKUP SUPPORT - 4 BELT, DRAPER PICKUP ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F14136

PLATE - filler (Used to assemble wiper when sickle guards are not installed) Replaces F22328 when exh.

2шт.

F22328

PLATE - filler (Replaced by F14136 when exh.)

2шт.

2

F22274

WIPER - finger (Replaces F9643 when exh.)

2шт.

F9643

WIPER - finger (Replaced by F22274 when exh.)

2шт.

F9642

SHIELD - sickle guard (Replaced by F14816 when exh.)

2шт.

3

F14816

SHIELD - sickle guard (Replaces F9642 when exh.)

2шт.

4

F14802

CLIP - finger wiper shield (Replaces F12150 when exh.)

4шт.

4a

F12150

SUPPORT - sickle guard shield (Replaced by F14802)

4шт.

5

F9631

BRACKET - lower windguard support (Replaces F16731 and F17676 when stocks are exhausted)

2шт.

5a

F16731

BRACKET - L.H. lower windguard support (Replaced by F9631)

1шт.

5b

F17676

BRACKET - R.H. lower windguard support (Replaced by F9631)

1шт.

6

F77372

RUNNER - L.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) Fl. wshr. (96-5)

4шт.

7

F12553

BRACE - mounting angles

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

2шт.

8

F9981

BRACKET - upper, windguard support

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

4шт.

WASHER - 5/8" flat (195-103)

8шт.

BOLT - 7/16" x 2-1/4" N.F. hex. (114-304) dbl. nut (129-124)

2шт.

9

F17680

REINFORCEMENT - used only with F16731 and F17676

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Nut (129-122)

4шт.

WASHER - 5/16" flat (195-103) L.W. (192-20)

4шт.

10

F9638

PIPE - windguard (Replaces F17671 when stocks are exhausted)

1шт.

BOLT - 7/16" x 4" N.C. hex. (13-321) dbl. nut (131-353)

2шт.

PIN - cotter 3/16" x 2" (132-99)

2шт.

F17671

PIPE - windguard (Replaced by F9638 when stocks exh.)

1шт.

11

F9639

TINE - windguard

15шт.

12

F84972

CHAIN (AG)

CHAIN - support (Replaces F83797 when exh.)

2шт.

F83797

CHAIN (AG)

CHAIN - support (Replaced by F84972 when exh.)

2шт.

13

F20641

"S" HOOK

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) Fl. wshr. (195-103)

2шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (113-104) Fl. wshr. (195-103)

2шт.

NUT - 5/16" N.C. hex. (129-102)

8шт.

14

F22285

SPRING - for support arms (Replaces F12558 when exh.)

2шт.

F12558

SPRING - for support arms (Replaced by F22285)

2шт.

15

F17683

CLIP - mounting angle support

2шт.

16

F17679

SUPPORT - mounting angles

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122)

4шт.

17

F86662

ANGLE - mounting, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) Nut (129-122) L.W.

2шт.

WASHER - 3/8" flat (195-104) L.W. (192-20)

2шт.

F86661

ANGLE - monting, L.H.

1шт.

18

F77373

RUNNER - R.H.

1шт.

19

F11478

WHEEL - gauge, 2-disc halves for 12 x 3.50 semi-pneumatic tire

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) Nut (25-115)

8шт.

20

F1355

HUB - gauge wheel

2шт.

FITTING - grease 1/8" str. (219-1)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) Nut (25-115)

8шт.

21

A28764

WASHER - axle

6шт.

22

F86973

AXLE - gauge wheel

2шт.

PIN - cotter 1/4" x 1-3/4" (132-307)

4шт.

23

B18275

WASHER

- axle

4шт.

24

O2818BF

SPRING - gauge wheel axle

2шт.

25

F12970

CLAMP - spring

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) dbl. nut (25-114)

2шт.

26

F78892

ARM - R.H. support, gauge wheel

1шт.

F78891

ARM - L.H. support, gauge wheel

1шт.
