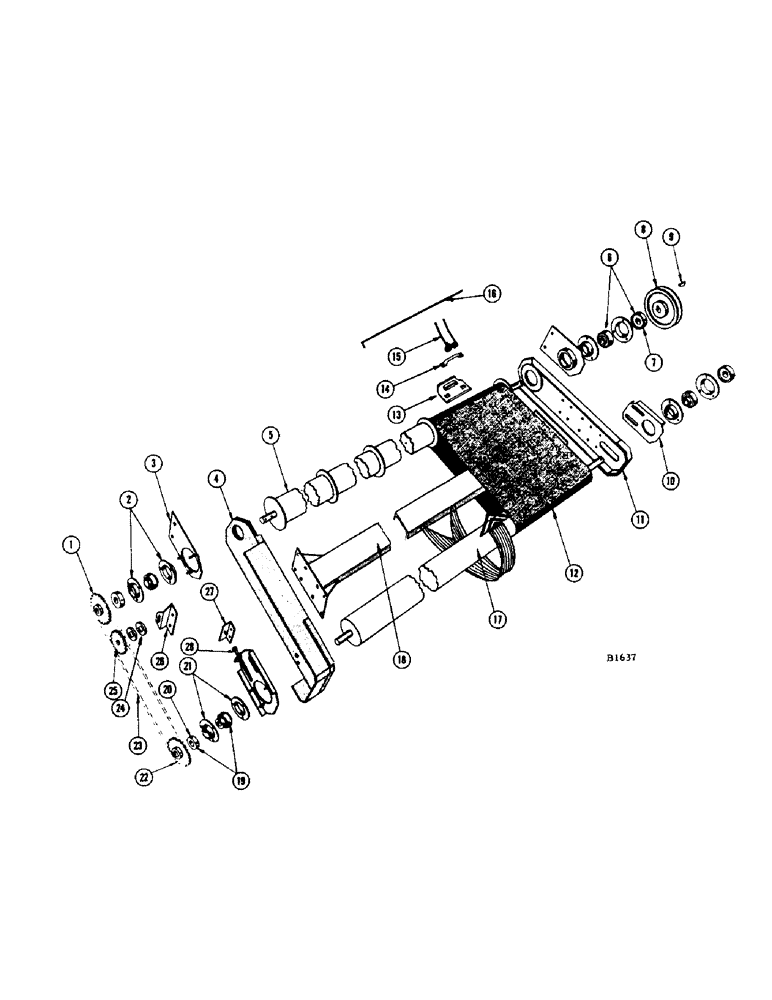

Запчасти Case IH 960 (030) - CONVEYOR FRONT AND REAR ROLLERS, DRAPER PICKUP ATTACHMENT, 4 BELT (58) - ATTACHMENTS/HEADERS

1

F77273

SPROCKET - (10T) rear conveyor roller drive (R.H. end)

1шт.

PIN - Driv-Loc type "A" 1/4" x 1-3/4" (135-78)

1шт.

2

B18282

FLANGE

- for rear conveyor roller bearing

4шт.

3

F77175

BRACKET - bearing, for rear conveyor tube

2шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

6шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) Nut (129-124)

4шт.

4

F87793

SHEET - end, R.H. (Replaces F82679 when stocks exh.)

1шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

3шт.

F82679

SHEET - end, R.H. conveyor (Replaced by F87793)

1шт.

5

F77171

ROLLER - rear, conveyor

1шт.

6

3074CSA

BALL BEARING

- rear, conveyor roller shaft

2шт.

7

F62108

COLLAR

1шт.

8

F81889

SHEAVE - rear roller drive, driven (L.H. end)

1шт.

PIN - Driv-Loc type "A" 1/4" x 1-3/4" (135-360)

1шт.

9

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 8 sprocket to ref. 5 roller #A, 1/4" x 7/8", HT

1шт.

10

F77369

SCREW

PLATE - bearing, front roller adjusting

2шт.

NUT - 5/16" N.C. hex. (25-115) L.W. (92-5)

6шт.

11

F77368

SHEET - end, L.H. (Replaces F82678 when stocks exh.)

1шт.

NUT - 5/16" N.F. hex. (25-115) L.W. (92-5) wshr. (95-5)

4шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

3шт.

F82678

SHEET - end, L.H. conveyor (Replaced by F77368)

1шт.

12

F79158

CONVEYOR BELT

BELT, CONVEYOR, (36 fingers) See F91853. When replacing one F79158, use F84968. When replacing all four F79158, use four F91853

1шт.

13

F10861

CLIP - hold down, spring finger

36шт.

BOLT- 1/4" x 3/4" N.C. fl. hd. ctsk. (121-5)

72шт.

NUT - (25-104) L.W. (92-4)

72шт.

14

F15245

RETAINER - spring finger

36шт.

15

F15243

SPRING

FINGER - spring

36шт.

F78466

LACING SET - (Not shown)

1шт.

16

F21401

PIN - lacing

4шт.

F91853

BELT, CONVEYOR 57.13" L, (42 fingers), See F79158 57.13" L

4шт.

F10861

CLIP - hold down, spring finger

42шт.

F15245

RETAINER - spring finger

42шт.

F15243

SPRING

FINGER - spring

42шт.

F91854

LACING - set (Not shown)

1шт.

F22395

PIN - belt lacing

4шт.

17

F77269

ROLLER - front, conveyor

1шт.

18

F87811

TUBE - torque, cross brace (Replaces F81884 when exh.)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115)

2шт.

BOLT - 3/8" x 1-1/4" (111-354) Nut (129-123) and L.W.

8шт.

F81884

TUBE - torque, conveyor cross brace (Replaced by F87811)

1шт.

19

3074CSA

BALL BEARING

- front conveyor roller shaft

2шт.

20

F62108

COLLAR

1шт.

21

B18282

FLANGE

- for front conveyor roller drive bearing

4шт.

22

F77273

SPROCKET - (10T) front conveyor roller drive (R.H. end)

1шт.

PIN - Driv-Loc type "A" 1/4" x 1-3/4" (135-78)

1шт.

23

F8655

X

CHAIN - lower roller drive (NSS - see chain page)

1шт.

24

O2287CS

WASHER - tightener bracket bolt (111-601)

2шт.

25

F8659

SPROCKET - (11T) conveyor chain tightener

1шт.

26

F8658

BRACKET - tightener, conveyor chain drive

1шт.

BOLT - 5/8" x 2" N.C. rhd. sq. nk. (111-601) Nut (129-107)

1шт.

27

F77596

ANGLE - adjusting, for F9423 screw

2шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115)

4шт.

28

F9423

SCREW - adjusting, for ref. 10 bearing plate

2шт.
